1972 Yamaha SR433B (SR433B) Pump Gear Unit Diagram

← All diagrams

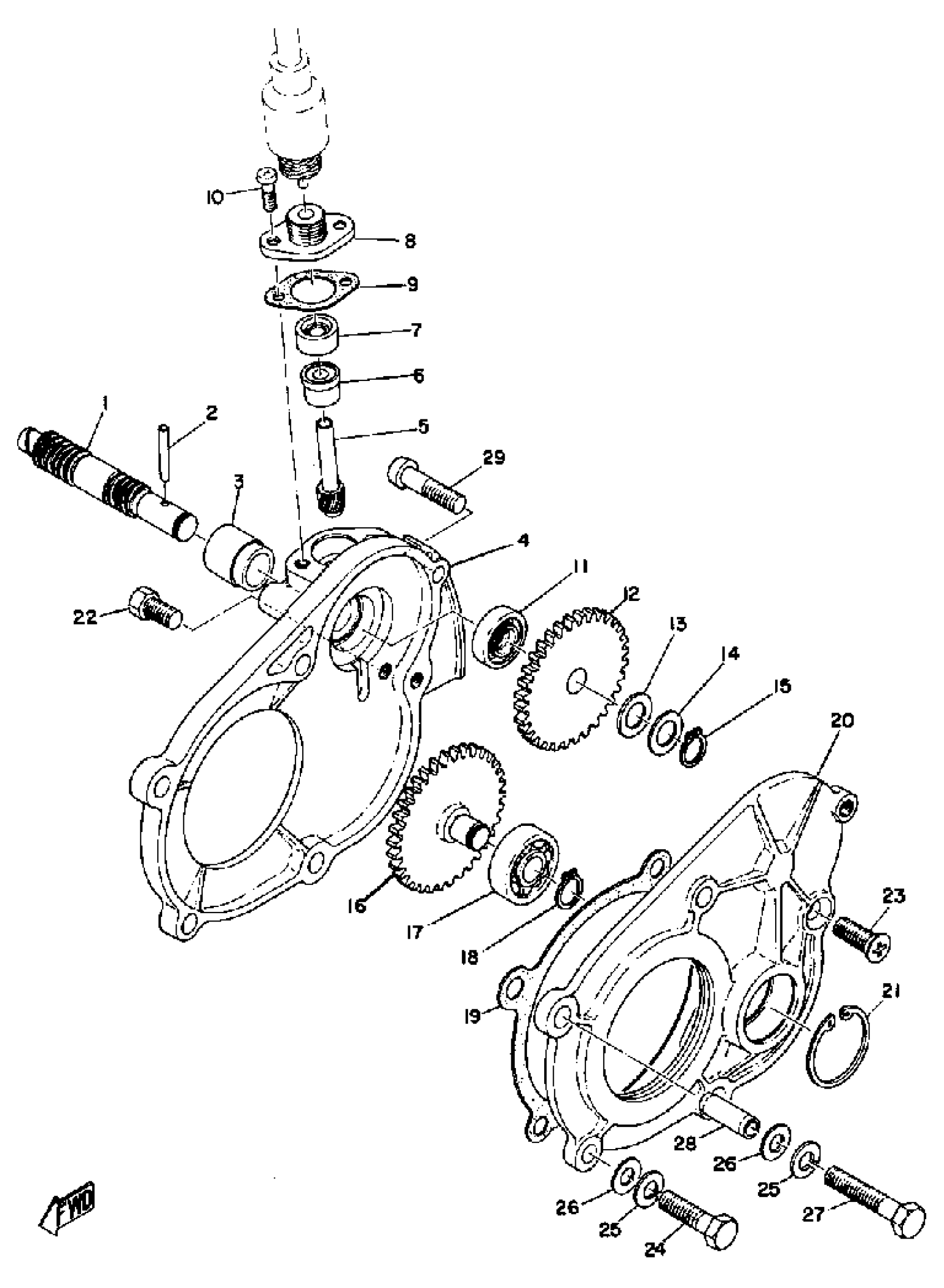

Find the part on the Pump Gear Unit diagram for your 1972 Yamaha SR433B (SR433B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha SR433B (SR433B) Pump Gear Unit Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, WORM

821-13175-00-00

1
Out of stock

2

PIN,DOWEL (137)

93603-22028-00

1
Out of stock

3

METAL, WORM SHAFT OUTER

821-13176-00-00

1

$6.33

In stock

4

COVER, OIL PUMP

(821-15416-01-00)

1
Out of stock

5

GEAR, DRIVEN (10T)

813-17841-00-00

1
Out of stock

6

BUSH, DRIVEN GEAR OUTER

821-17843-00-00

1
Out of stock

7

OIL SEAL (6X12X4-821)

93104-06033-00

1

$6.49

In stock

8

CAP, HOUSING

821-17819-00-00

1
Out of stock

9

GASKET

821-17818-02-00

1

$5.66

In stock

10

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

11

OIL SEAL (J10)

93101-10090-00

1

$6.17

In stock

12

GEAR, DRIVE 2

821-13188-00-00

—

$26.03

In stock

13

WASHER, WAVE (137)

90206-11016-00

—

$12.72

In stock

14

PLATE, CAM THRUST

137-13148-00-00

—

$3.28

In stock

15

CIRCLIP(10W)

99009-10400-00

1

$3.91

In stock

16

GEAR, IDLE

(821-13179-00-00)

1
Out of stock

17

—

$29.35

In stock

18

CIRCLIP(10W)

99009-10400-00

1

$3.91

In stock

19

GASKET, O/PMP CVR 1

821-15456-00-00

1
Out of stock

20

COVER, OIL PUMP R

(821-15426-01-00)

1
Out of stock

21

CIRCLIP, R-TYPE (R-26)

93420-26024-00

1
Out of stock

22

BOLT (661)

97013-06012-00

—

$4.71

In stock

23

SCREW, FLAT

98707-06014-00

—
Out of stock

24

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

25

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

26

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

27

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

28

PIN, DOWEL

91810-18022-00

1
Out of stock

29

SCREW, PAN HEAD (76T)

98517-06025-00

—

$3.12

In stock
