1972 Yamaha SR433B (SR433B) Track Drive Diagram

← All diagrams

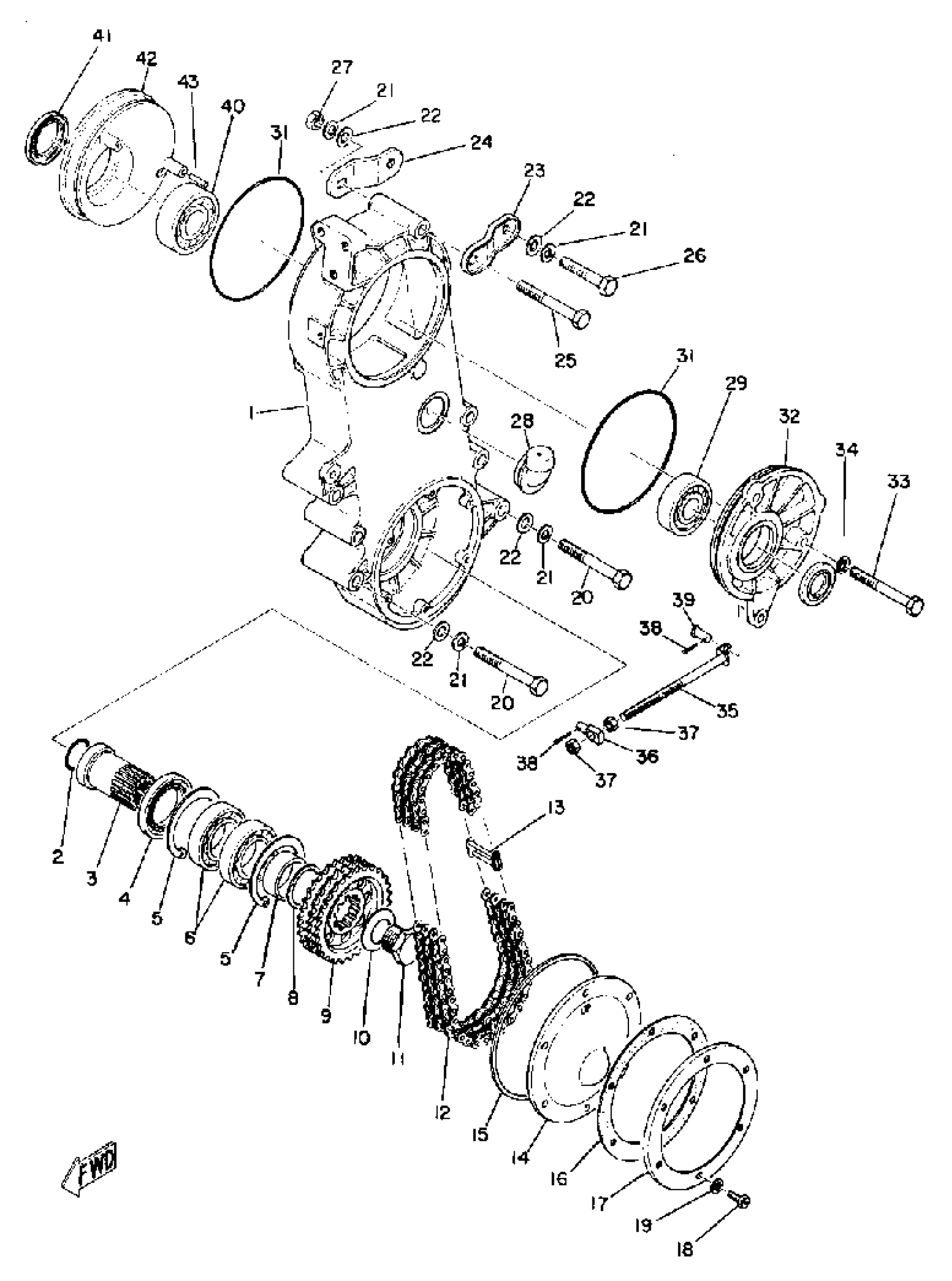

Find the part on the Track Drive diagram for your 1972 Yamaha SR433B (SR433B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha SR433B (SR433B) Track Drive Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING, CHAIN

(835-47541-00-00)

1
Out of stock

2

O-RING (437)

93210-24235-00

1

$5.72

In stock

3

JOURNAL 1

(835-47571-00-00)

1
Out of stock

4

OIL SEAL, SD-TYPE

(93102-40101-00)

1
Out of stock

5

CIRCLIP(MF1)

99009-62500-00

1

$6.23

In stock

6

BEARING (B6007)

93306-00701-00

1
Out of stock

7

COLLAR

(90387-35207-00)

1
Out of stock

8

SPACER

90560-35050-00

1
Out of stock

9

SPROCKET, CHN DRVN

(829-47548-30-00)

1
Out of stock

9

SPROCKET, CHN DRVN

(829-47548-40-00)

1
Out of stock

9

SPROCKET, CHN DRVN

(829-47548-50-00)

1
Out of stock

9

SPROCKET, CHN DRVN

(829-47548-60-00)

1
Out of stock

9

SPROCKET, CHN DRVN

(829-47548-70-00)

1
Out of stock

9

SPROCKET, CHN DRVN

(829-47548-80-00)

1
Out of stock

10

SPRING, BELLEVILLE

821-47582-00-00

1
Out of stock

11

BOLT (802-47553-00)

90109-24202-00

1
Out of stock

12

CHAIN

(94850-35084-00)

1
Out of stock

13

JOINT CHAIN

(94950-35001-00)

1
Out of stock

14

CAP, HOUSING

(835-47543-00-00)

1
Out of stock

15

RING, HOUSING

(806-47558-00-00)

1
Out of stock

16

GASKET

821-47544-00-00

1
Out of stock

17

PLATE

(821-47591-00-00)

1
Out of stock

18

SCREW

90143-05004-00

—

$2.20

In stock

19

WASHER, SEAL

90210-05005-00

1
Out of stock

20

BOLT(6TC)

97027-08070-00

—

$6.88

In stock

21

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

22

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

23

STAY 1

(820-47565-00-00)

1
Out of stock

24

STAY 2

(820-47566-00-00)

1
Out of stock

25

BOLT (6K8)

97013-08075-00

—

$5.66

In stock

26

BOLT, HEXAGON

97013-08050-00

—

$6.82

In stock

27

NUT(6L2)

95333-08600-00

—

$3.20

In stock

28

CAP 2

JN3-47559-01-00

1
Out of stock

29

—

$54.91

In stock

30

OIL SEAL (25X40X5-101)

93102-25017-00

—

$4.20

In stock

31

O-RING

93211-13109-00

1
Out of stock

32

HOUSING, SEC SHAFT

(829-47561-00-00)

1
Out of stock

33

BOLT(6TC)

97027-08070-00

—

$6.88

In stock

34

WASHER (821)

90210-08002-00

—

$5.68

In stock

35

BOLT, SEC HOUSING

(829-47567-00-00)

1
Out of stock

36

UNAVAILABLE IN PRICE BOOK (829-47568-00)

90249-06031-00

1
Out of stock

37

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

38

PIN, COTTER

91490-20025-00

—

$1.31

In stock

39

PIN, CLEVIS

91701-06014-00

1

$1.38

In stock

40

BEARING (8R9)

93306-30536-00

—

$29.83

In stock

41

OIL SEAL, SD-TYPE

93102-35056-00

1
Out of stock

42

HOUSING, SEC SHAFT

(829-47562-00-00)

1
Out of stock

43

PIN, DOWEL(4SS)

93604-18251-00

1
Out of stock
