2016 Yamaha SR400 CA (SR400GCB) Seat Diagram

← All diagrams

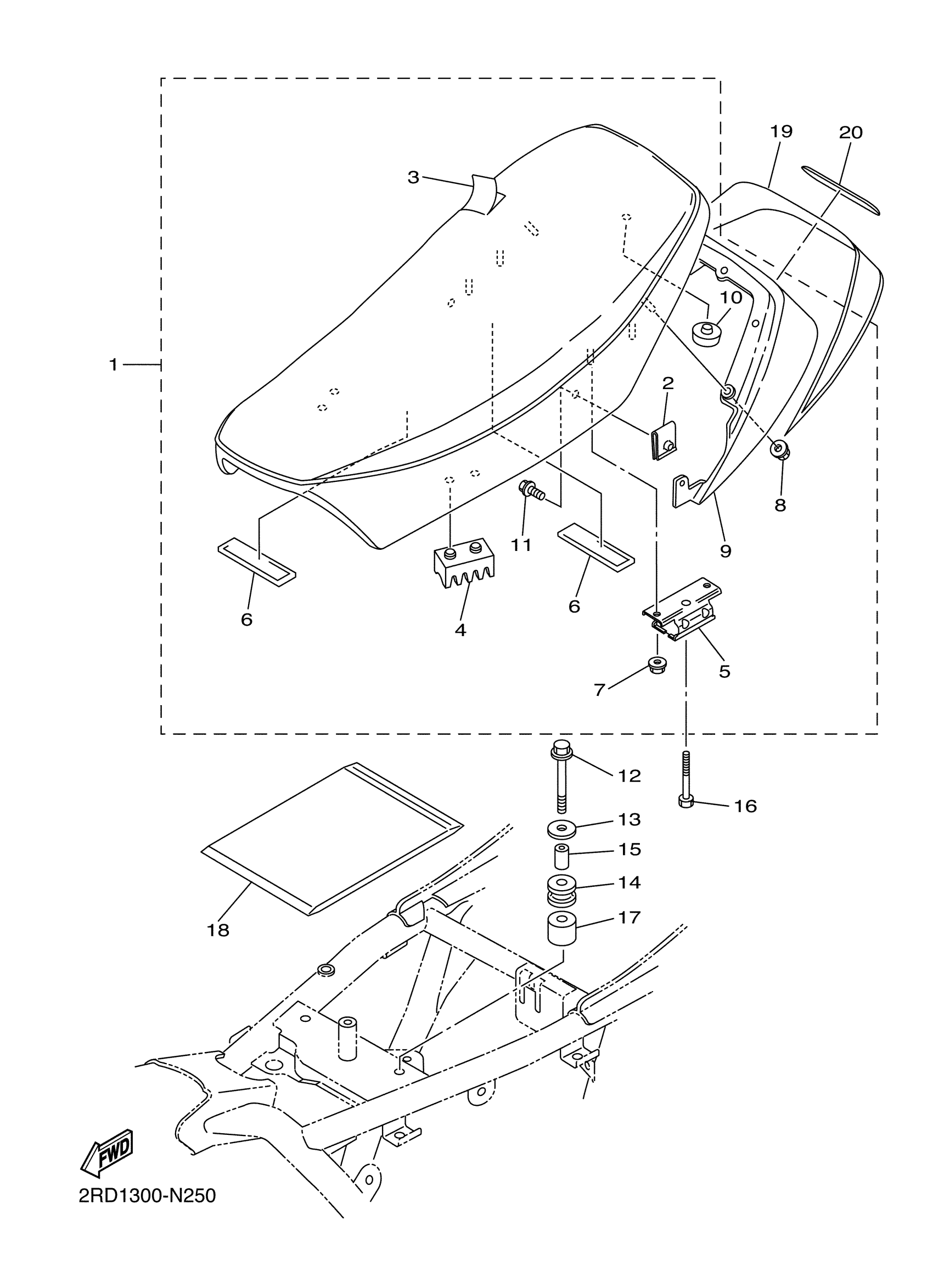

Find the part on the Seat diagram for your 2016 Yamaha SR400 CA (SR400GCB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Yamaha SR400 CA (SR400GCB) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DOUBLE SEAT ASSY (YAMAHA BLACK)

3HT-24730-50-33

1
Out of stock

2

NUT, SPRING

90183-051A0-00

1

$2.66

In stock

3

COVER, SEAT

3HT-24731-51-00

—
Out of stock

4

DAMPER, SEAT 1

2J2-24723-00-00

—
Out of stock

5

DAMPER, SEAT 2

2J2-24724-01-00

—
Out of stock

6

HOOK

4KG-2814E-10-00

1
Out of stock

7

NUT, U FLANGE

95604-06200-00

1

$2.35

In stock

8

NUT, S/L FLANGE

95607-05200-00

1

$6.86

In stock

9

COVER, TAIL

2J2-24756-01-33

1
Out of stock

10

PAD, SEAT

22W-24741-00-00

1

$7.72

In stock

11

BOLT, WITH WASHER

90119-05015-00

1

$6.17

In stock

12

BOLT, FLANGE

95812-06055-00

1

$1.46

In stock

13

WASHER PLATE 248217570000

90201-06074-00

1

$6.29

In stock

14

DAMPER, SEAT

2J2-24737-00-00

1
Out of stock

15

COLLAR, LEVER 1

36Y-83913-01-00

1

$8.94

In stock

16

BOLT, HEXAGON

90101-08439-00

—
Out of stock

17

SPACER 1

3HT-24725-00-00

—
Out of stock

18

POUCH

4KG-28186-00-00

—
Out of stock

19

GRAPHIC, TAIL COVER

2RD-24757-00-00

—
Out of stock

20

EMBLEM 1

3LS-21781-00-00

—
Out of stock
