2016 Yamaha SR400 CA (SR400GCB) Side Cover Diagram

← All diagrams

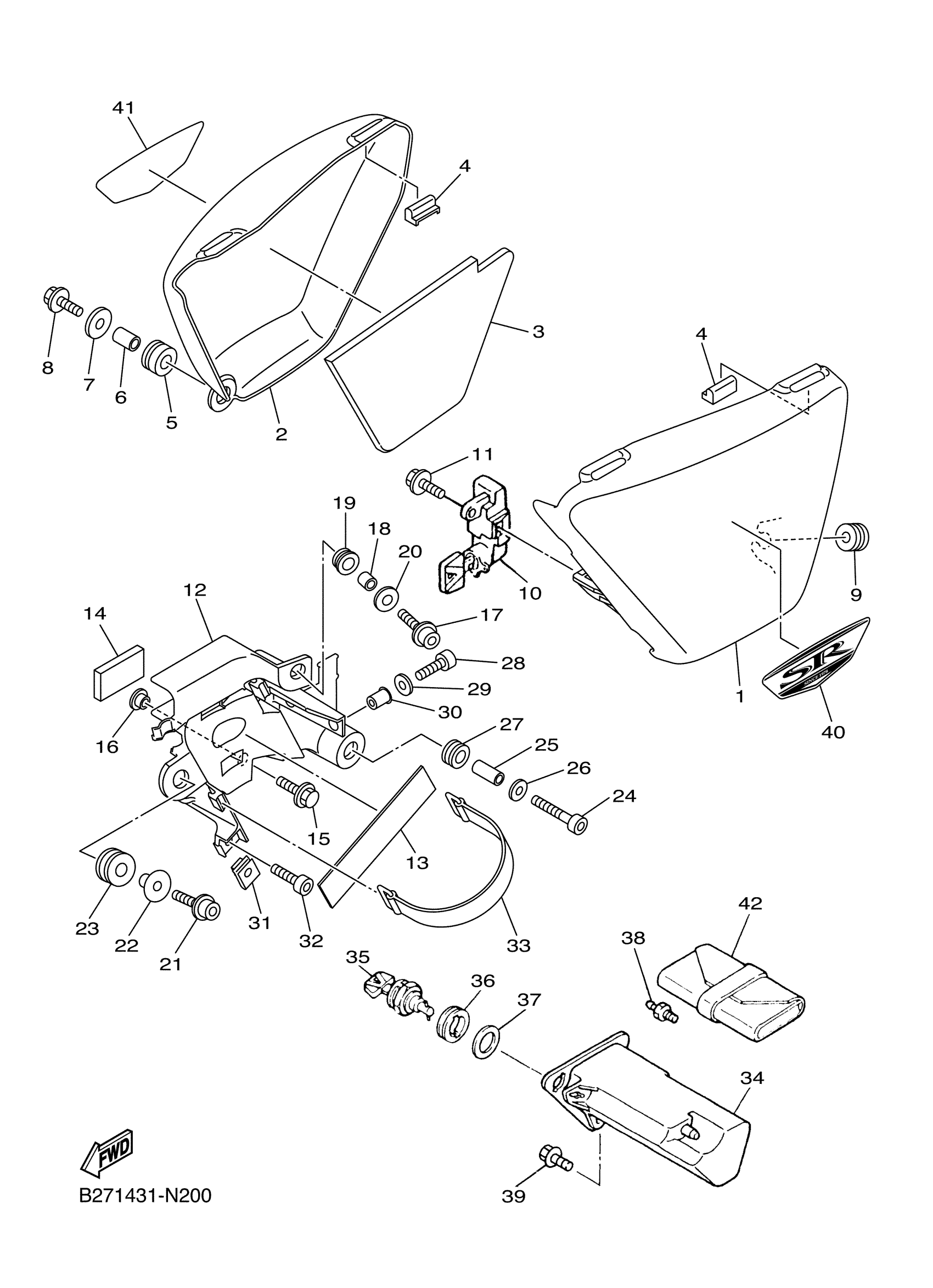

Find the part on the Side Cover diagram for your 2016 Yamaha SR400 CA (SR400GCB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Yamaha SR400 CA (SR400GCB) Side Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, SIDE 1

3HT-21711-02-33

1
Out of stock

2

COVER SIDE 2

3HT-21721-01-33

—
Out of stock

3

DAMPER

3HT-2174Y-00-00

—
Out of stock

4

DAMPER, SIDE COVER

466-21717-00-00

1
Out of stock

5

GROMMET 260845590000

90480-14105-00

1
Out of stock

6

COLLAR, LEVER 1

36Y-83913-01-00

1

$8.94

In stock

7

WASHER, PLATE

90201-06380-00

1

$0.57

In stock

8

BOLT, FLANGE

95817-06030-00

1

$3.91

In stock

9

GROMMET (2J2)

90480-12236-00

1
Out of stock

10

SIDE COVER LOCK ASSY

4R8-21708-01-00

—
Out of stock

11

BOLT, FLANGE

95817-06014-00

—

$2.15

In stock

12

BOX

3HT-2177A-00-00

—
Out of stock

13

DAMPER, LOCATING 1

5PX-21778-00-00

1
Out of stock

14

DAMPER

1TX-28371-00-00

1
Out of stock

15

BOLT, FLANGE

95817-06014-00

—

$2.15

In stock

16

COLLAR

90387-06184-00

—
Out of stock

17

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

—

$7.45

In stock

18

COLLAR

90387-06113-00

—

$10.51

In stock

19

GROMMET

90480-12003-00

—
Out of stock

20

WASHER, PLATE

90201-06104-00

—
Out of stock

21

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

—

$7.45

In stock

22

COLLAR (6G1)

90387-06M52-00

1
Out of stock

23

GROMMET(2AL)

90480-14452-00

—

$6.68

In stock

24

BOLT(J17)

91312-06035-00

—
Out of stock

25

COLLAR

90387-06045-00

—
Out of stock

26

WASHER, PLATE

90201-06104-00

—
Out of stock

27

GROMMET

90480-14003-00

—

$6.25

In stock

28

BOLT, SOCKET

91317-05020-00

—

$2.48

In stock

29

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

30

NUT(3YF)

90179-05633-00

—
Out of stock

31

NUT, SPRING

90183-060A1-00

—

$7.32

In stock

32

BOLT(3MA)

91312-06016-00

—
Out of stock

33

BAND, BATTERY

133-82131-00-00

—

$21.78

In stock

34

BOX

48U-21248-00-00

—
Out of stock

35

SIDE COVER LOCK ASSY

5A8-21708-00-00

—
Out of stock

36

GROMMET (1E6)

90480-24186-00

—

$6.68

In stock

37

WASHER, PLATE (8L8)

90201-225A4-00

—
Out of stock

38

NIPPLE, GREASE

93700-06M03-00

1

$7.15

In stock

39

BOLT, WITH WASHER

90119-06242-00

—

$5.86

In stock

40

EMBLEM 1

2RD-21781-00-00

—
Out of stock

41

EMBLEM 1

2RD-21781-00-00

—
Out of stock

42

TOOL KIT

3GW-28100-02-00

—
Out of stock
