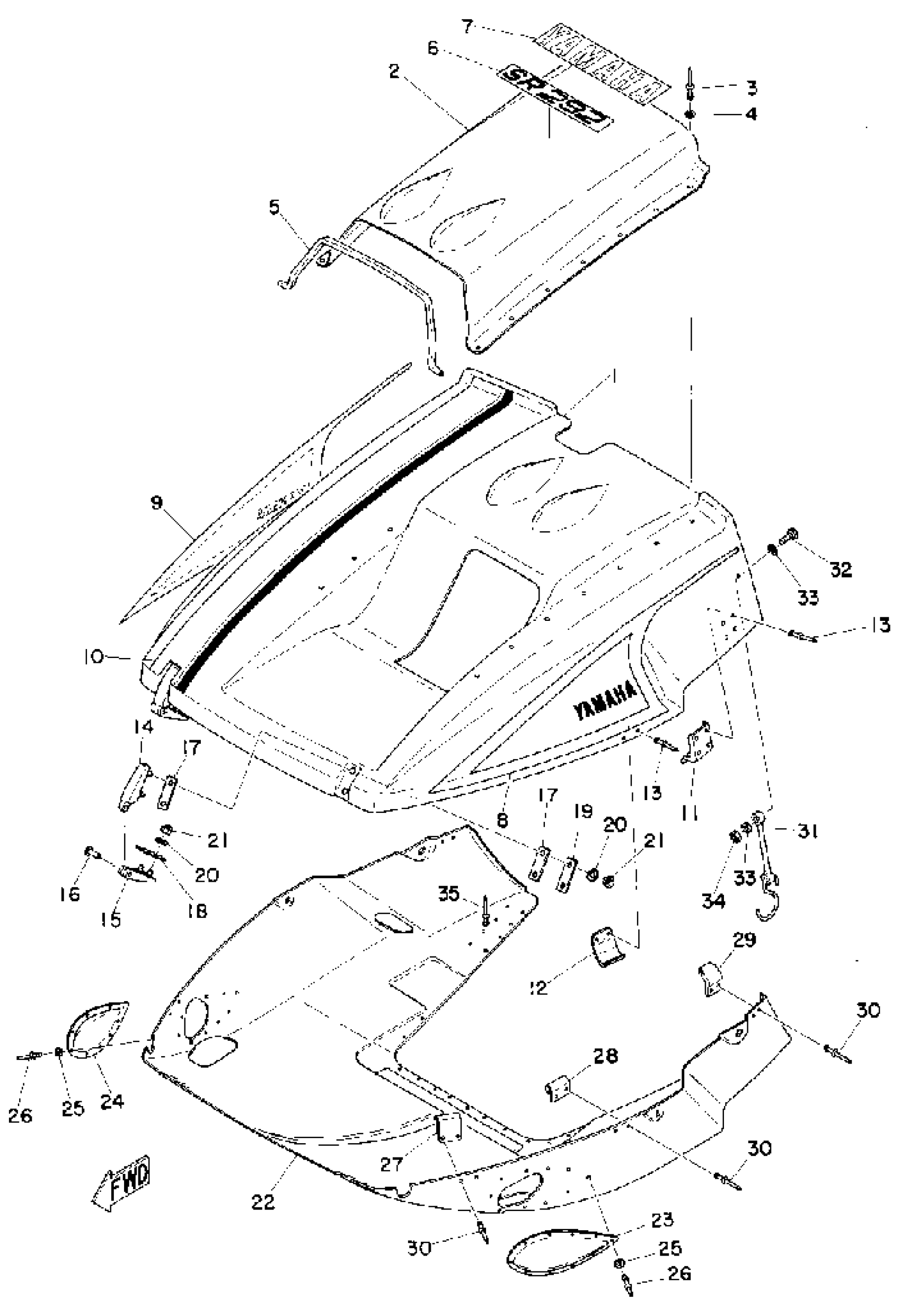

Find the part on the Shroud diagram for your 1975 Yamaha SR292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1975 Yamaha SR292 Shroud Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHROUD

(856-77111-01-00)

1
Out of stock

2

LOUVER 1

(856-77131-00-00)

1
Out of stock

3

RIVET, BLIND (8K1)

90267-40076-00

1
Out of stock

4

WASHER

90201-04015-00

—
Out of stock

5

TRIM 3

(856-77167-00-00)

1
Out of stock

6

EMBLEM 3

(856-77143-00-00)

1
Out of stock

7

EMBLEM 2

856-77142-00-00

1
Out of stock

8

ORNAMENT 1

856-77163-00-00

1
Out of stock

9

ORNAMENT 2

856-77164-00-00

1
Out of stock

10

ORNAMENT 3

856-77169-00-00

1
Out of stock

11

STAY 4

(856-77128-00-00)

1
Out of stock

12

STAY 3

(856-77127-00-00)

1
Out of stock

13

RIVET, BLIND (8K1)

90267-40076-00

1
Out of stock

14

HINGE 1

(856-77145-00-00)

1
Out of stock

15

HINGE 3

856-77147-00-00

1
Out of stock

16

PIN

90243-05003-00

1
Out of stock

17

DAMPER 1

(856-77198-00-00)

1
Out of stock

18

DAMPER 2

(856-77199-00-00)

1
Out of stock

19

PLATE, BACK UP 1

(856-77153-00-00)

1
Out of stock

20

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

21

NUT, NYLON

95707-06300-00

—

$3.20

In stock

22

HOOD 1

(856-77121-00-00)

1
Out of stock

23

LOUVER 3

(856-77133-00-00)

1
Out of stock

24

LOUVER 4

(856-77134-00-00)

1
Out of stock

25

WASHER

90201-04015-00

—
Out of stock

26

RIVET, BLIND (J10)

90267-40077-00

—
Out of stock

27

GUIDE 2

(856-77124-00-00)

1
Out of stock

28

STAY 1

(856-77125-00-00)

1
Out of stock

29

GUIDE 1

(856-77123-00-00)

1
Out of stock

30

RIVET, BLIND (8K1)

90267-40076-00

1
Out of stock

31

LATCH ASSEMBLY

856-77170-00-00

1
Out of stock

32

BOLT(JF7)

97080-06030-00

—

$3.45

In stock

33

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

34

NUT, NYLON

95707-06300-00

—

$3.20

In stock

35

RIVET, BLIND

90267-489UJ-00

1
Out of stock
