1975 Yamaha SR292 Crank - Piston Diagram

← All diagrams

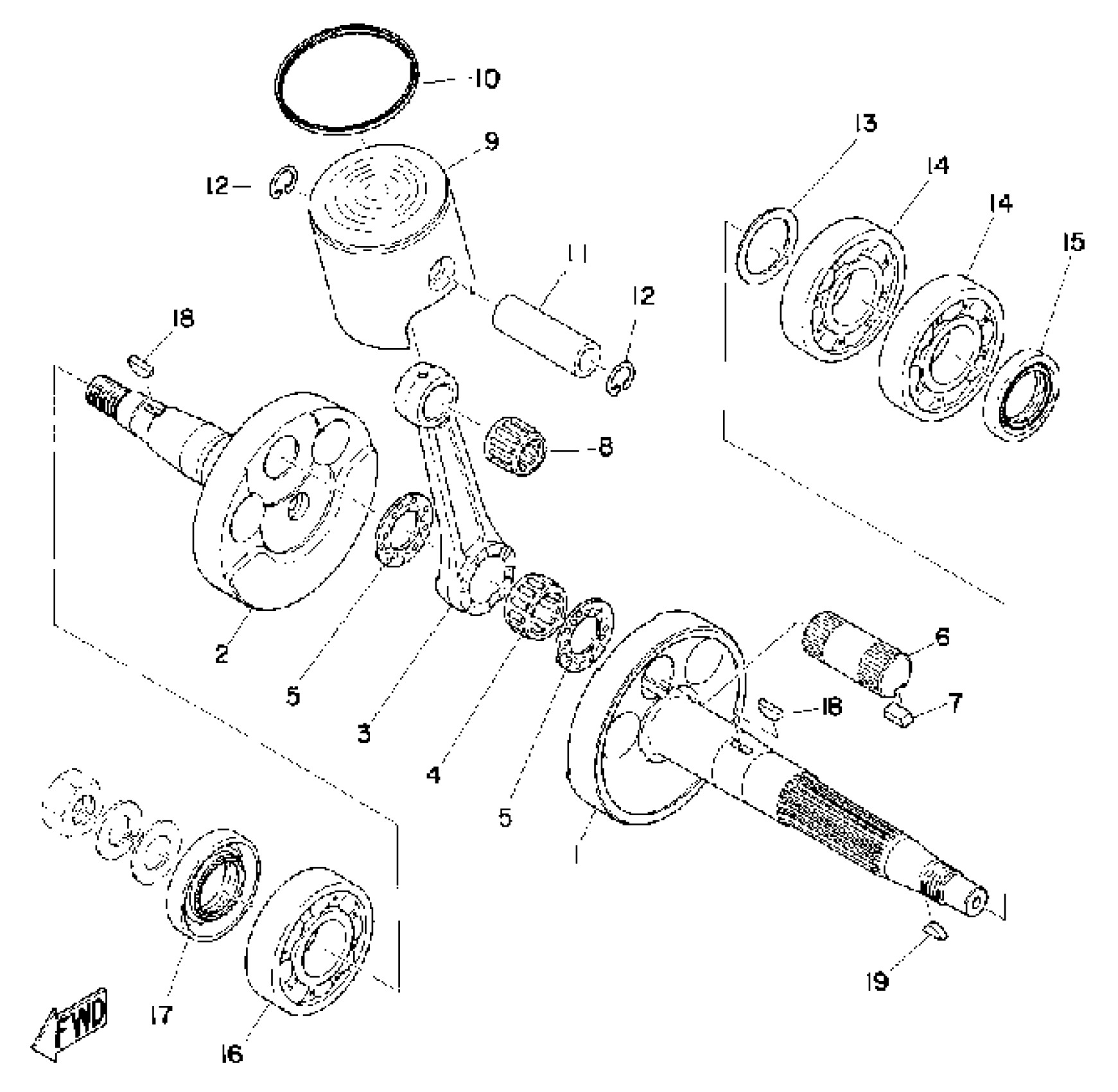

Find the part on the Crank - Piston diagram for your 1975 Yamaha SR292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1975 Yamaha SR292 Crank - Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSEMBLY

(856-11400-00-00)

1
Out of stock

1

CRANK 1

(856-11412-00-00)

1
Out of stock

2

CRANK 2

(856-11422-00-00)

1
Out of stock

3

. ROD, CONNECTING

839-11651-00-00

1
Out of stock

4

BEARING

93310-424E8-00

1

$19.49

In stock

5

WASHER (152-11685-00)

90209-24073-00

1

$10.08

In stock

6

. PIN, CRANK 2

856-11683-00-00

1
Out of stock

7

KEY, SLIDING

(90281-07001-00)

1
Out of stock

8

1

$32.87

In stock

9

PISTON STD

856-11631-00-96

1
Out of stock

10

RING, PISTON STD

(856-11611-00-00)

1
Out of stock

11

PIN, PISTON

214-11633-00-00

—

$27.84

In stock

12

CLIP 6041163400

93450-20026-00

1

$5.10

In stock

13

SHIM

(90564-36001-00)

1
Out of stock

14

BEARING

(93306-30608-00)

1
Out of stock

15

OIL SEAL, SW-TYPE

93103-32082-00

1
Out of stock

16

BEARING

(93306-30609-00)

1
Out of stock

17

OIL SEAL, SW-TYPE

93103-32061-00

1
Out of stock

18

KEY, WOODRUFF

90280-05001-00

—

$10.68

In stock

19

KEY, WOODRUFF(3MA)

90280-04051-00

1
Out of stock
