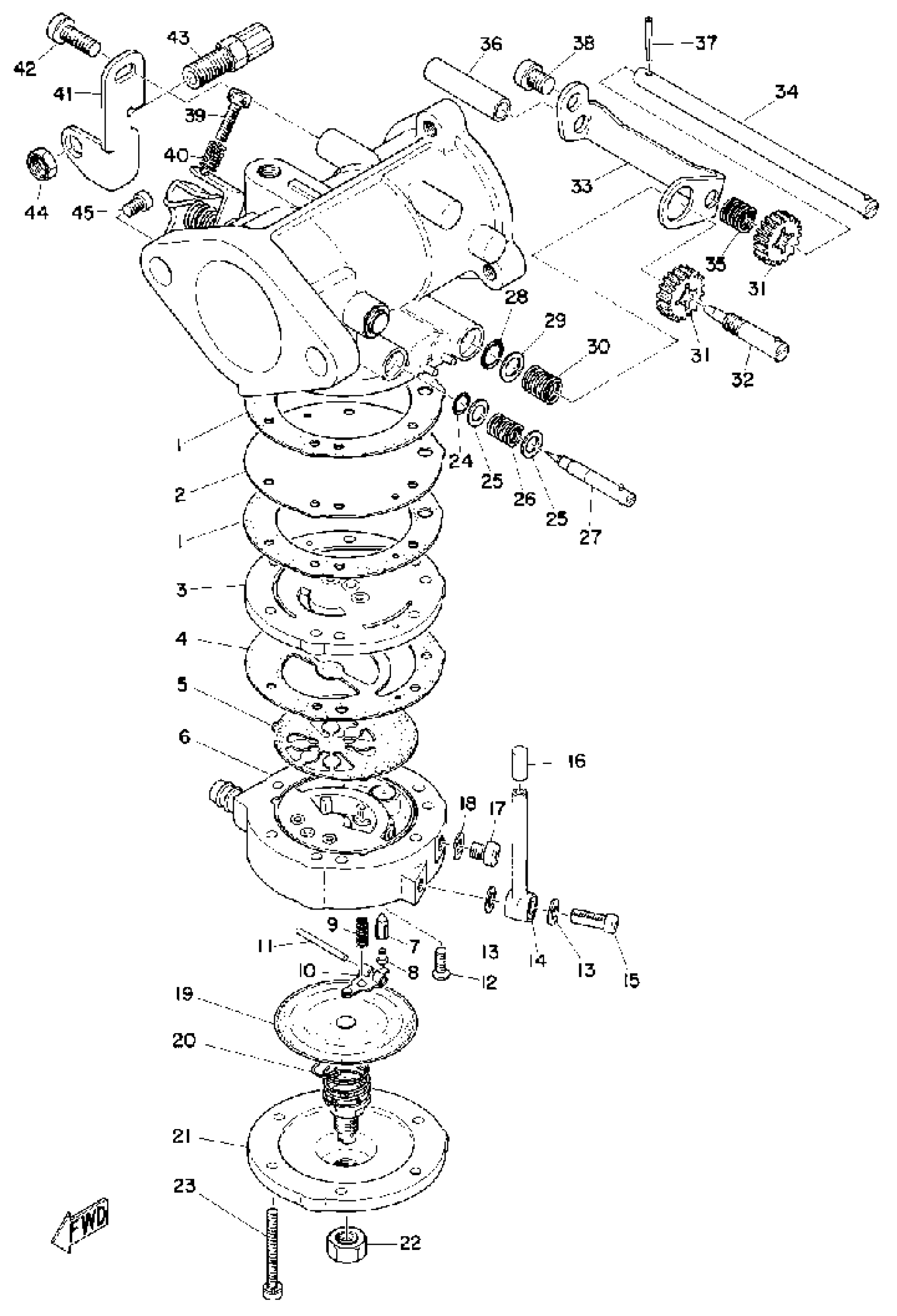

Find the part on the Carburetor diagram for your 1975 Yamaha SR292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1975 Yamaha SR292 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET

838-14536-09-00

1

$11.29

In stock

1

CARBURETOR ASSEMBLY 1

(856-14501-00-00)

1
Out of stock

2

. DIAPHRAGM, PUMP

834-14541-00-00

1
Out of stock

3

BODY, PUMP 1

(838-14542-00-00)

1
Out of stock

4

GASKET

834-14553-09-00

1
Out of stock

5

VALVE,CHECK

806-14552-01-00

1

$47.25

In stock

6

BODY, PUMP 2

(856-14543-00-00)

1
Out of stock

7

VALVE

838-14546-00-00

1

$39.18

In stock

8

. PIN, FLOAT

676-14186-00-00

1

$7.15

In stock

9

. SPRING

810-14556-00-00

1
Out of stock

10

ARM, FLOAT

(810-14547-00-00)

1
Out of stock

11

PIN, FLOAT ARM

(806-14548-00-00)

1
Out of stock

12

SCREW, FLAT

98707-03008-00

1

$5.62

In stock

13

. WASHER

806-14559-00-00

1
Out of stock

14

. PIPE, AIRVENT

810-14197-02-00

1
Out of stock

15

. SCREW

8A1-14592-00-00

1
Out of stock

16

CAP, BLIND

(810-24462-00-00)

1
Out of stock

17

SCREW

(806-14567-01-00)

1
Out of stock

18

. WASHER

810-14597-00-00

1
Out of stock

19

DIAPHRAGM

810-14545-00-00

—
Out of stock

20

SCREW, STOP

(856-14565-00-00)

1
Out of stock

21

BODY, PUMP 3

(813-14544-00-00)

1
Out of stock

22

. NUT

95380-08700-00

1

$3.07

In stock

23

SCREW

(824-14567-00-00)

1
Out of stock

24

. O-RING

824-14563-00-00

1
Out of stock

25

. WASHER

838-14596-00-00

1
Out of stock

26

SPRING, AJST SCREW

(824-14531-00-00)

1
Out of stock

27

SCREW, ADJUST

(838-14522-00-00)

1
Out of stock

28

. O-RING

824-14564-00-00

1
Out of stock

29

. WASHER

838-14597-00-00

1
Out of stock

30

SPRING, AJST SCREW

(821-14533-00-00)

1
Out of stock

31

GEAR

(844-42152-00-00)

1
Out of stock

32

SCREW, ADJUST

(856-14521-00-00)

1
Out of stock

33

PLATE

(856-14527-00-00)

1
Out of stock

34

SHAFT, LINK

(856-41258-00-00)

1
Out of stock

35

SPRING, AJST SCREW

(856-14533-00-00)

1
Out of stock

36

COLLAR

(856-14534-00-00)

1
Out of stock

37

PIN, SPRING

(856-14550-00-00)

1
Out of stock

38

SCREW

(856-14567-00-00)

1
Out of stock

39

SCREW, STOP

(806-14523-00-00)

1
Out of stock

40

SPRING, AJST SCREW

(806-14533-00-00)

1
Out of stock

41

BRACKET, THROTTLE

(857-14571-00-00)

1
Out of stock

42

SCREW

(844-14567-00-00)

1
Out of stock

43

. ADJUSTER, CABLE

857-14576-00-00

1
Out of stock

44

NUT

(857-14594-00-00)

1
Out of stock

45

CARBURETOR KIT

(823-14500-80-00)

1
Out of stock

45

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock
