1975 Yamaha SR292 Engine Bracket Diagram

← All diagrams

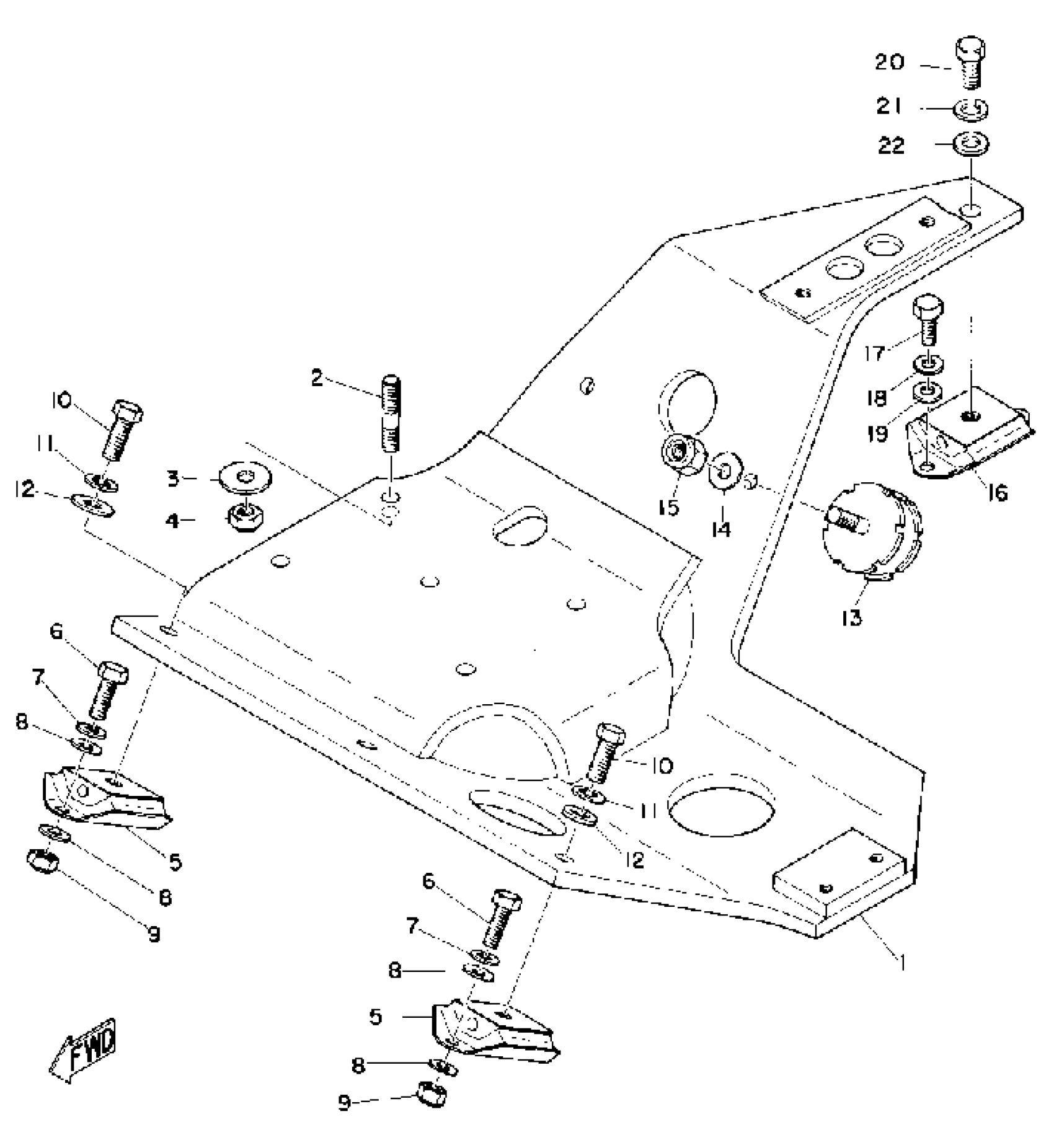

Find the part on the Engine Bracket diagram for your 1975 Yamaha SR292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1975 Yamaha SR292 Engine Bracket Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, ENGINE 1

(856-21411-00-00)

1
Out of stock

2

BOLT, STUD

90116-10132-00

1
Out of stock

3

WASHER, PLATE

90201-10144-00

1
Out of stock

4

NUT, SELF-LOCKING

90185-10030-00

1
Out of stock

5

DAMPER, RUBBER 1

(856-21485-00-00)

1
Out of stock

6

BOLT, HEXAGON

97013-08020-00

1

$1.54

In stock

7

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

8

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

9

NUT(6L2)

95333-08600-00

1

$3.20

In stock

10

BOLT(6TD)

97017-10025-00

1

$6.82

In stock

11

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

12

WASHER, PLATE(8BV)

90201-100S7-00

1

$9.75

In stock

13

DAMPER 2

(856-21486-00-00)

1
Out of stock

14

1

$3.00

In stock

15

NUT, SELF-LOCKING

90185-10017-00

1
Out of stock

16

DAMPER, RUBBER 1

(856-21485-00-00)

1
Out of stock

17

BOLT, HEXAGON

97013-08020-00

1

$1.54

In stock

18

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

19

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

20

BOLT

(90101-10057-00)

1
Out of stock

21

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

22

1

$3.00

In stock
