1975 Yamaha SR292 Fuel Pump - Piping Diagram

← All diagrams

Find the part on the Fuel Pump - Piping diagram for your 1975 Yamaha SR292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

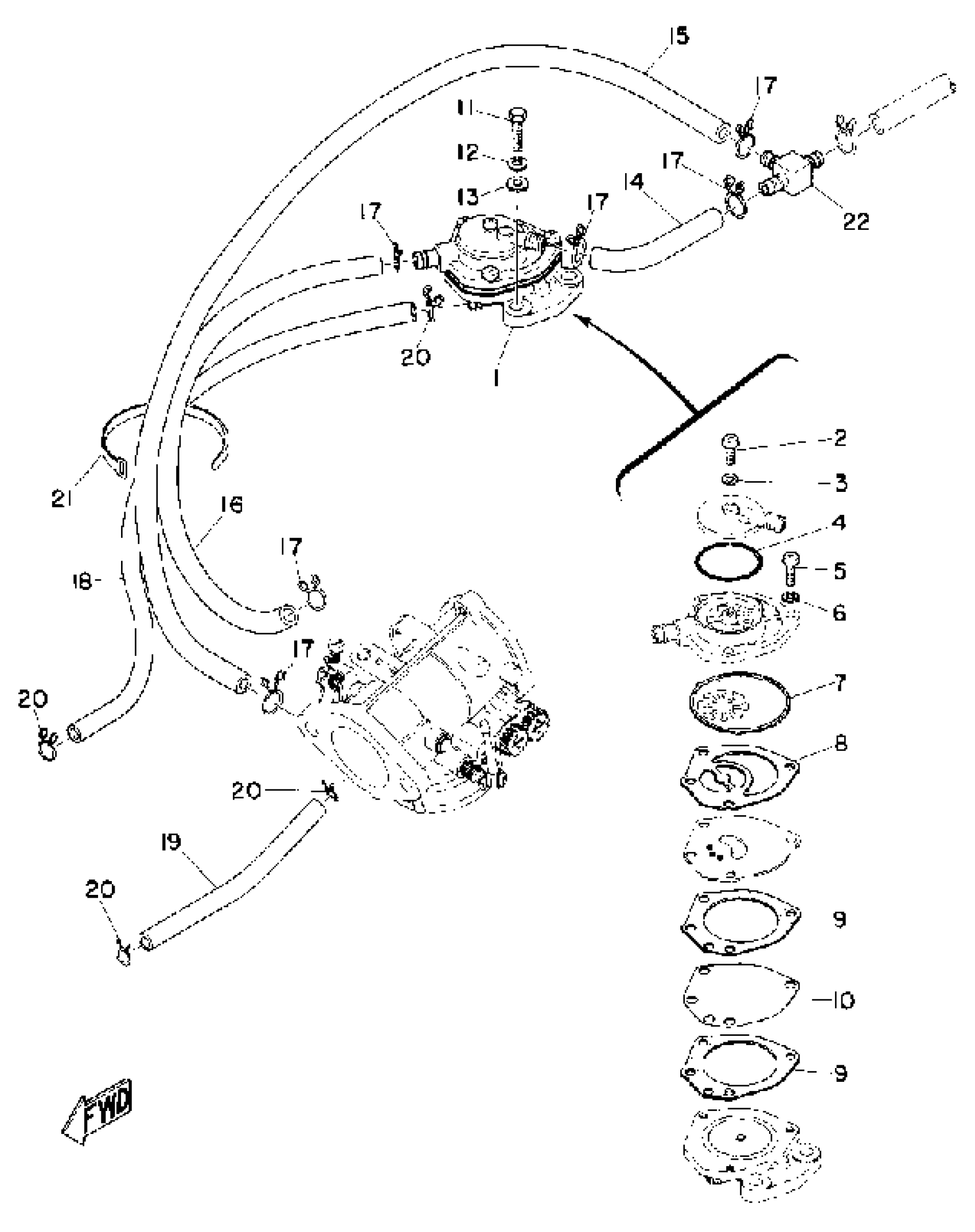

1975 Yamaha SR292 Fuel Pump - Piping Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL PUMP ASSEMBLY

(856-24410-00-00)

1
Out of stock

2

SCREW

(856-24444-00-00)

1
Out of stock

3

GASKET, BODY 4

(856-24437-00-00)

1
Out of stock

4

O-RING

(823-24487-80-00)

1
Out of stock

5

SCREW, PAN HEAD(GA5)

98580-04014-00

1

$2.78

In stock

6

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

7

VALVE,CHECK

806-14552-01-00

1

$47.25

In stock

8

GASKET, FUEL PUMP 2

(856-24432-00-00)

1
Out of stock

9

GASKET, FUEL PUMP 1

(856-24431-00-00)

1
Out of stock

10

. DIAPHRAGM

823-24411-80-00

1
Out of stock

11

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

12

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

13

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

14

TUBE, FLEXIBLE(3NV)

91A21-07020-00

1

$8.95

In stock

15

TUBE, FLEXIBLE VINYL(86X)

91A20-07100-00

1

$19.82

In stock

16

HOSE

(90446-11027-00)

1
Out of stock

17

CLIP (8J7)

90467-11009-00

—

$7.55

In stock

18

HOSE (L450)

90445-10144-00

—

$4.52

In stock

19

HOSE

(90445-10136-00)

1
Out of stock

20

CLIP

90467-090A2-00

—

$2.51

In stock

21

BAND, SWITCH CORD

437-83936-11-00

—

$3.20

In stock

22

PIPE, JOINT 1

(829-24376-80-00)

1
Out of stock
