1975 Yamaha SR292 Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1975 Yamaha SR292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

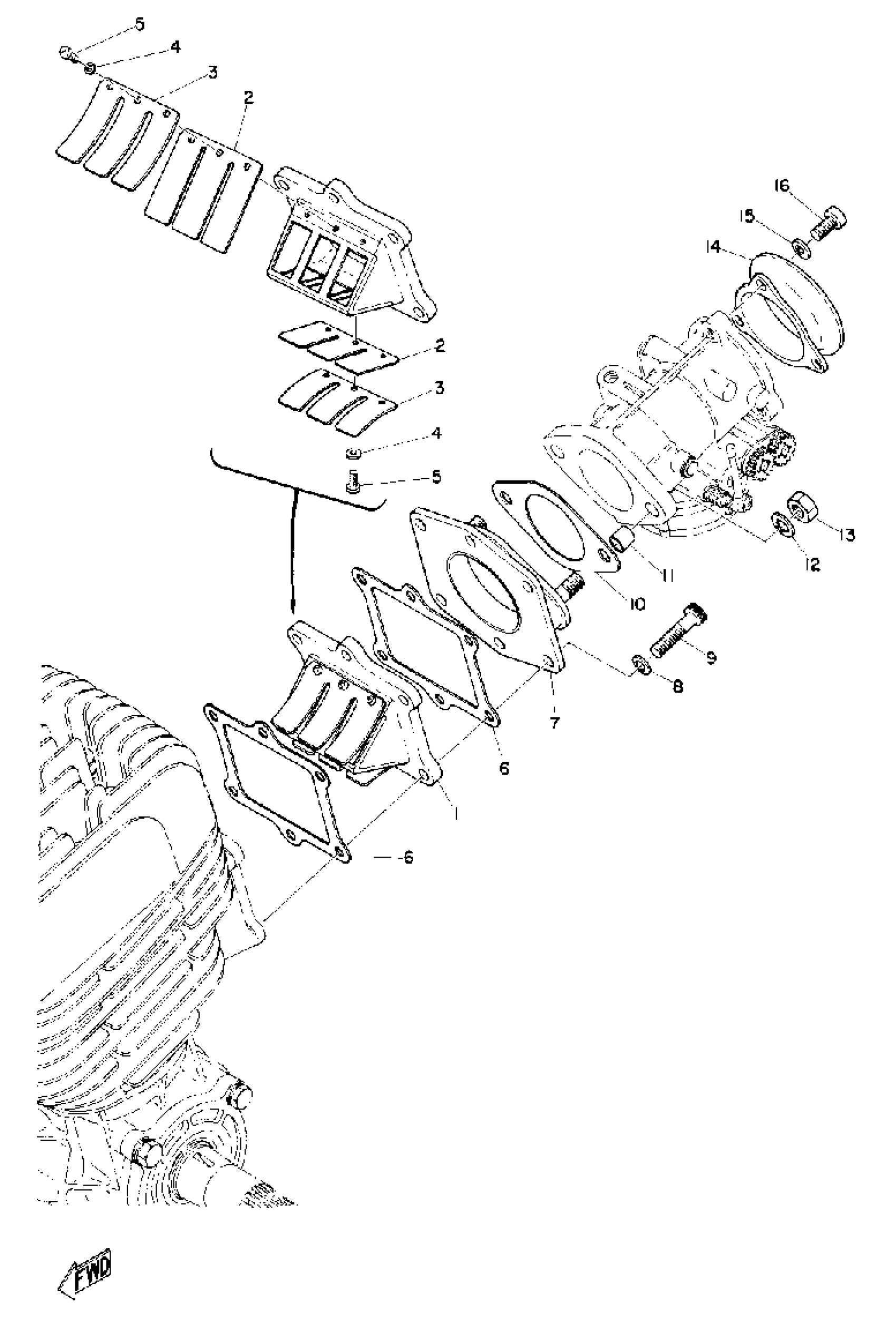

1975 Yamaha SR292 Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSEMBLY

(856-13610-00-00)

1
Out of stock

2

REED, VALVE

(856-13613-00-00)

1
Out of stock

3

STOPPER, REED VALVE

(856-13616-00-00)

1
Out of stock

4

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

5

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

6

GASKET, VALVE SEAT

(856-13621-00-00)

1
Out of stock

7

JOINT, CARBURETOR

856-13565-02-00

1
Out of stock

8

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

9

BOLT,SOCKET

91317-06025-00

1

$2.05

In stock

10

GASKET, MANIFOLD

(856-13556-00-00)

1
Out of stock

11

SPACER

(810-13576-00-00)

1
Out of stock

12

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

13

. NUT

95380-08700-00

1

$3.07

In stock

14

FUNNEL

(810-14479-00-00)

1
Out of stock

15

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

16

SCREW, PAN

98507-06014-00

—

$6.18

In stock
