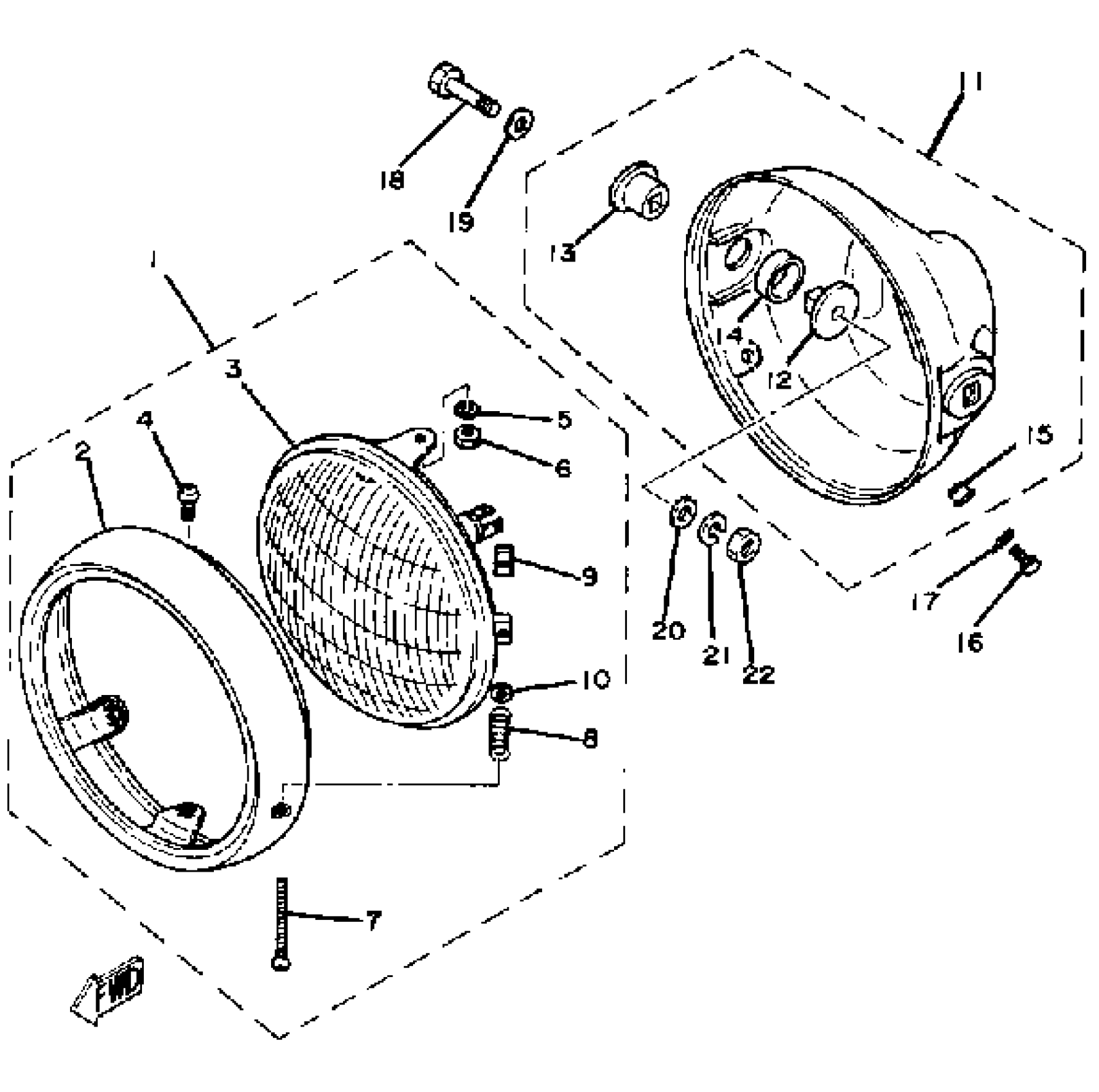

Find the part on the Headlight diagram for your 1981 Yamaha SR250TH (SR250TH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha SR250TH (SR250TH) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLIGHT UNIT ASSEMBLY

3Y6-84310-60-00

1
Out of stock

2

RIM, HEAD LAMP

1L9-84315-60-00

—

$56.32

In stock

3

. LENS ASSEMBLY

3Y6-84320-60-00

1
Out of stock

4

SCREW PAN HEAD

98580-06010-00

1

$6.17

In stock

5

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

6

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

7

SCREW, RIM ADJUSTING

4KG-84331-00-00

1
Out of stock

8

SPRING,SCREW

3AA-84332-00-00

1
Out of stock

9

NUT, ADJUSTING

5PX-84334-00-00

1

$6.38

In stock

10

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

11

BODY ASSY

3Y6-84330-00-00

—

$44.03

In stock

12

. COLLAR, BODY FTNG

1L9-84338-60-00

1
Out of stock

13

. DAMPER, HEADLIGHT 1

1L9-84366-61-00

1
Out of stock

14

. DAMPER, HEADLIGHT 2

1L9-84367-61-00

1
Out of stock

15

. SPACER

1L9-84327-60-00

1
Out of stock

16

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

17

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

18

BOLT

97013-08035-00

—

$4.80

In stock

19

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

20

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

21

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

22

NUT(6L2)

95333-08600-00

—

$3.20

In stock
