1981 Yamaha SR250TH (SR250TH) Electrical 2 Diagram

← All diagrams

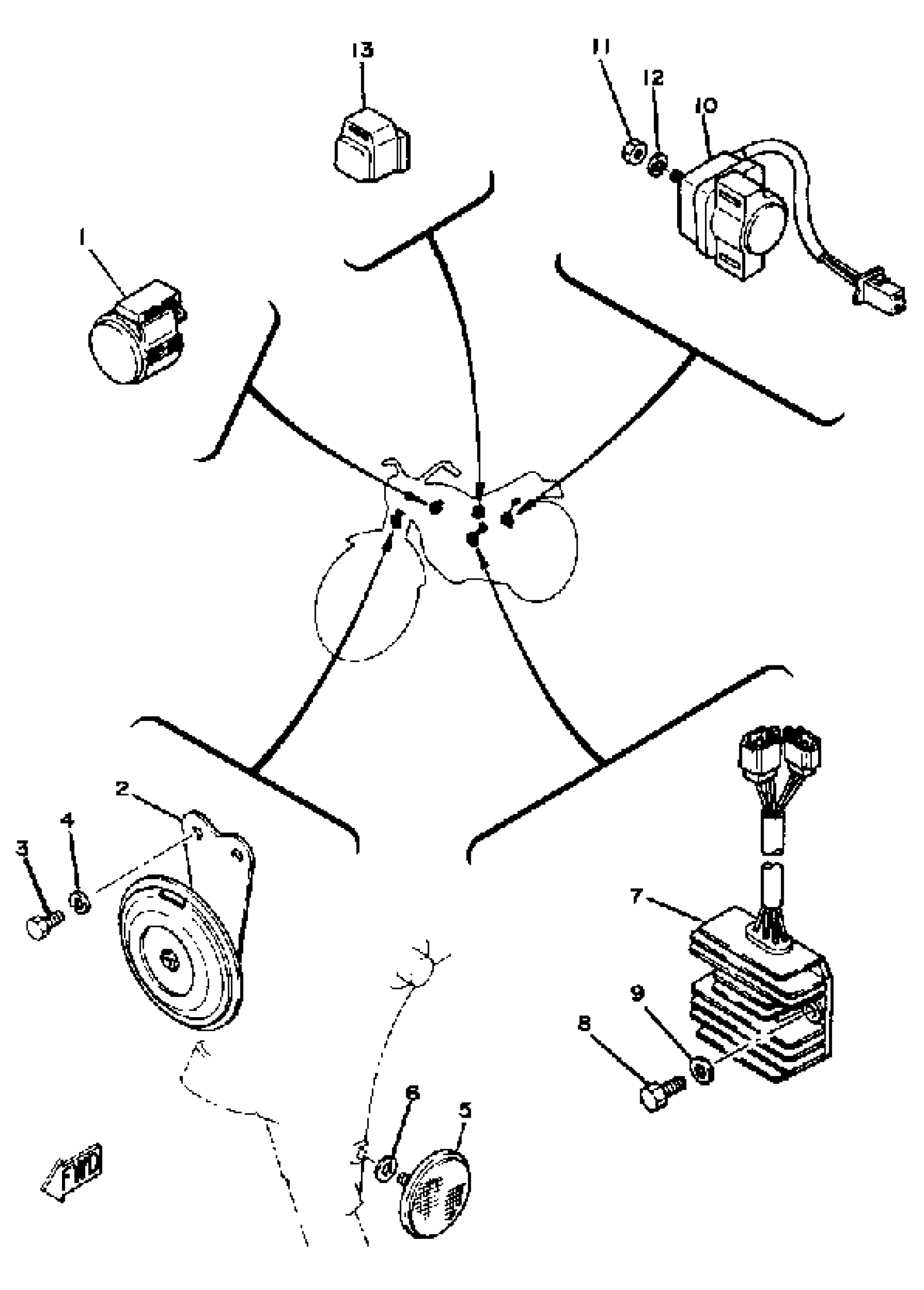

Find the part on the Electrical 2 diagram for your 1981 Yamaha SR250TH (SR250TH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha SR250TH (SR250TH) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FLASHER RELAY ASSY

3Y6-83350-71-00

—

$42.54

In stock

2

HORN

3Y6-83371-00-00

1
Out of stock

3

BOLT(3JP)

97017-06010-00

1

$2.62

In stock

4

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

5

REFLECTOR, FRONT 1

355-85111-01-00

1
Out of stock

5

WASHER, PLATE(3AJ)

90202-05191-00

1

$6.01

In stock

7

RECTIFIER & REGULATOR ASSY

3Y6-81960-01-00

—

$104.11

In stock

8

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

9

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

10

STARTER SWITCH ASSEMBLY

1J7-81940-10-00

1
Out of stock

11

NUT(650)

95380-06700-00

1

$6.17

In stock

12

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

13

RELAY ASSY

12R-81950-02-00

1
Out of stock
← Electrical 1 Flasher Light →
