1981 Yamaha SR250TH (SR250TH) Handle Switch Lever Diagram

← All diagrams

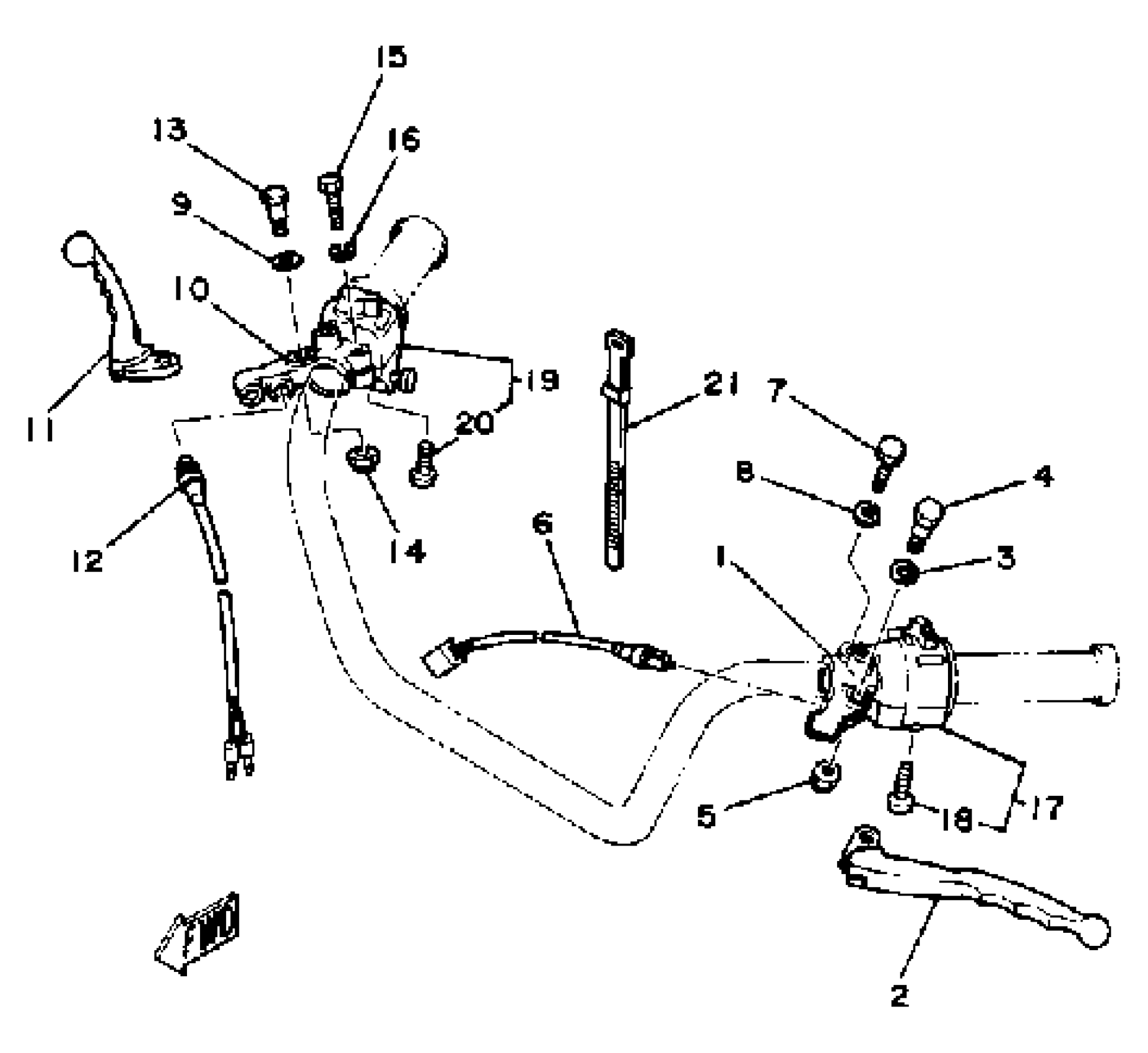

Find the part on the Handle Switch Lever diagram for your 1981 Yamaha SR250TH (SR250TH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha SR250TH (SR250TH) Handle Switch Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOLDER, LEVER 1

3Y6-82911-00-00

1

$45.97

In stock

2

LEVER 1

23X-83912-02-00

1

$21.46

In stock

3

WASHER, PLATE 1562722600

90201-08083-00

1
Out of stock

4

BOLT(3GB)

90109-061F3-00

1

$4.85

In stock

5

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

6

SWITCH

3Y6-82917-00-00

1
Out of stock

7

BOLT, HEXAGON

97013-06022-00

1

$1.20

In stock

8

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

9

WASHER, PLATE 1562722600

90201-08083-00

1
Out of stock

10

. LEVER HOLDER ASSEMBLY 2

361-82920-93-00

1
Out of stock

11

LEVER R

23X-83922-01-00

1

$21.74

In stock

12

FRONT STOP SWITCH ASSY

395-83980-09-00

—

$34.84

In stock

13

BOLT(3GB)

90109-061F3-00

1

$4.85

In stock

14

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

15

BOLT, HEXAGON

97013-06022-00

1

$1.20

In stock

16

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

17

SWITCH, HANDLE 3

3Y6-83973-00-00

1
Out of stock

18

SCREW, PAN HEAD

98580-05020-00

1

$1.39

In stock

19

SWITCH, HANDLE 2

3Y6-83975-00-00

1
Out of stock

20

SCREW, PAN HEAD

98580-05020-00

1

$1.39

In stock

21

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock
