1981 Yamaha SR250TH (SR250TH) Carburetor Diagram

← All diagrams

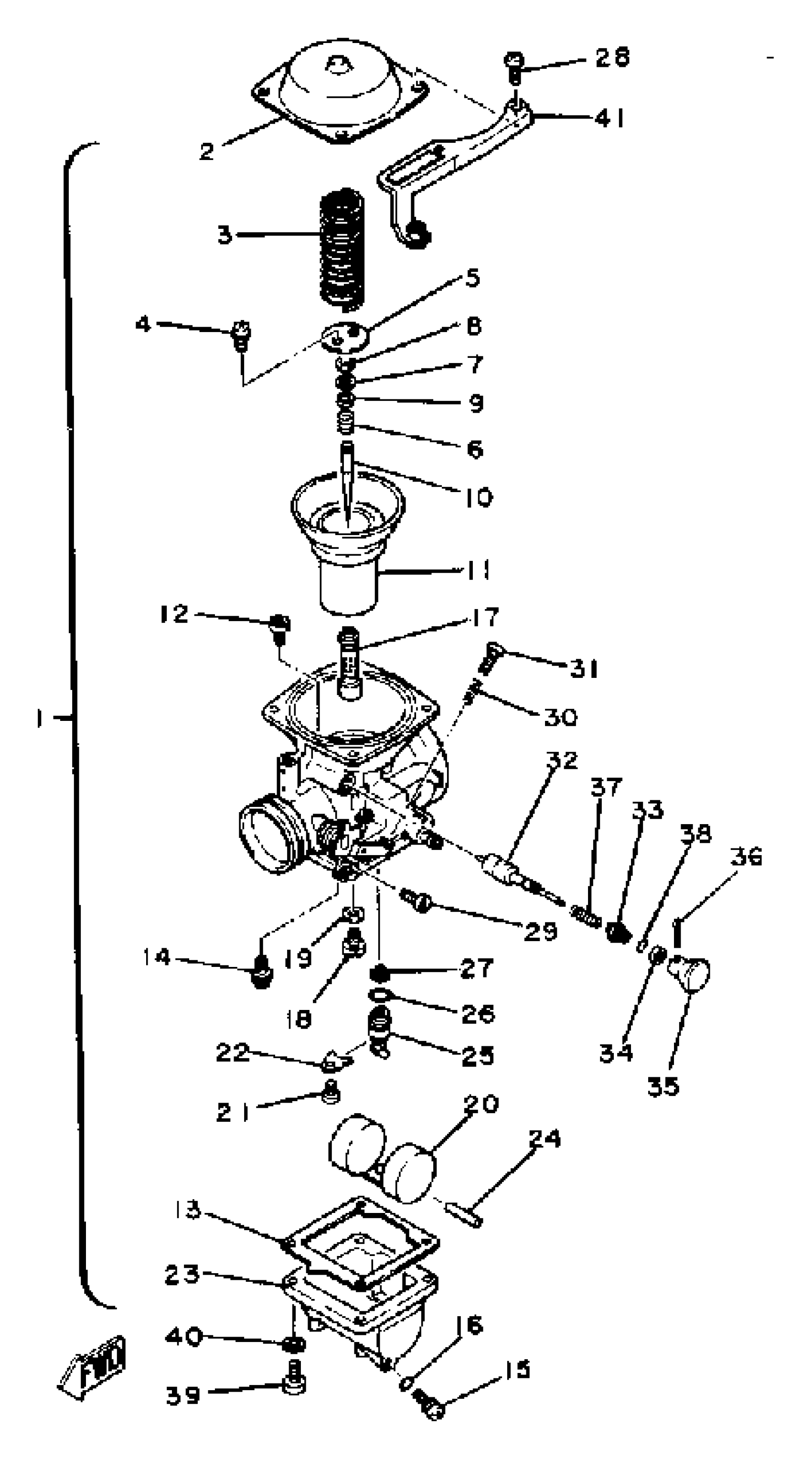

Find the part on the Carburetor diagram for your 1981 Yamaha SR250TH (SR250TH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha SR250TH (SR250TH) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSEMBLY 1

3Y6-14901-00-00

1
Out of stock

2

COVER, DIAPHRAGM

(3F7-14958-01-00)

1
Out of stock

3

SPRING, DIAPHRAGM

3Y6-14933-00-00

—

$19.40

In stock

4

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

5

PLATE, DIAPHRAGM

3F7-14936-00-00

—

$3.89

In stock

6

SPRING, NEEDLE

3F7-14589-00-00

1

$4.03

In stock

7

WASHER, PLATE (7Y2)

90201-037F2-00

1
Out of stock

8

CLIP

256-14919-00-00

1

$6.17

In stock

9

RING, NEEDLE

3F7-14918-00-00

1

$9.78

In stock

10

. NEEDLE

452-14116-25-00

1
Out of stock

11

DIAPHRAGM ASSY

3F7-14940-00-00

1
Out of stock

12

JET, MAIN (#140)

3G2-14231-28-00

1
Out of stock

13

GASKET, FLOAT CHAMBER

3F7-14984-00-00

1

$50.68

In stock

14

. JET, PILOT #47

256-14142-47-A0

1
Out of stock

15

SCREW

2L1-14191-00-00

1
Out of stock

16

O-RING

214-14147-00-00

—
Out of stock

17

NOZZLE, MAIN

2F3-14941-07-00

—

$34.89

In stock

18

JET, MAIN (#120)

620-14231-24-A0

—

$10.22

In stock

19

WASHER,MAIN JET

137-14153-00-00

—
Out of stock

20

FLOAT

3H5-14985-00-00

—

$31.95

In stock

21

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

22

. PLATE

2H0-14146-00-00

1
Out of stock

23

. BODY, FLOAT CHAMBER

3U6-14981-06-00

1
Out of stock

24

PIN, FLOAT

537-14186-00-00

—
Out of stock

25

NEEDLE VALVE SET

25G-14107-20-00

—

$47.56

In stock

26

O-RING

8F2-14147-00-00

—
Out of stock

27

NET, FILTER

1J7-14994-00-00

—
Out of stock

28

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

29

SCREW, CYLINDER HEAD

(98302-05006-00)

1
Out of stock

30

. SPRING, THROTTLE STOP

3F7-14133-00-00

1
Out of stock

31

. STOP SCREW SET

12R-1490K-00-00

1
Out of stock

32

. PLUNGER, STARTER

3Y6-14171-00-00

1
Out of stock

33

. CAP, PLUNGER

3Y6-14174-00-00

1
Out of stock

34

COVER, PLUNGER CAP

132-14173-00-00

—

$8.70

In stock

35

HOLDER

304-14261-00-00

—

$35.95

In stock

36

. CLIP, PLUNGER

432-14138-01-00

1
Out of stock

37

. SPRING, PLUNGER

256-14135-00-00

1
Out of stock

38

CLIP, PLUNGER

353-14138-00-00

—

$5.23

In stock

39

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

40

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

41

BRACKET, THROTTLE 1

(3Y6-14926-00-00)

1
Out of stock
