1981 Yamaha SR250TH (SR250TH) Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1981 Yamaha SR250TH (SR250TH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

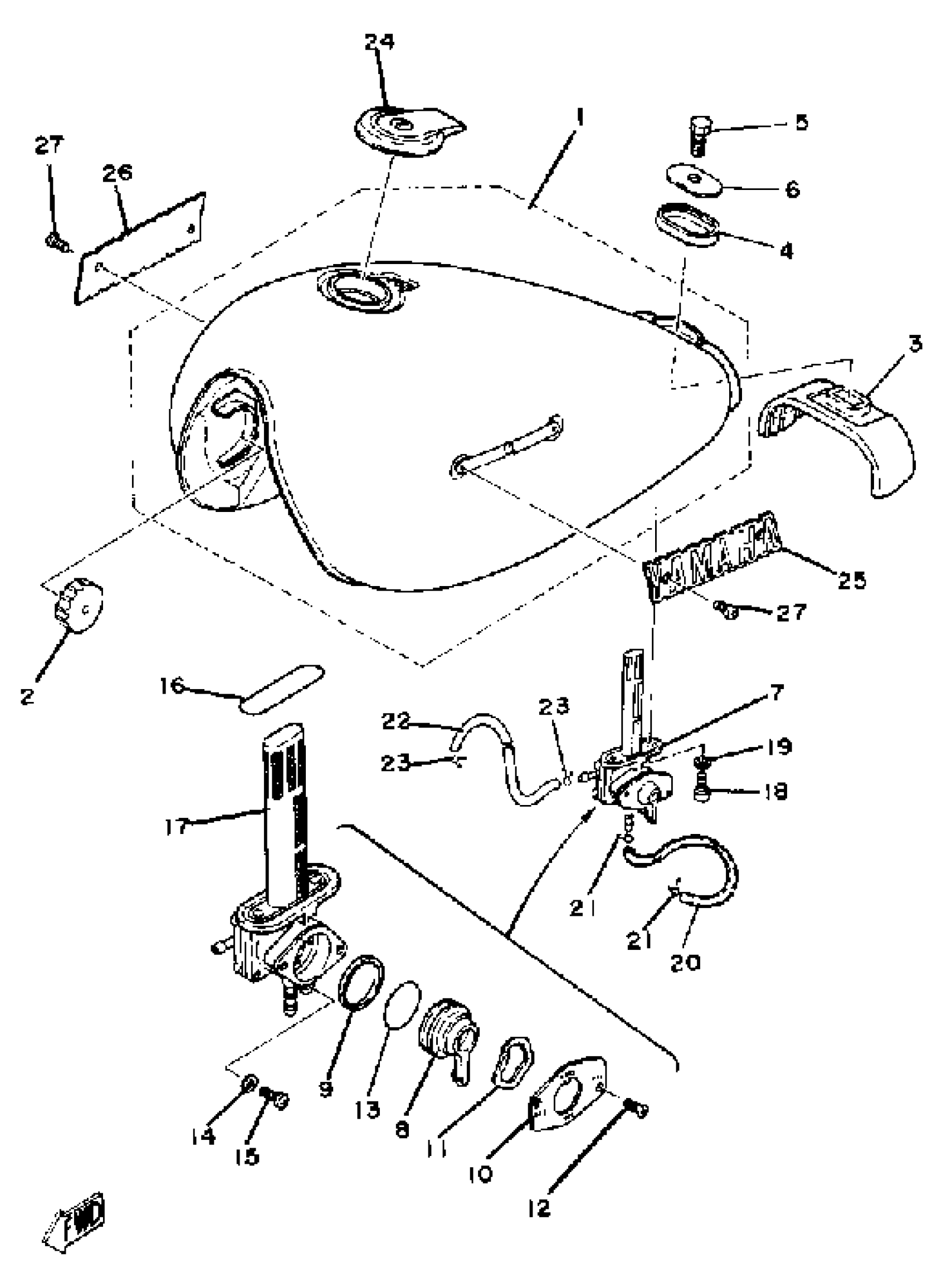

1981 Yamaha SR250TH (SR250TH) Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL TANK

3Y6-24110-10-02

1
Out of stock

2

DAMPER, LOCATING 1

3TB-24181-00-00

1

$12.29

In stock

3

DAMPER, LOCATING 2

(3Y6-24182-01-00)

1
Out of stock

4

DAMPER, LOCATING 3

3Y6-24183-00-00

1
Out of stock

5

BOLT, HEXAGON

97017-08016-00

1
Out of stock

6

WASHER, SPECIAL

3Y6-24186-00-00

1

$3.28

In stock

7

FUEL COCK ASSY 1

3Y6-24500-03-00

—

$107.14

In stock

8

LEVER, COCK

(3Y6-24524-00-00)

1
Out of stock

9

VALVE, FUEL COCK

3H3-24523-00-00

1
Out of stock

10

PLATE, LVR FITTING

(3Y6-24525-00-00)

1
Out of stock

11

WASHER, WAVE

10L-24518-00-00

1

$6.46

In stock

12

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

13

O-RING, FUEL COCK

3H3-24534-00-00

1

$12.27

In stock

14

. GASKET

3H3-24522-00-00

1
Out of stock

15

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

16

O-RING

2W6-24512-00-00

—

$6.72

In stock

17

NET, FILTER 1

3Y1-24514-00-00

—

$40.38

In stock

18

SCREW 256241430000

90149-06011-00

—

$1.58

In stock

19

WASHER, PLATE(3MB)

90202-05187-00

—

$1.32

In stock

20

PIPE, FUEL 1

3Y6-24311-00-00

—

$9.00

In stock

21

CLIP

90467-100A1-00

—
Out of stock

22

HOSE

(90445-09499-00)

1
Out of stock

23

CLIP 101235600

90467-08003-00

—

$6.13

In stock

24

CAP ASSY

4X7-24602-10-00

—

$121.83

In stock

25

EMBLEM 1

3Y6-24161-00-00

1
Out of stock

26

EMBLEM 2

3Y6-24162-00-00

1
Out of stock

27

SCREW (2F0)

90152-04006-00

—

$0.17

In stock
