1981 Yamaha SR250TH (SR250TH) Valve Diagram

← All diagrams

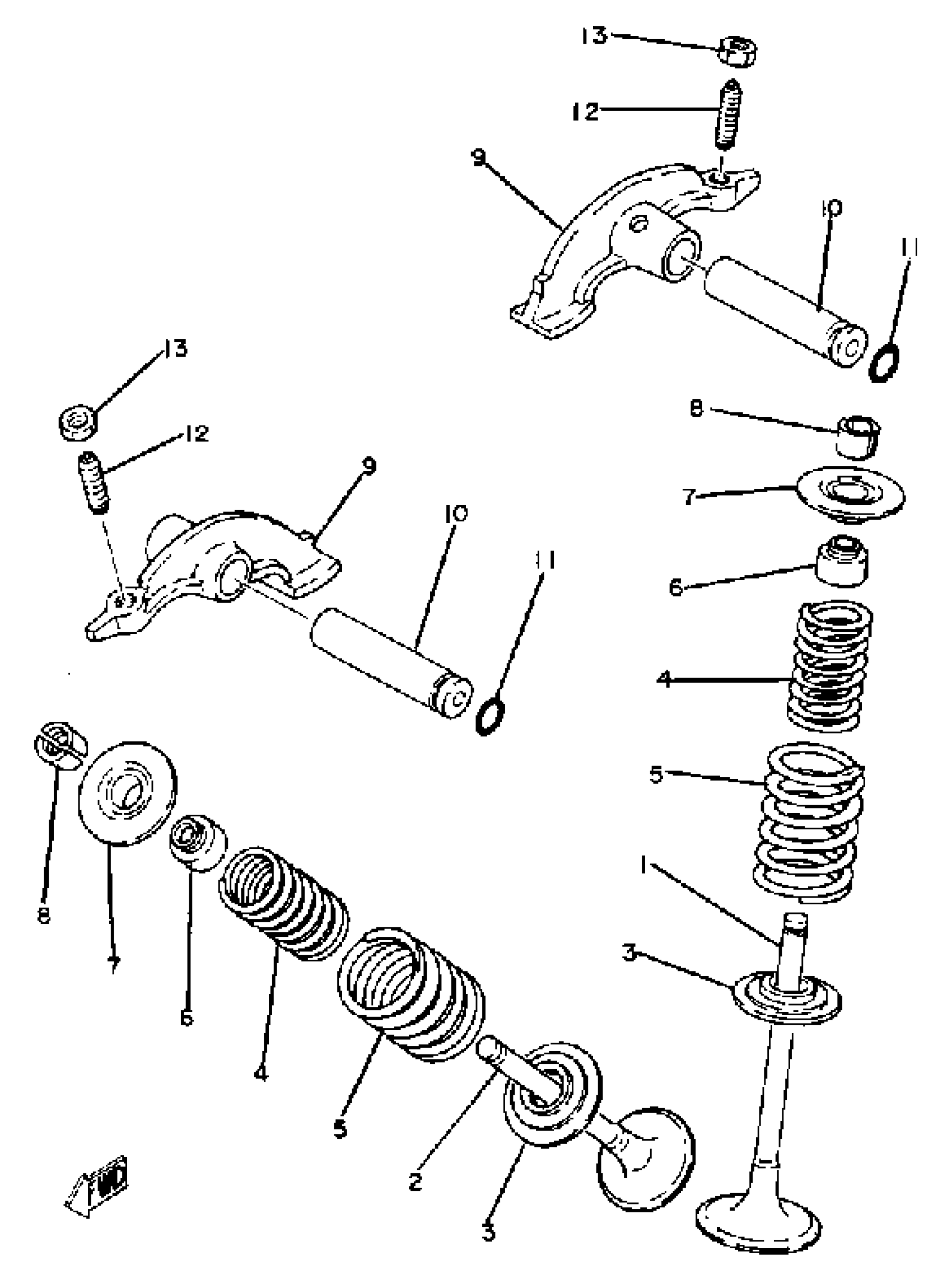

Find the part on the Valve diagram for your 1981 Yamaha SR250TH (SR250TH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha SR250TH (SR250TH) Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

VALVE, INTAKE

3Y1-12111-01-00

—

$77.62

In stock

2

VALVE, EXHAUST

3Y1-12121-01-00

1

$90.89

In stock

3

SEAT, VALVE SPRING

3Y1-12116-00-00

1
Out of stock

4

SPRING, VALVE INNER

3Y1-12113-01-00

—

$15.11

In stock

5

SPRING, VALVE OUTER

3Y1-12114-01-00

1

$32.66

In stock

6

SEAL, VALVE STEM OIL

1J7-12119-01-00

1
Out of stock

7

RETAINER, VALVE SPRING

3Y1-12117-01-00

1
Out of stock

8

LOCK, VALVE SPRING

1J7-12118-00-00

1
Out of stock

9

ARM, ROCKER (XT/SR/TT250)

99999-01443-00

1

$165.57

In stock

10

SHAFT, ROCKER

3Y1-12156-00-00

1
Out of stock

11

O-RING (1J7)

93210-09350-00

1

$5.82

In stock

12

SCREW, VALVE ADJUSTING

2NX-12159-00-00

1

$10.23

In stock

13

NUT HEXAGON 371121580000

90170-06128-00

1

$6.17

In stock
