1981 Yamaha SR250TH (SR250TH) Intake Diagram

← All diagrams

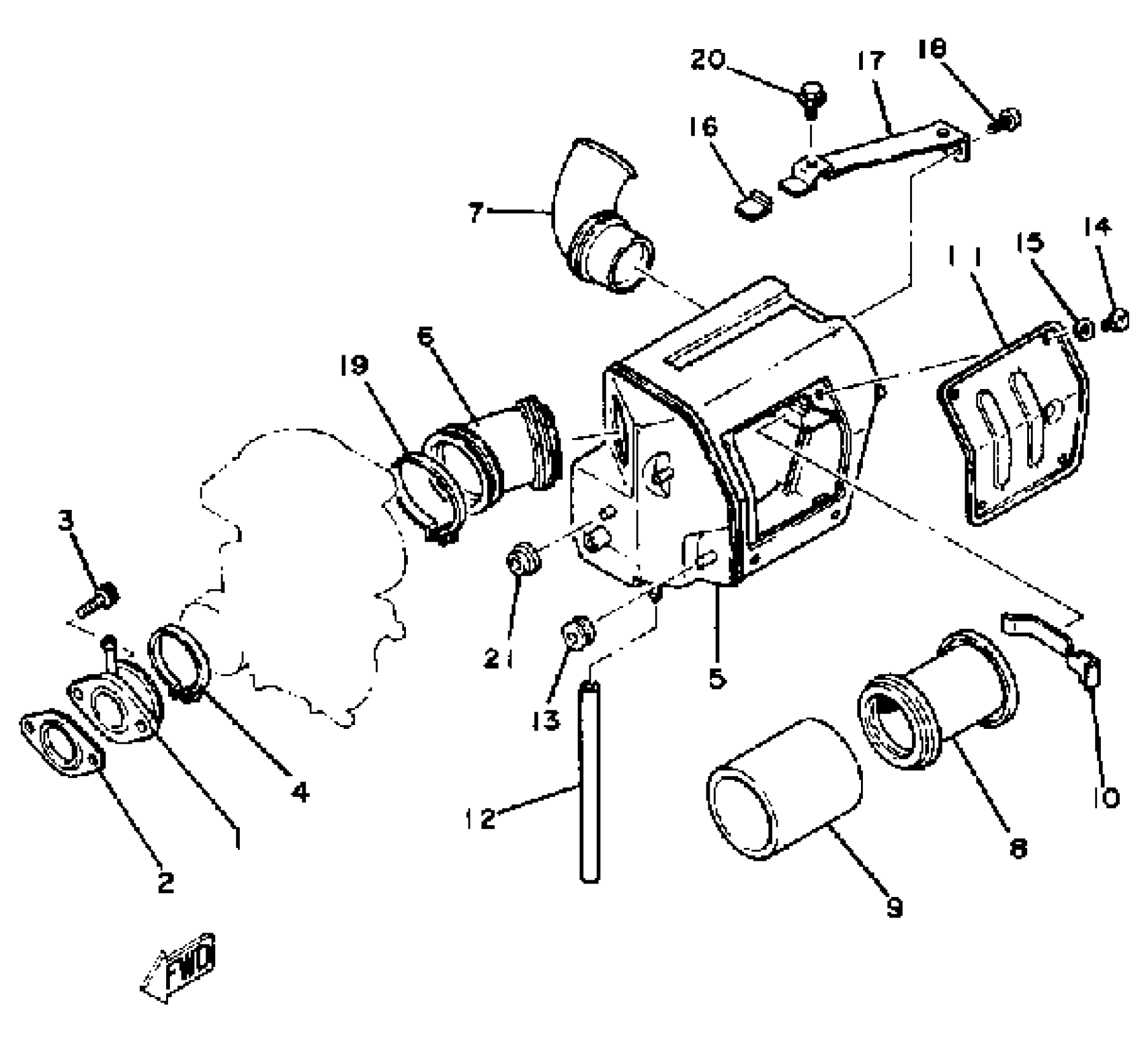

Find the part on the Intake diagram for your 1981 Yamaha SR250TH (SR250TH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha SR250TH (SR250TH) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR 1

3Y6-13586-00-00

—

$36.42

In stock

2

GASKET, MANIFOLD

3HT-13556-00-00

1

$9.89

In stock

3

BOLT,SOCKET

91317-06020-00

—

$2.11

In stock

4

HOSE CLAMP ASSY

90450-54008-00

1
Out of stock

5

AIR CLEANER CASE ASSY

3Y6-14401-00-00

—

$153.02

In stock

6

JOINT, AIR CLNR 1

3Y6-14453-00-00

1
Out of stock

7

DUCT

3Y6-14437-00-00

1
Out of stock

8

GUIDE

3Y6-14458-00-00

1

$28.52

In stock

9

ELEMENT,AIR CLNR

3Y6-14451-01-00

—
Out of stock

10

PLATE, ELEMENT FITTING

3Y6-14468-01-00

1

$4.58

In stock

11

CAP ASSY, AIR CLEANER

3Y6-14402-00-00

—

$30.00

In stock

12

TUBE, FLEXIBLE(3NV)

91A21-07020-00

1

$8.95

In stock

13

DAMPER, SIDE COVER (437)

90480-12053-00

1

$5.78

In stock

14

SCREW, HEXAGON (3Y8)

90153-05030-00

1
Out of stock

15

WASHER, PLAIN (646)

92990-05600-00

1
Out of stock

16

GROMMET

90480-16185-00

—

$6.68

In stock

17

STAY 1

(3Y6-14498-00-00)

1
Out of stock

18

SCREW, PAN TAP.2 SLIT

97707-40610-00

—
Out of stock

19

HOSE CLAMP ASSY

90450-58002-00

—

$15.11

In stock

20

BOLT, FLANGE

95812-06010-00

—

$2.75

In stock

21

GROMMET(41Y)

90480-01401-00

—

$5.51

In stock
