1981 Yamaha SR185H (SR185H) Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 1981 Yamaha SR185H (SR185H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

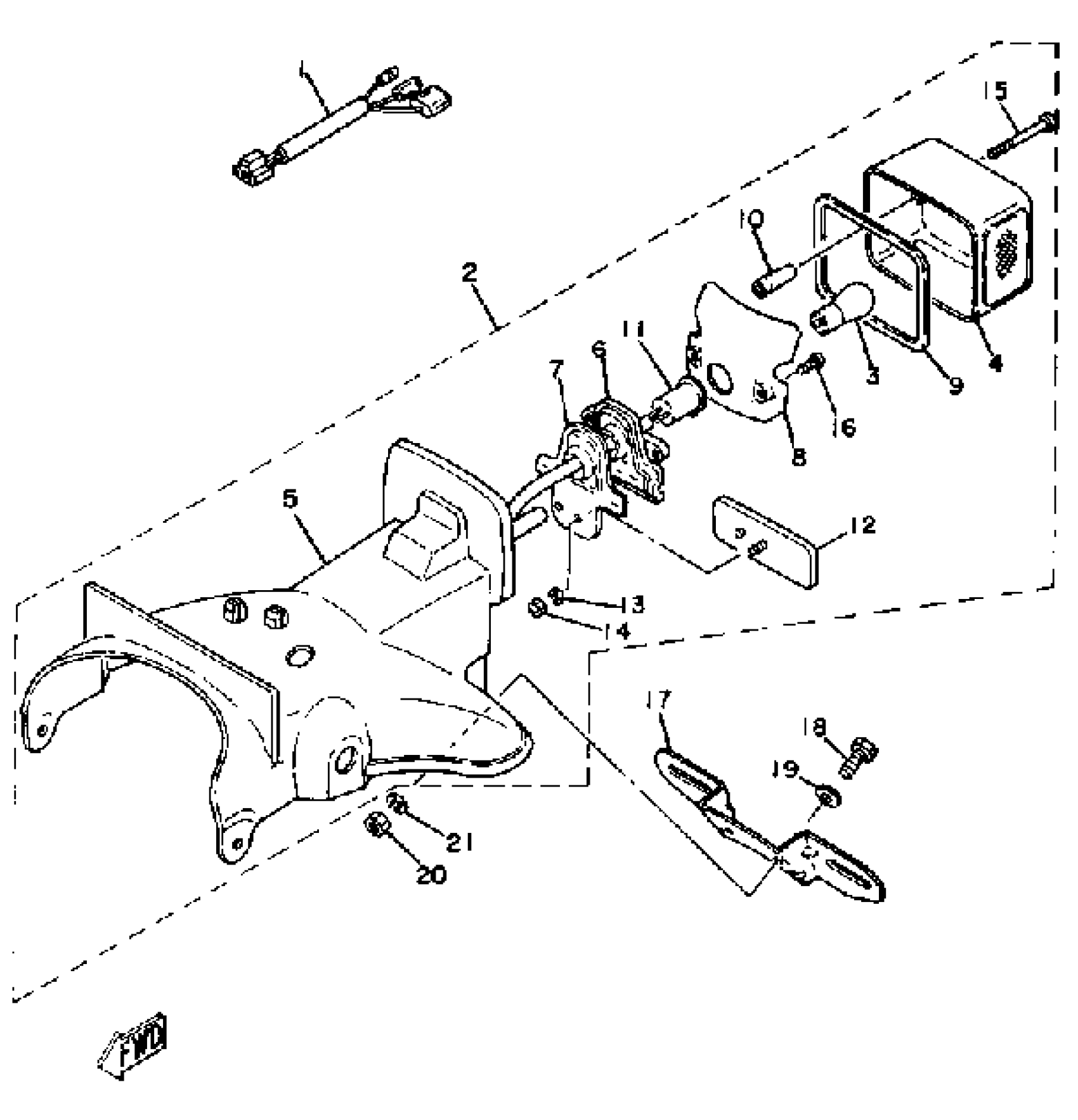

1981 Yamaha SR185H (SR185H) Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CORD, HEADLIGHT

(5H0-84359-01-00)

1
Out of stock

2

TAILLIGHT ASSEMBLY

(5H0-84700-60-63)

1
Out of stock

2

TAILLIGHT ASSEMBLY

(5H0-84700-60-6J)

1
Out of stock

3

1

$10.02

In stock

4

LENS, TAIL LAMP

1M1-84521-60-00

1

$35.69

In stock

5

FENDER, REAR

(5H0-21611-00-33)

1
Out of stock

5

FENDER, REAR

(5H0-21611-00-33)

1
Out of stock

6

. SEAT, BASE

5H0-84712-00-00

1
Out of stock

7

HOLDER, BASE SEAT

(5H0-84713-00-00)

1
Out of stock

8

REFLECTER, TAIL LIGHT

3Y1-84531-00-00

—

$10.54

In stock

9

SEAL

1VJ-14462-00-00

1

$16.08

In stock

10

SPACER

(5H0-84729-00-00)

1
Out of stock

11

SOCKET CORD

(5H0-84719-00-00)

1
Out of stock

12

REAR REFLECTOR ASSY

3Y6-85130-02-00

1

$22.72

In stock

13

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

14

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

15

SCREW, LENS FITTING

3Y1-84524-00-00

—
Out of stock

16

SCREW, TAPPING

97780-40116-00

1

$3.79

In stock

17

BRACKET, LICENSE

5H0-84751-00-00

1
Out of stock

18

BOLT, HEXAGON

97017-06016-00

—

$6.18

In stock

19

WASHER(6TA)

92907-06600-00

—

$0.78

In stock

20

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

21

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
