1981 Yamaha SR185H (SR185H) Flasher Light Diagram

← All diagrams

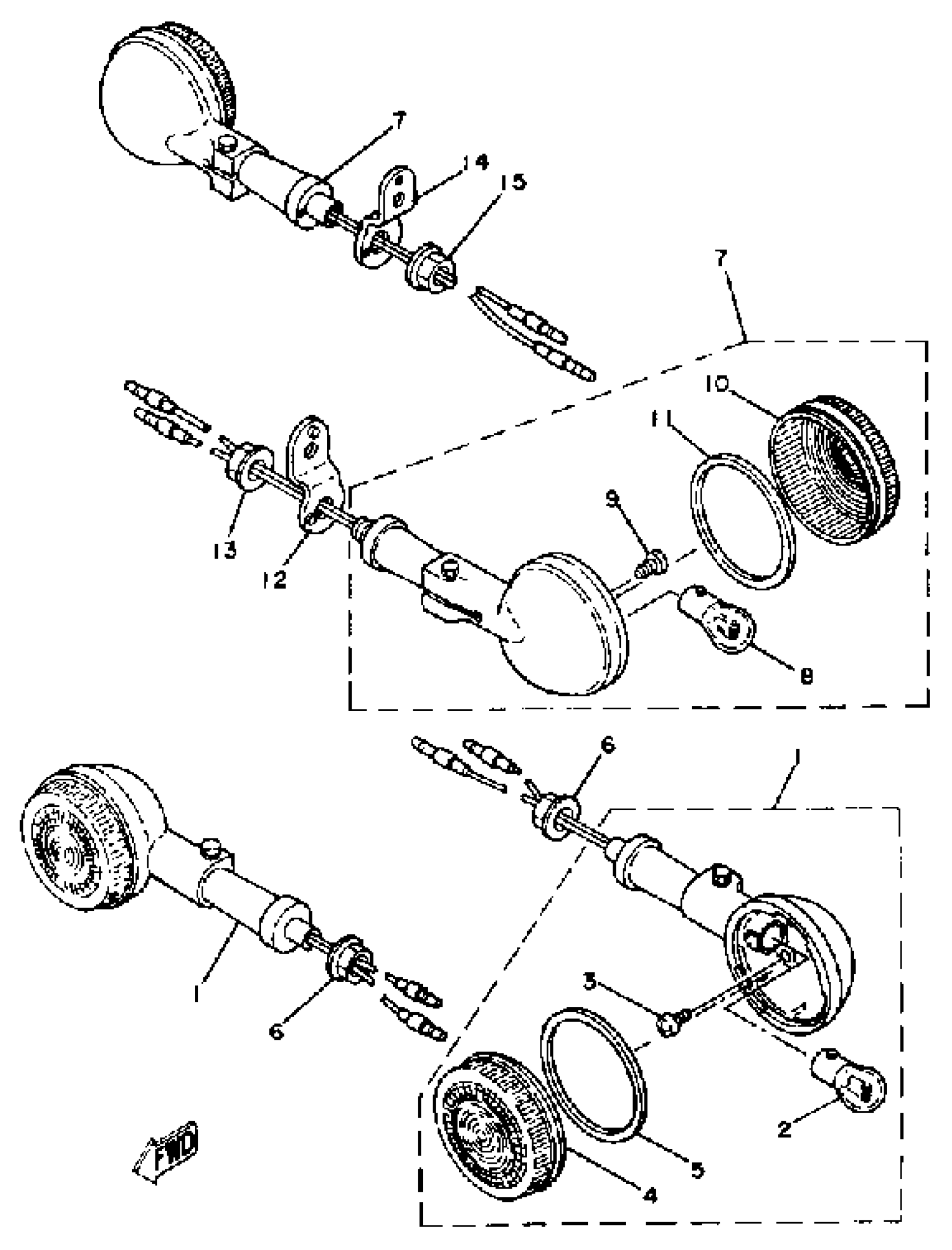

Find the part on the Flasher Light diagram for your 1981 Yamaha SR185H (SR185H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha SR185H (SR185H) Flasher Light Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRT FLSHR LITE ASSEMBLY

5H0-83310-70-00

1
Out of stock

2

. BULB (12V-32CP)

256-83311-70-XX

1
Out of stock

3

SCREW, PAN TAP.2 SLIT

97707-40610-00

1
Out of stock

4

LENS, FLASHER

3Y6-83312-00-00

1

$9.49

In stock

5

GASKET, FLASHER LENS

3Y6-83313-00-00

1

$6.58

In stock

6

NUT(3GG)

90179-12588-00

1

$5.65

In stock

7

REAR FLASHER LIGHT ASSY 1

3Y6-83330-70-00

—

$85.57

In stock

8

. BULB (12V-32CP)

256-83311-70-XX

1
Out of stock

9

SCREW, PAN TAP.2 SLIT

97707-40610-00

1
Out of stock

10

LENS, FLASHER

3Y6-83312-00-00

1

$9.49

In stock

11

GASKET, FLASHER LENS

3Y6-83313-00-00

1

$6.58

In stock

12

STAY, FLASHER 1

5H0-83318-00-00

1
Out of stock

13

NUT(3GG)

90179-12588-00

1

$5.65

In stock

14

STAY, FLASHER 2

5H0-83328-00-00

1
Out of stock

15

NUT(3GG)

90179-12588-00

1

$5.65

In stock
