1981 Yamaha SR185H (SR185H) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1981 Yamaha SR185H (SR185H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

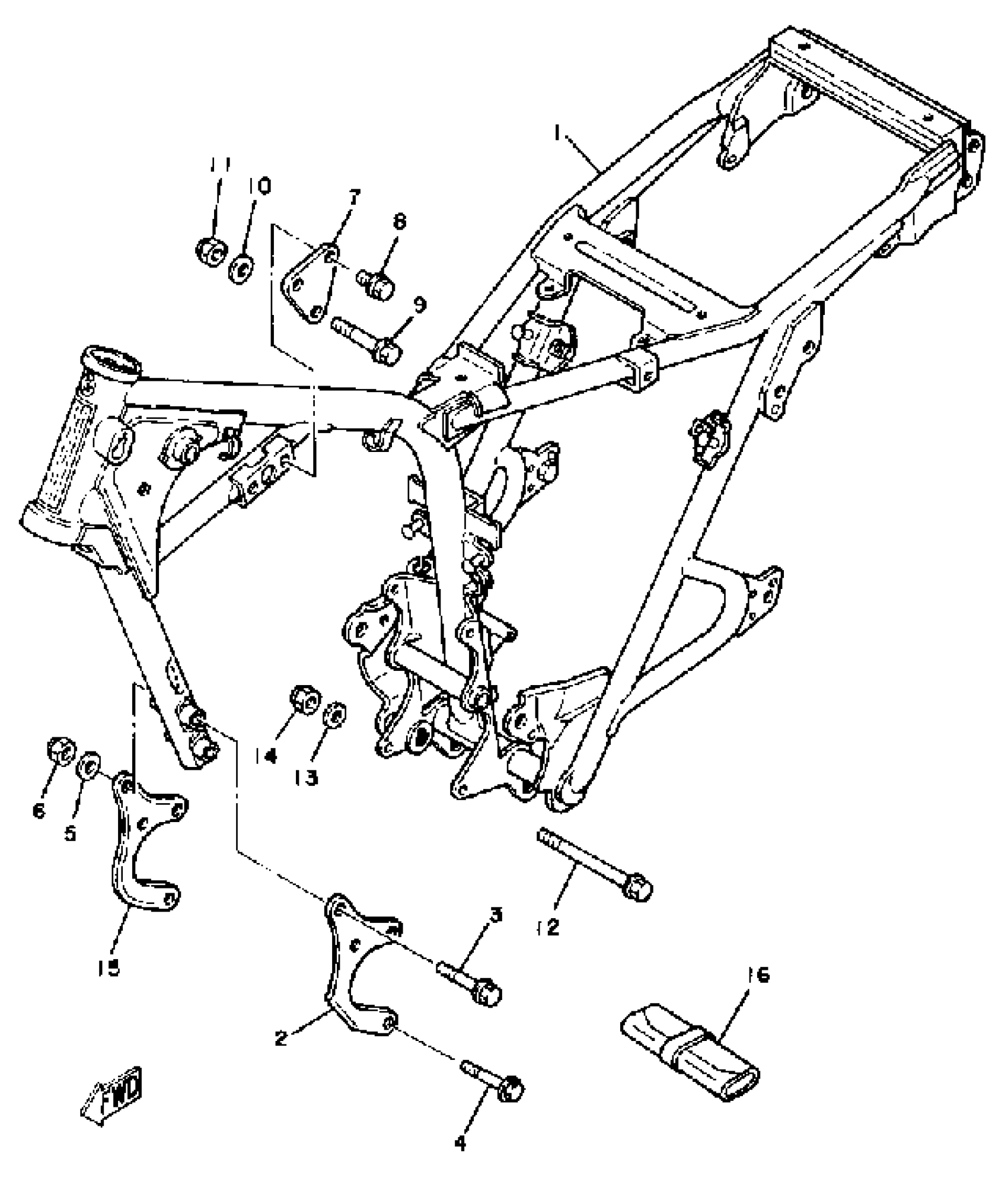

1981 Yamaha SR185H (SR185H) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(11E-21110-00-33)

1
Out of stock

2

STAY, ENGINE 3

(5H0-21316-00-00)

1
Out of stock

3

BOLT, FLANGE

95814-08065-00

1

$3.54

In stock

4

BOLT, FLANGE

95814-08065-00

1

$3.54

In stock

5

WASHER, PLATE (33N)

90201-094G1-00

1

$6.98

In stock

6

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1

$7.31

In stock

7

STAY, ENGINE 2

(5H0-21315-00-00)

1
Out of stock

8

BOLT, FLANGE

(95812-08014-00)

1
Out of stock

9

BOLT, FLANGE

95817-08050-00

1

$3.15

In stock

10

WASHER, PLATE (33N)

90201-094G1-00

1

$6.98

In stock

11

BOLT, FLANGE(2UJ)

95814-08110-00

1

$5.66

In stock

13

WASHER, PLATE (33N)

90201-094G1-00

1

$6.98

In stock

14

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1

$7.31

In stock

15

STAY, ENGINE 4

(5H0-21317-00-00)

1
Out of stock

16

TOOL KIT

36X-W2810-00-00

—

$88.60

In stock
