1981 Yamaha SR185H (SR185H) Stand Footrest Diagram

← All diagrams

Find the part on the Stand Footrest diagram for your 1981 Yamaha SR185H (SR185H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

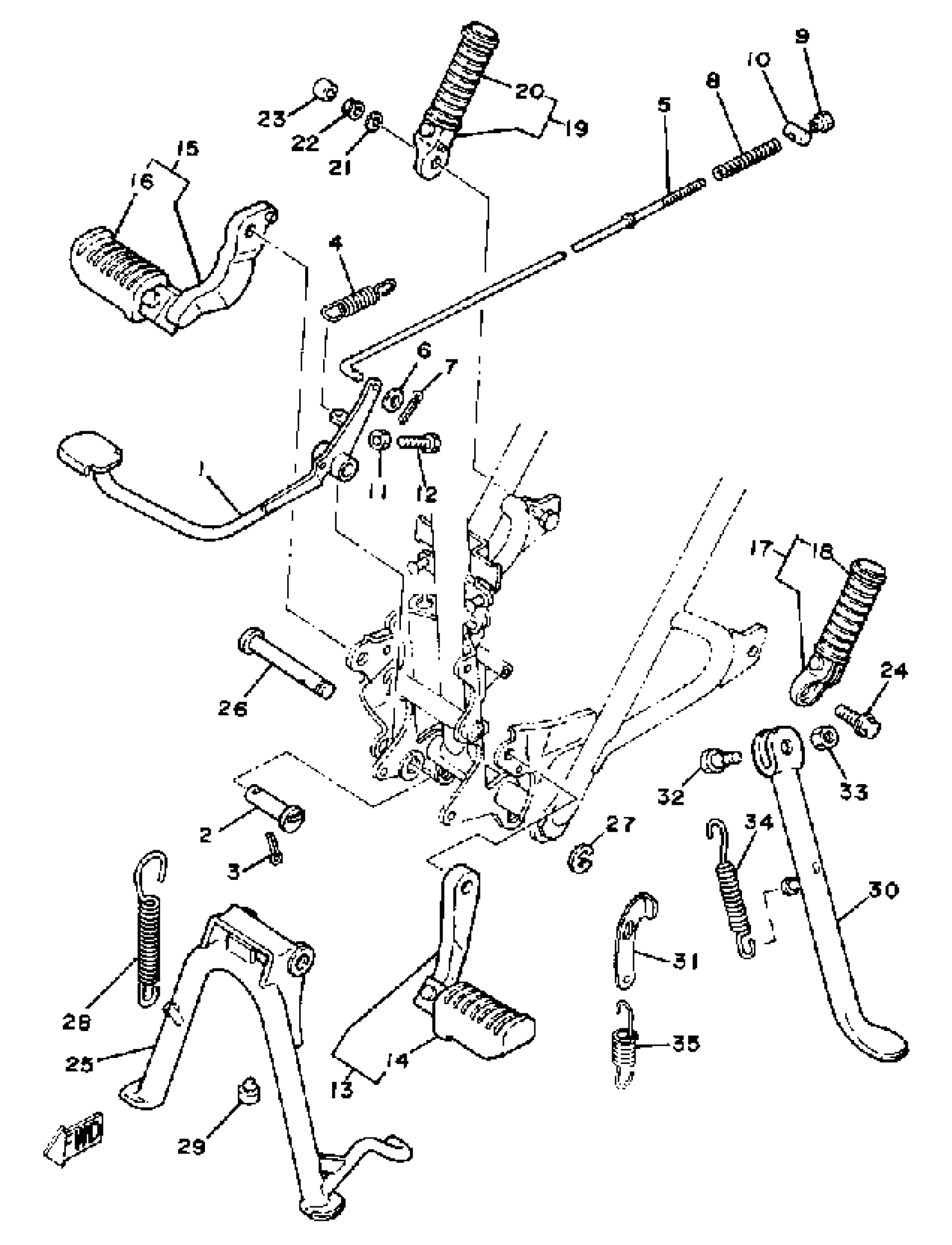

1981 Yamaha SR185H (SR185H) Stand Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL, BRAKE

5H0-27211-00-93

1
Out of stock

2

SHAFT, BRAKE PEDAL

(5H0-27212-00-00)

1
Out of stock

3

PIN, COTTER

91490-30030-00

1

$7.15

In stock

4

SPRING, HOOK (888)

90506-20115-00

—
Out of stock

5

ROD, BRAKE

3Y6-27231-00-00

1
Out of stock

6

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

7

PIN, COTTER

91490-20025-00

1

$1.31

In stock

8

SPRING, (180-27236-00)

90501-10245-00

1

$6.17

In stock

9

NUT (25K)

90179-06411-00

1

$5.10

In stock

10

PIN 1562723700

90249-12008-00

1

$4.70

In stock

11

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

12

BOLT HEXAGON 167253790000

90101-06016-00

1

$6.37

In stock

13

FRT FOOTREST ASSEMBLY L

5H0-27410-00-R4

1
Out of stock

14

COVER, FOOTREST

5H0-27413-00-00

—

$21.78

In stock

15

FRT FOOTREST ASSEMBLY R

5H0-27420-00-R4

1
Out of stock

16

COVER, FOOTREST

5H0-27413-00-00

—

$21.78

In stock

17

RR FOOTREST ASSEMBLY 1

5H0-27430-00-00

1
Out of stock

18

COVER, REAR FOOTREST

120-27433-00-00

—

$7.51

In stock

19

RR FOOTREST ASSEMBLY 2

(5H0-27440-00-00)

1
Out of stock

20

COVER, REAR FOOTREST

120-27433-00-00

—

$7.51

In stock

21

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

22

NUT, FLANGE(3BM)

95704-10500-00

—

$1.71

In stock

23

CAP, TOOL BOX

262-21399-00-00

1
Out of stock

24

BOLT, FLANGE(3HP)

95817-10016-00

—

$6.17

In stock

25

STAND, MAIN

(5H0-27111-00-R4)

1
Out of stock

26

SHAFT, MAIN STAND

(5H0-27112-00-00)

1
Out of stock

27

CIRCLIP (122)

93430-12008-00

—

$5.10

In stock

28

SPRING, TENSION

(90506-40268-00)

1
Out of stock

29

STOPPER, MAIN STAND

371-27114-00-00

—

$5.80

In stock

30

STAND, SIDE

5H0-27311-01-00

—

$50.68

In stock

31

LINK, SIDE STAND

5H0-27315-00-00

1
Out of stock

32

BOLT 122273170100

90109-08032-00

—
Out of stock

33

NUT

90185-08055-00

—

$8.31

In stock

34

SPRING, TENSION (4K0)

90506-18224-00

—

$4.20

In stock

35

SPRING, TENSION (4K0)

90506-26225-00

—
Out of stock
