1981 Yamaha SR185H (SR185H) Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1981 Yamaha SR185H (SR185H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

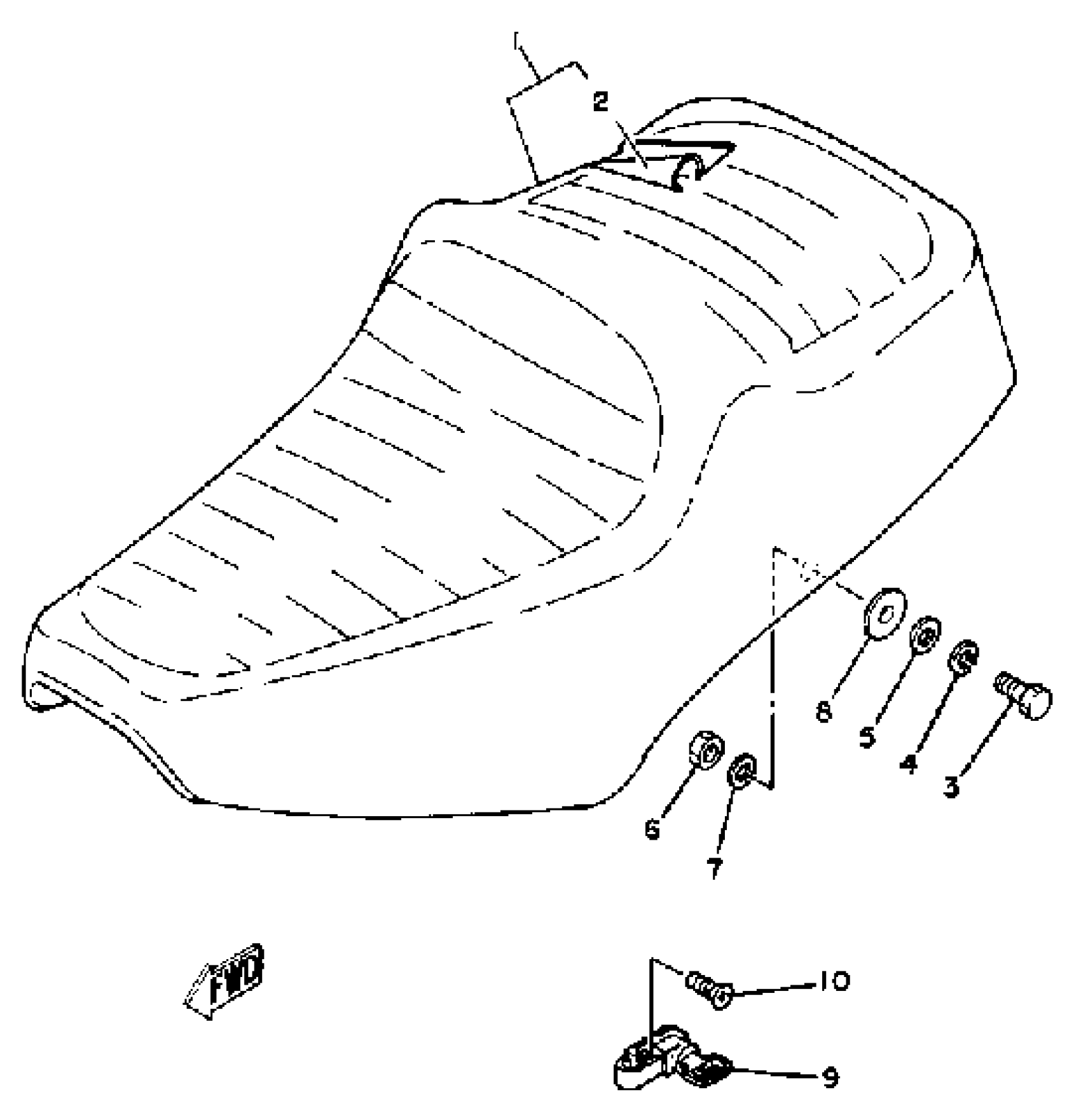

1981 Yamaha SR185H (SR185H) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DOUBLE SEAT ASSEMBLY

(5H0-24730-00-00)

1
Out of stock

2

. COVER, DOUBLE SEAT

5H0-24731-00-00

1
Out of stock

3

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

4

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

5

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

6

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

7

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

8

COLLAR

90387-08564-00

1
Out of stock

9

HELMET HANGER ASSY

5H0-21308-01-00

1
Out of stock

10

SCREW, FLAT

98707-06014-00

1
Out of stock
