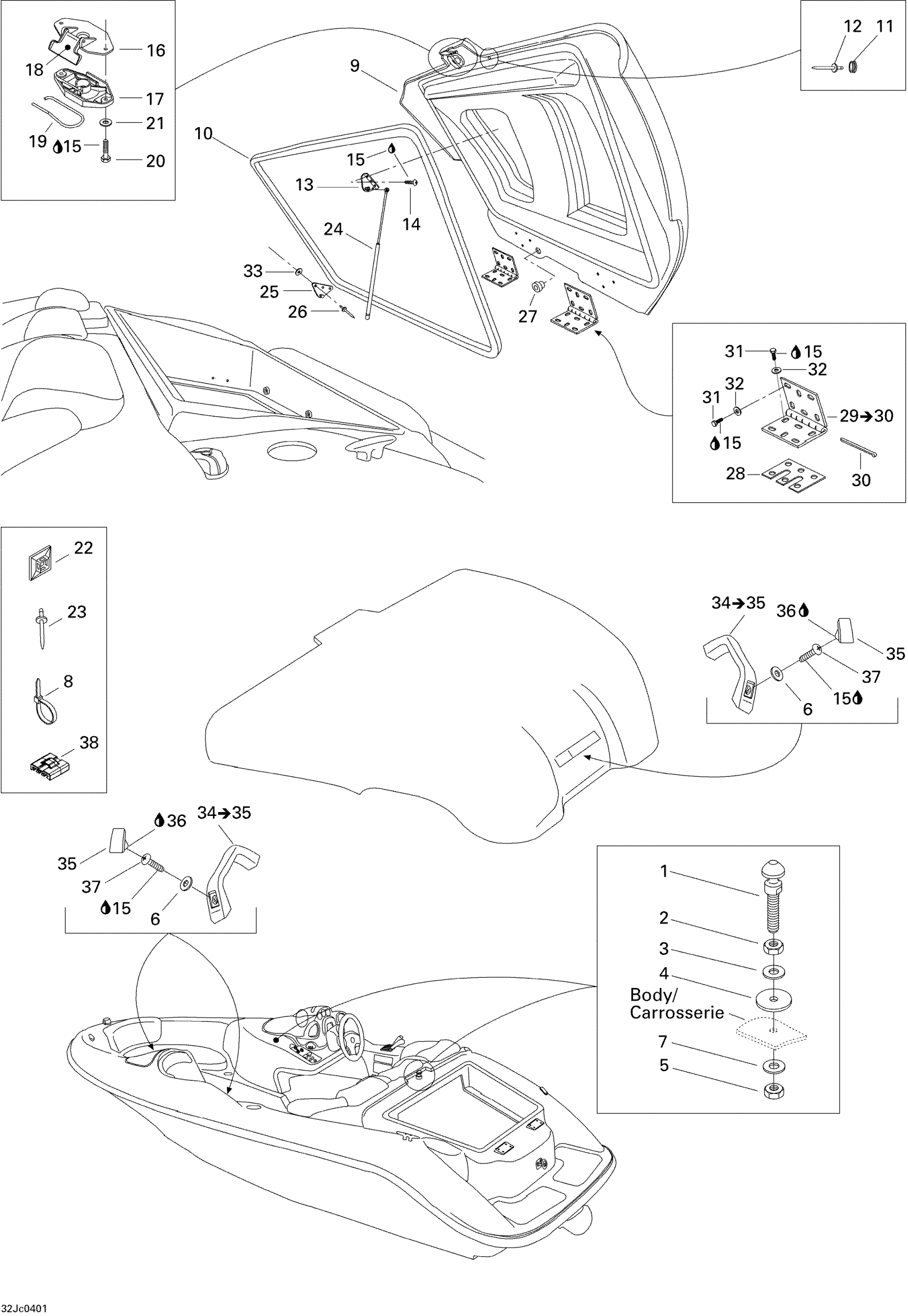

Sea-doo Sportster LE DI, 2004 Engine Compartment Diagram
#
1
Latch Stud
204100065
Unavailable
2
Hex. Jam Nut M10
232100600
Unavailable
3
Flat Washer 10 mm, Stainless
234002600
Unavailable
4
RUBBER WASHER - Call your local BRP dealership
291000628
Unavailable
5
HEX. ELASTIC NUT M10 - Call your local BRP dealership
232501600
Unavailable
6
Stainless Flat Washer M6
234061600
Unavailable
7
Flat Washer 10 mm, Stainless
234002600
Unavailable
8
Tie-Rap 180 mm
414115200
Unavailable
Tie Wrap 142 mm
293750002
Unavailable
Tie Wrap 368 mm
293750008
Unavailable
9
Engine Cover
204071472
Unavailable
10
Was 293200017 Neoprene Seal
219704365
Unavailable
11
BOTTOM SNAP - Call your local BRP dealership
204000084
Unavailable
12
Pop Rivet 1/8”
293150015
Unavailable
13
Shock Bracket
204073074
Unavailable
14
Hex. Screw M4 X 16 | Europe
207141660
Unavailable
15
Loctite 243, 10 ml
293800060
Unavailable
16
Latch Ass'y
269700109
Unavailable
17
Latch Ass'y
269700109
Unavailable
18
Latch Ass'y
269700109
Unavailable
19
Latch Spring
269700017
Unavailable
20
Hex. Screw M6 X 25
207162560
Unavailable
21
Stainless Flat Washer M6
234061600
Unavailable
22
TIE RAP MOUNT - Call your local BRP dealership
293750015
Unavailable
23
Pop RIvet 1/8 X ,375
293150285
Unavailable
24
GAS SHOCK - Call your local BRP dealership
204071874
Unavailable
25
Shock Bracket
204071673
Unavailable
26
Pop Rivet 3/16"
293150043
Unavailable
27
GROMMET - Call your local BRP dealership
293720017
Unavailable
28
SPACER 3.2 MM - Call your local BRP dealership
204070047
Unavailable
29
HINGE ASS'Y - Call your local BRP dealership | Includes 19 to 21
204070127
Unavailable
30
Cotter Pin M2.5 X 12
204070205
Unavailable
31
Hex. Screw M6 X 25
207162560
Unavailable
32
Stainless Flat Washer M6
234061600
Unavailable
33
Flat Washer M5, Stainless
234051600
Unavailable
34
Grip Handle | Includes 6 to 7
204070045
Unavailable
35
Snap Cap
204070056
Unavailable
36
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
Unavailable
37
SOCKET SCREW M6 X 25 - Call your local BRP dealership
205462560
Unavailable
38
Tie-Rap Mount
293750025
Unavailable
