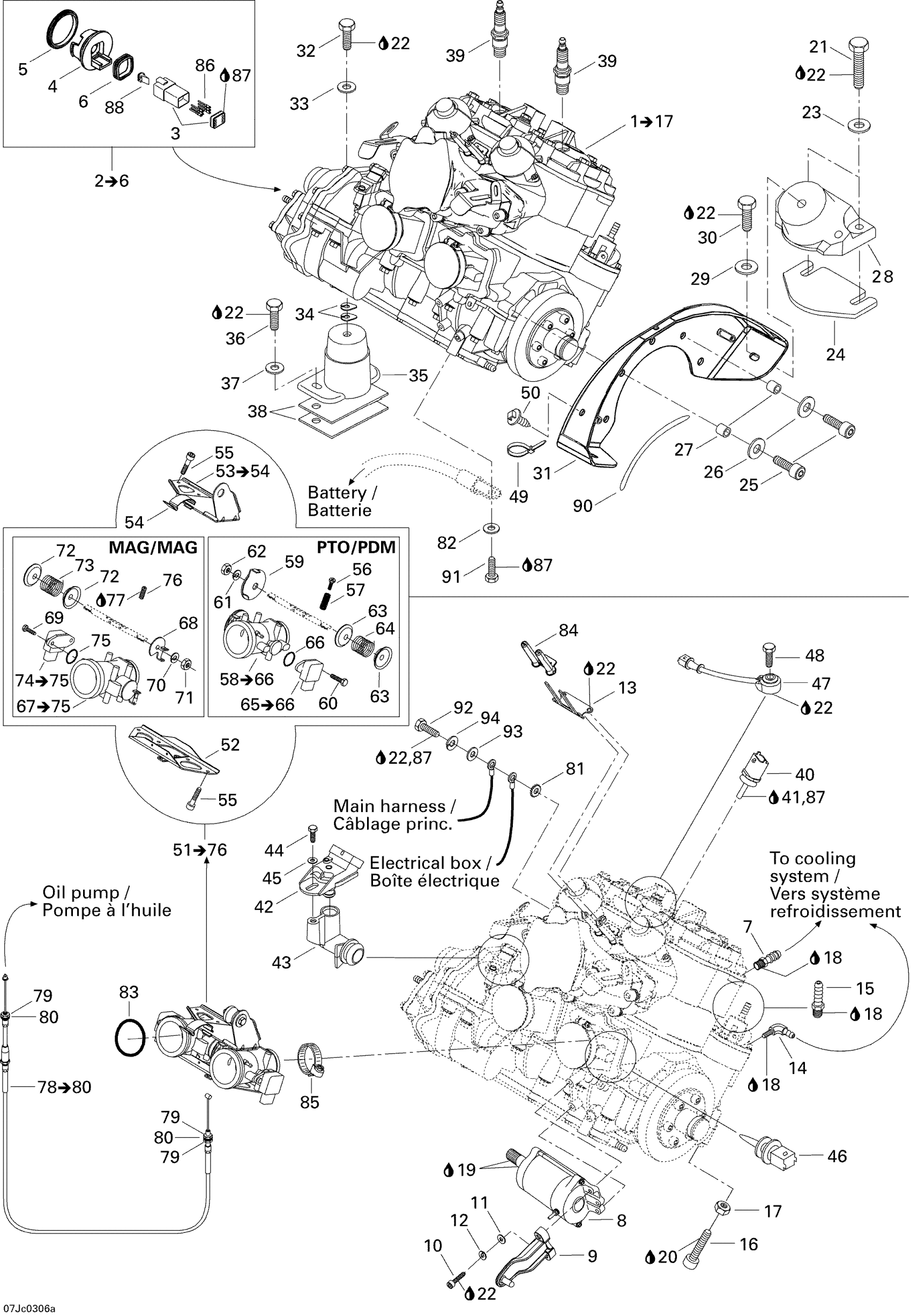

Sea-doo Sportster LE DI, 2004 Engine Support Diagram

#

Description
Price

1

Rotax Engine 947 DI (Silver) | INCLUDES 1 TO 7

270000536

Unavailable

2

Adaptor Ass'y | Includes 3 to 7

707000031

Unavailable

3

Male Terminal Housing, 6 Circuits

710001539

$15.57

4

Adaptor Ass'y | Includes 3 to 7

707000031

Unavailable

5

Gasket

293300033

Unavailable

6

Gasket

293200055`

Unavailable

7

MALE CONNECTOR - Call your local BRP dealership

293710066

Unavailable

8

Starter Ass'y, Black

278001937

$232.02

9

Silencer Support

273000123

Unavailable

10

Socket Head Screw M6 X 35

205063560

$1.85

11

Stainless Flat Washer M6

234061600

$0.25

12

Lock Washer Helical M6

234161601

$0.92

13

GROUND PLATE - Call your local BRP dealership

278001662

Unavailable

14

Elbow Fitting

293700016

Unavailable

15

STRAIGHT FITTING - Call your local BRP dealership | Grand Touring 500.

293710082

Unavailable

16

Socket Screw M10 X 30

205003060

Unavailable

17

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

18

Was 293800013 Loctite 56765

219704454

$63.40

19

Synthetic Grease, 400 G

293550010

Unavailable

20

Loctite 271, 10 ml

293800005

$20.77

21

Hex. Screw M8 X 40

207184060

$1.85

22

Loctite 243, 10 ml

293800060

$20.77

23

Stainless, Flat Washer 8 mm

234081600

$0.46

24

Shim 0.3 mm

270000122

Unavailable

SHIM 1.3 MM - Call your local BRP dealership

270000123

Unavailable

25

Socket Head Screw M8 X 25, Scotch Grip

205582560

$1.73

26

Stainless, Flat Washer 8 mm

234081600

$0.46

27

BUSHING - Call your local BRP dealership

270000453

Unavailable

28

Rubber Mount, Black

270000421

Unavailable

29

Flat Washer 8 mm, Stainless

234082600

$1.98

30

Hex. Screw M8 X 16

207181660

Unavailable

31

Engine Support, Black

270000515

Unavailable

32

HEX. SCREW M8 X 20 - Call your local BRP dealership

207182060

Unavailable

33

Flat Washer 8 mm, Stainless

234082600

$1.98

34

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

SHIM 0.4 MM - Call your local BRP dealership

270000024

Unavailable

35

Rubber Mount, Black

270000422

Unavailable

36

Hex. Screw M8 X 40

207184060

$1.85

37

Stainless, Flat Washer 8 mm

234081600

$0.46

38

Shim 0.3 mm

270000122

Unavailable

Shim 0.3 mm - Call your local BRP dealership

204250048

Unavailable

SHIM 1.3 MM - Call your local BRP dealership

270000123

Unavailable

SHIM 1.3 MM - Call your local BRP dealership This part replaces 204250049.

204250049

Unavailable

39

Spark Plug NGK Zfr4f-11

278001650

$4.63

40

Temperature Sensor

278002895

$31.82

41

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

42

Pressure Sensor

270600040

$157.92

43

VALVE ADAPTOR - Call your local BRP dealership

270600019

Unavailable

44

HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership

243041660

Unavailable

45

Flat Washer | XT

211200035

$0.46

46

AIR TEMPERATURE SENSOR - Call your local BRP dealership

270600000

Unavailable

47

Noise Sensor

270000484

$65.62

48

Hex. Screw M8 X 30

207183060

$1.30

49

Tie-Rap 180 mm

414115200

$0.09

50

Mount Dart

293730040

$0.86

51

Throttle Body Ass'y | INCLUDES 51 TO 76

270600052

Unavailable

52

Lower Support (Throttle Body)

270600026

Unavailable

53

Upper Support Ass'y (Throttle Body) | INCLUDES 53 TO 54

270600045

Unavailable

54

Latch Bracket

270600046

Unavailable

55

Socket Head Screw M5 X 10

205051060

$1.49

56

Adjuster Screw

270600047

Unavailable

57

Spring

270600048

Unavailable

58

Throttle Body (PTO) | INCLUDES 58 TO 66

270600053

Unavailable

59

Throttle Lever Ass'y

270600077

Unavailable

60

POTENTIOMETER SCREW M4 - Call your local BRP dealership

270600078

Unavailable

61

Lock Washer Helical M6

234161601

$0.92

62

Hex. Nut M6

232061600

$0.91

63

GUIDE SPRING - Call your local BRP dealership

270600079

Unavailable

64

Spring

270600080

Unavailable

65

Position Sensor

420866120

$77.97

66

O-Ring

270000544

$4.27

67

Throttle Body (MAG) | INCLUDES 67 TO 75

270600054

Unavailable

68

Pick-Up Lever

270600082

Unavailable

69

POTENTIOMETER SCREW M4 - Call your local BRP dealership

270600078

Unavailable

70

Lock Washer Helical M6

234161601

$0.92

71

Hex. Nut M6

232061600

$0.91

72

GUIDE SPRING - Call your local BRP dealership

270600079

Unavailable

73

Spring

270600083

Unavailable

74

Position Sensor

420866120

$77.97

75

O-Ring

270000544

$4.27

76

Idle Screw

270600049

Unavailable

77

Cover (Loctite Ultra Grey)

270600050

Unavailable

78

Injection Cable | Includes 28 to 30

270000546

$52.96

79

Hex. Nut M6

232160600

$1.04

80

Stainless Flat Washer M6

234061600

$0.25

81

External Serrated Lock Washer 6 mm

234461608

$0.92

82

Flat Washer 10 mm, Stainless

234001600

$0.91

83

O-Ring

293250065

Unavailable

84

INSULATOR - Call your local BRP dealership

278001512

Unavailable

85

Norma Clamp

293650079

$8.89

86

Male Terminal

278000631

$4.00

87

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

88

Female Lock, 6 Circuits

278000735

$2.93

89

OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.

779123

Unavailable

90

Was 271000110 Protection Trim

219704353

$14.58

91

Hex. Screw M10 X 20, Scotch Grip

207302060

$3.29

92

Hex. Screw M6 X 25

207162560

$1.22

93

Flat Washer M6, Stainless

234062600

$0.64

94

Lock Washer Helical M6

234161601

$0.92
