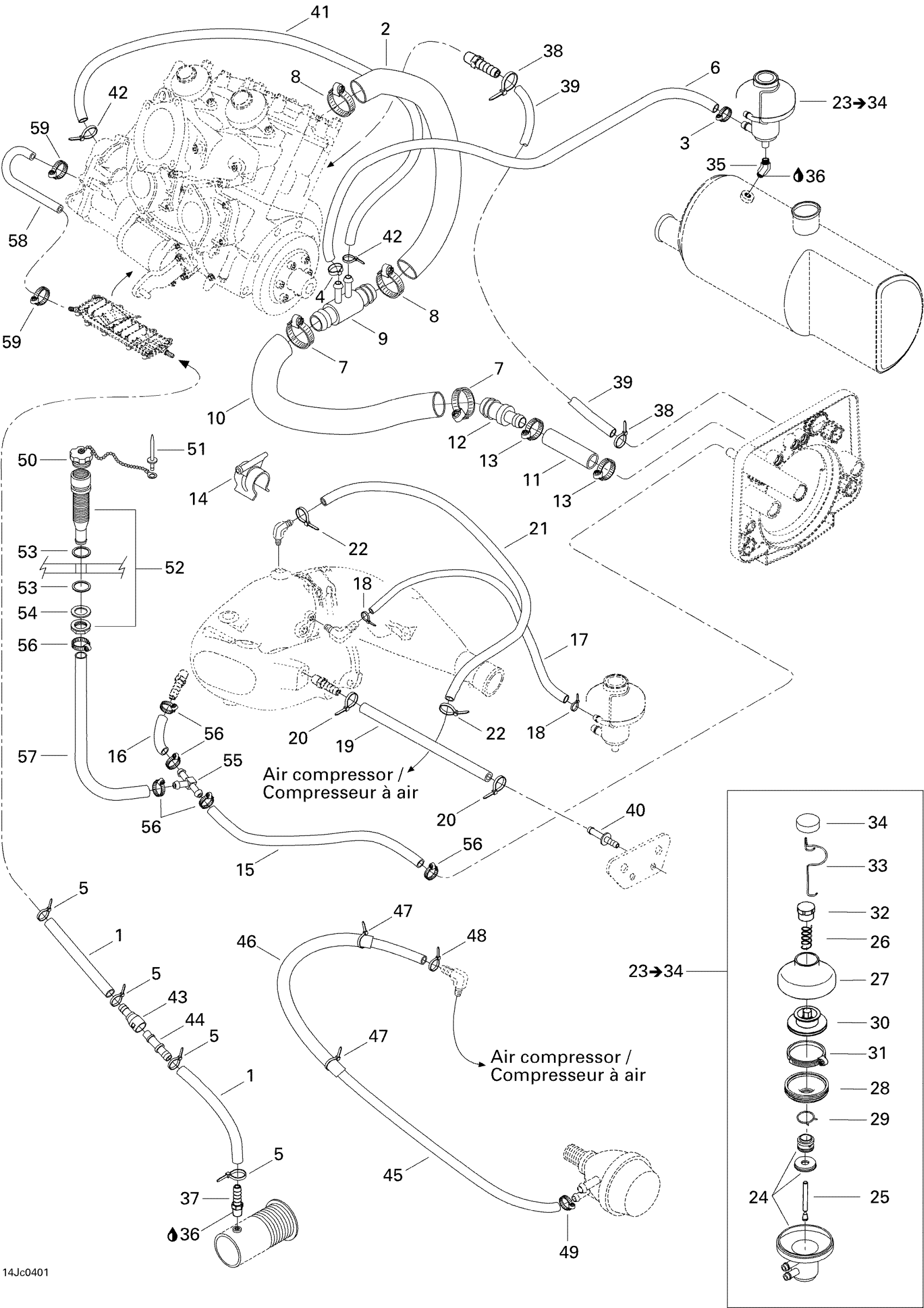

Sea-doo Sportster LE DI, 2004 Cooling System Diagram
#
1
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
Unavailable
2
FORMED HOSE - Call your local BRP dealership
276000098
Unavailable
3
Tridon Gear Clamp
293650171
Unavailable
4
Oetiker Gear Clamp
293650025
Unavailable
5
Tie Wrap 94 mm | 4X4
293750001
Unavailable
6
HOSE 5/16 - Call your local BRP dealership
275500548
Unavailable
7
Tridon Gear Clamp
293650051
Unavailable
8
Tridon Gear Clamp
293650051
Unavailable
9
DOUBLE FITTING - Call your local BRP dealership
293710102
Unavailable
10
Hose 19.0Mm. 2000Mm Long
219704361
Unavailable
11
Was 276000001 Hose 12.5 mm
219704394
Unavailable
12
Reducer fitting
204130060
Unavailable
13
Tridon Gear Clamp
293650172
Unavailable
14
COLLAR SUPPORT - Call your local BRP dealership
278000559
Unavailable
15
Was 276000001 Hose 12.5 mm
219704394
Unavailable
16
Was 276000001 Hose 12.5 mm
219704394
Unavailable
17
Hose 6 Mm 15000Mm Long
219704360
Unavailable
18
Tie Wrap 94 mm | 4X4
293750001
Unavailable
19
Hose 6 Mm 15000Mm Long
219704360
Unavailable
20
Tie Wrap 94 mm | 4X4
293750001
Unavailable
21
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
Unavailable
22
Tie Wrap 94 mm | 4X4
293750001
Unavailable
23
PRESSURE REGULATEUR - Call your local BRP dealership | Includes 23 to 34
274000898
Unavailable
24
Not Available As Spare Part - Friction Washer
Unavailable
25
FEEDING ROD - Call your local BRP dealership
274000423
Unavailable
26
SPRING 44 MM - Call your local BRP dealership
274000382
Unavailable
27
Valve Cover
420911552
Unavailable
28
Bellow
420260721
Unavailable
29
SPRING CLAMP - Call your local BRP dealership
420838190
Unavailable
30
Not Available As Spare Part - Friction Washer
Unavailable
31
Rivalair Clamp
293650065
Unavailable
32
Adjuster Screw
420241221
Unavailable
33
SPRING CLIP - Call your local BRP dealership
420838083
Unavailable
34
Cover Screw
274000903
Unavailable
35
MALE CONNECTOR - Call your local BRP dealership
293700033
Unavailable
36
Was 293800013 Loctite 56765
219704454
Unavailable
37
MALE CONNECTOR - Call your local BRP dealership
293710017
Unavailable
38
Tie Wrap 94 mm | 4X4
293750001
Unavailable
39
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
Unavailable
40
BLEED FITTING - Call your local BRP dealership
291000306
Unavailable
41
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
Unavailable
42
Tie Wrap 94 mm | 4X4
293750001
Unavailable
43
QUICK FEMALE FITTING - Call your local BRP dealership
275500436
Unavailable
44
Quick Male Fitting
275500435
Unavailable
45
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
Unavailable
46
Tubing 10 MM 1000MM Long
219704407
Unavailable
47
Tie Wrap 94 mm | 4X4
293750001
Unavailable
48
Tie Wrap 142 mm
293750002
Unavailable
49
Tridon Gear Clamp
293650170
Unavailable
50
PLUG - Call your local BRP dealership
293000055
Unavailable
51
RIVET_POP 1/8 X ,625 - Call your local BRP dealership
293150023
Unavailable
52
FITTING - Call your local BRP dealership
293710081
Unavailable
53
GASKET - Call your local BRP dealership
293250028
Unavailable
54
WASHER - Call your local BRP dealership
293050003
Unavailable
55
T-FITTING - Call your local BRP dealership
293710053
Unavailable
56
Tridon Gear Clamp
293650172
Unavailable
57
Was 276000001 Hose 12.5 mm
219704394
Unavailable
58
HOSE 5/16 - Call your local BRP dealership
275500548
Unavailable
59
Tridon Gear Clamp
293650171
Unavailable
