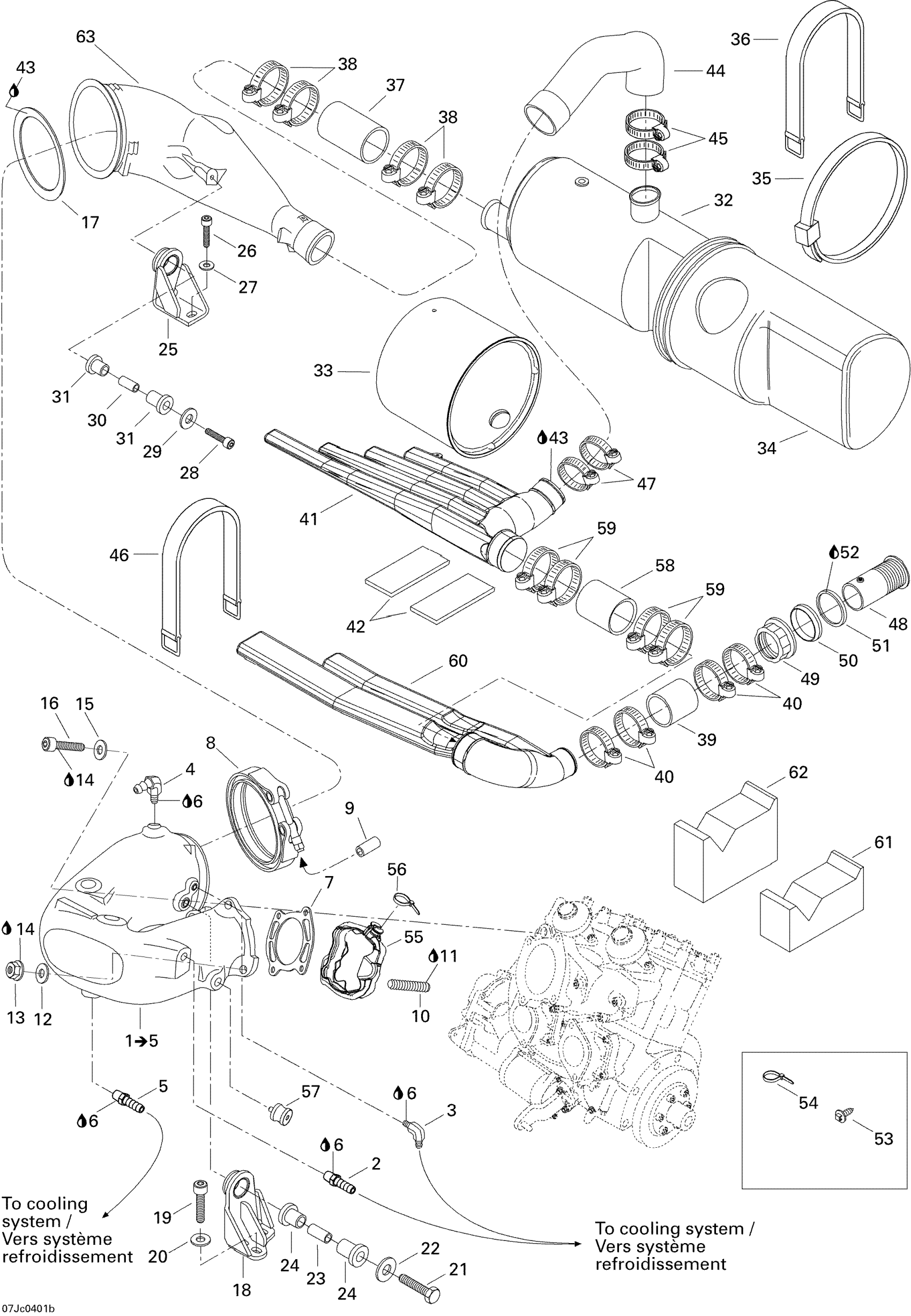

Sea-doo Sportster LE DI, 2004 Muffler Diagram
#
1
Head Pipe | INCLUDES 1 TO 5
274000927
Unavailable
2
Male Connector
293710037
Unavailable
3
Elbow Fitting 90°
293710048
Unavailable
4
Elbow Fitting
293700016
Unavailable
5
Male Connector | With Catalyst
293710021
Unavailable
6
Was 293800013 Loctite 56765
219704454
Unavailable
7
EXHAUST GASKET - Call your local BRP dealership
420931990
Unavailable
8
EXHAUST CLAMP - Call your local BRP dealership
274000510
Unavailable
9
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
Unavailable
10
STUD M10 X 5.1 X 55, SCOTCH GRIP - Call your local BRP dealership
250300008
Unavailable
11
Loctite 271, 10 ml
293800005
Unavailable
12
Flat Washer
211200051
Unavailable
13
Hex. Flange Nut M10
233101600
Unavailable
14
Loctite 243, 10 ml
293800060
Unavailable
15
Flat Washer
211200051
Unavailable
16
SOCKET HEAD SCREW M10 X 35, SCOTCH GRIP - Call your local BRP dealership
244003560
Unavailable
17
SEALING RING - Call your local BRP dealership
274000511
Unavailable
18
Pipe Support
274000890
Unavailable
19
SOCKET HEAD SCREW M8 X 30, SCOTCH GRIP - Call your local BRP dealership
244083060
Unavailable
20
FLAT WASHER M8.4 - Call your local BRP dealership
250200012
Unavailable
21
HEX. SCREW M10 X 40, SCOTCH GRIP - Call your local BRP dealership
245004060
Unavailable
22
Flat Washer 10 mm, Stainless
234002600
Unavailable
23
BUSHING - Call your local BRP dealership
274000861
Unavailable
24
RUBBER BUSHING - Call your local BRP dealership
293830065
Unavailable
25
Pipe Support
274000777
Unavailable
26
SOCKET HEAD SCREW M8 X 30, SCOTCH GRIP - Call your local BRP dealership
244083060
Unavailable
27
FLAT WASHER M8.4 - Call your local BRP dealership
250200012
Unavailable
28
Hex. Screw M10 X 40, Scotch Grip
244004060
Unavailable
29
Flat Washer 10 mm, Stainless
234002600
Unavailable
30
BUSHING - Call your local BRP dealership
274000861
Unavailable
31
RUBBER BUSHING - Call your local BRP dealership
293830065
Unavailable
32
MUFFLER - Call your local BRP dealership
274000826
Unavailable
33
MUFFLER COVER, FRONT - Call your local BRP dealership
274000796
Unavailable
34
Muffler Cover, Rear
274000799
Unavailable
35
WRAP_TIE 828 X 9 - Call your local BRP dealership
293750020
Unavailable
36
Retainer Strap
293850097
Unavailable
37
Exhaust Hose
274000896
Unavailable
38
Tridon Clamp
293650064
Unavailable
39
Exhaust Hose
274000616
Unavailable
40
Tridon Clamp
293650064
Unavailable
41
LH UPPER RESONATOR - Call your local BRP dealership
274000700
Unavailable
42
RUBBER PAD - Call your local BRP dealership
274000752
Unavailable
43
Sealant, Loctite, 80 ml | DS 650
293800090
Unavailable
44
Exhaust Hose
274000830
Unavailable
45
Tridon Clamp
293650064
Unavailable
46
Retainer Strap
293850097
Unavailable
47
Tridon Clamp
293650064
Unavailable
48
EXHAUST OUTLET - Call your local BRP dealership
274000222
Unavailable
49
Nut 72 mm
274000224
Unavailable
50
STABILIZING WASHER - Call your local BRP dealership
274000225
Unavailable
51
GASKET - Call your local BRP dealership
293250041
Unavailable
52
Silicone Sealant 51388, 300 ml
296000309
Unavailable
53
Mount Dart
293730040
Unavailable
54
Tie-Rap 180 mm
414115200
Unavailable
55
PICK UP ENVELOPE - Call your local BRP dealership
274000862
Unavailable
56
Tie Wrap 142 mm
293750002
Unavailable
57
Rubber Isolator
707000949
Unavailable
58
EXHAUST HOSE - Call your local BRP dealership
274000726
Unavailable
59
Tridon Clamp
204000079
Unavailable
60
RESONATOR EXTENSION - Call your local BRP dealership
274000701
Unavailable
61
Resonator Support, Rear
204340416
Unavailable
62
Front Resonator Support
204340417
Unavailable
63
EXHAUST CONE, BLACK - Call your local BRP dealership
274000871
Unavailable
