1983 Suzuki SP250 Cylinder Head Diagram

← All diagrams

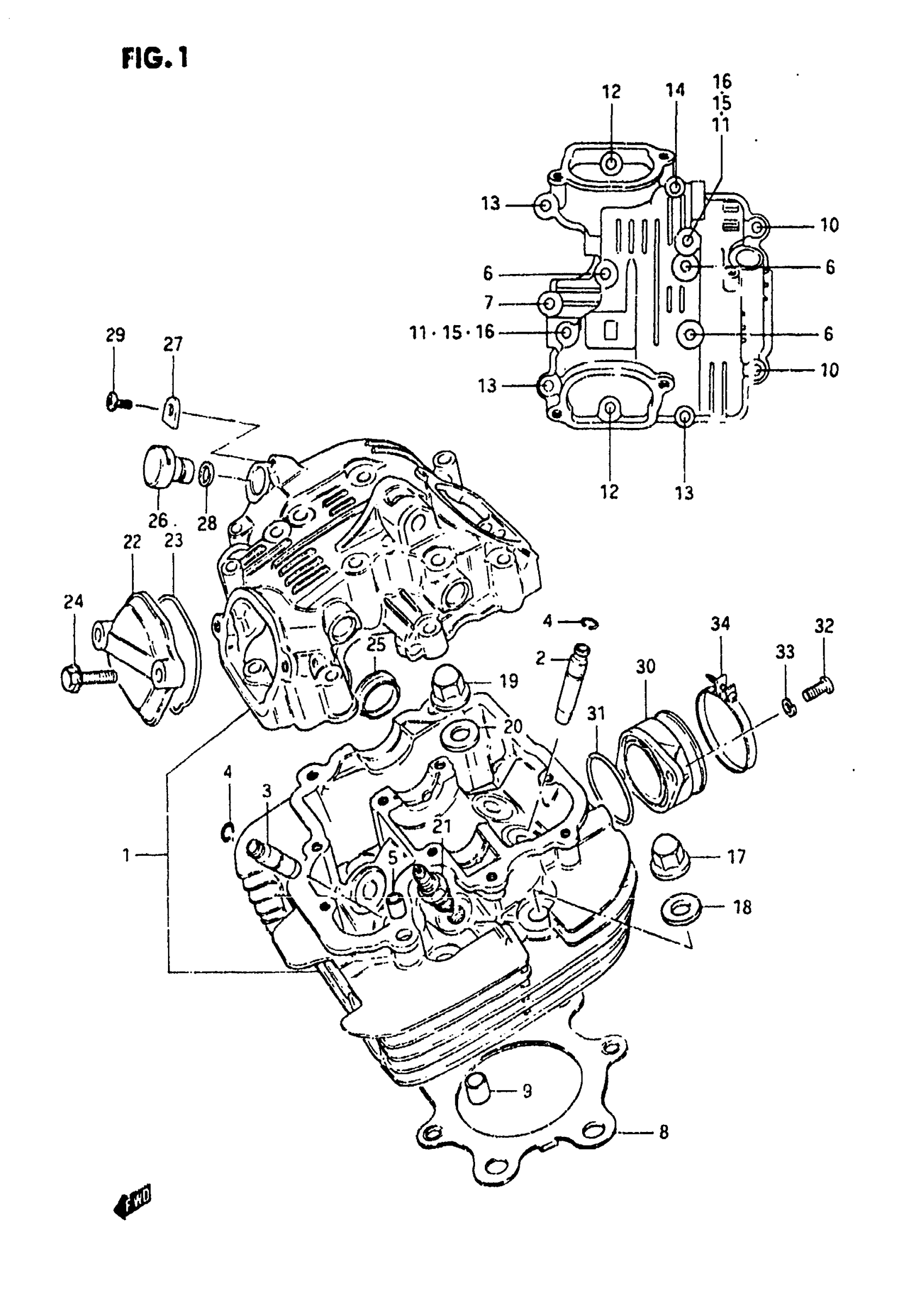

Find the part on the Cylinder Head diagram for your 1983 Suzuki SP250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki SP250 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER HEAD ASSY | Includes Item(s) 2 - 7

11100-38200

1
Out of stock

2

GUIDE, IN VALVE

11115-38270

2
Out of stock

3

GUIDE, VALVE (0S:0.3)

11115-05270

2
Out of stock

4

.RING (10X85)

09381-10004

4
Out of stock

5

PIN

09206-08001

2
Out of stock

6

BOLT This part replaces 01517-06608.

01550-06607

3
Out of stock

7

BOLT This part replaces 01517-06308.

01550-06307

1
Out of stock

8

GASKET, CYLINDER HEAD This part replaces 11141-38200.

11141-25D11

1
Out of stock

9

PIN This part replaces 09206-13001.

04211-13189

2
Out of stock

10

BOLT (6X115)

09103-06052

2
Out of stock

11

STUD BOLT This part replaces 01421-06308.

01421-06307

2
Out of stock

12

BOLT This part replaces 01517-06308.

01550-06307

2
Out of stock

13

BOLT (CHROME) This part replaces 01517-06458.

01550-06457

3
Out of stock

14

BOLT This part replaces 01517-06608.

01550-06607

1
Out of stock

15

NUT This part replaces 08316-16068.

08319-31067

2
Out of stock

16

GASKET (5.8X13X1.2) This part replaces 09168-06009.

09168-06023

2
Out of stock

17

NUT

09159-10026

2
Out of stock

18

WASHER

09160-10039

2
Out of stock

19

NUT This part replaces 09159-10035.

09159-10026

2
Out of stock

20

GASKET

09168-10017

2
Out of stock

21

SPARK PLUG (DR8EA) This part replaces 09482-00144.

09482-00399

1
Out of stock

21

SPARK PLUG (X24ESR-U) This part replaces 09482-00145.

09482-00223

1
Out of stock

22

CAP, INSPECTION This part replaces 11175-38200.

11175-38202

2
Out of stock

23

O RING

09280-55003

2
Out of stock

24

BOLT This part replaces 01517-06258.

01550-06257

4
Out of stock

25

PLUG, HEAD

09241-30004

1
Out of stock

26

PLUG, SLEEVE HOLE

26442-45000

1
Out of stock

27

PLATE

26449-33000

1
Out of stock

28

SEAL BAND

26451-45000

1
Out of stock

29

SCREW

09128-05101

1
Out of stock

30

PIPE, INTAKE

13110-38200

1

$45.62

In stock

31

O-RING (D:2.4,ID:39.7) This part replaces 09280-40003.

09280-40020

1
Out of stock

32

SCREW This part replaces 02112-06168.

02112-06167

2
Out of stock

33

2

$2.28

In stock

34

CLAMP

09402-52306

1
Out of stock
