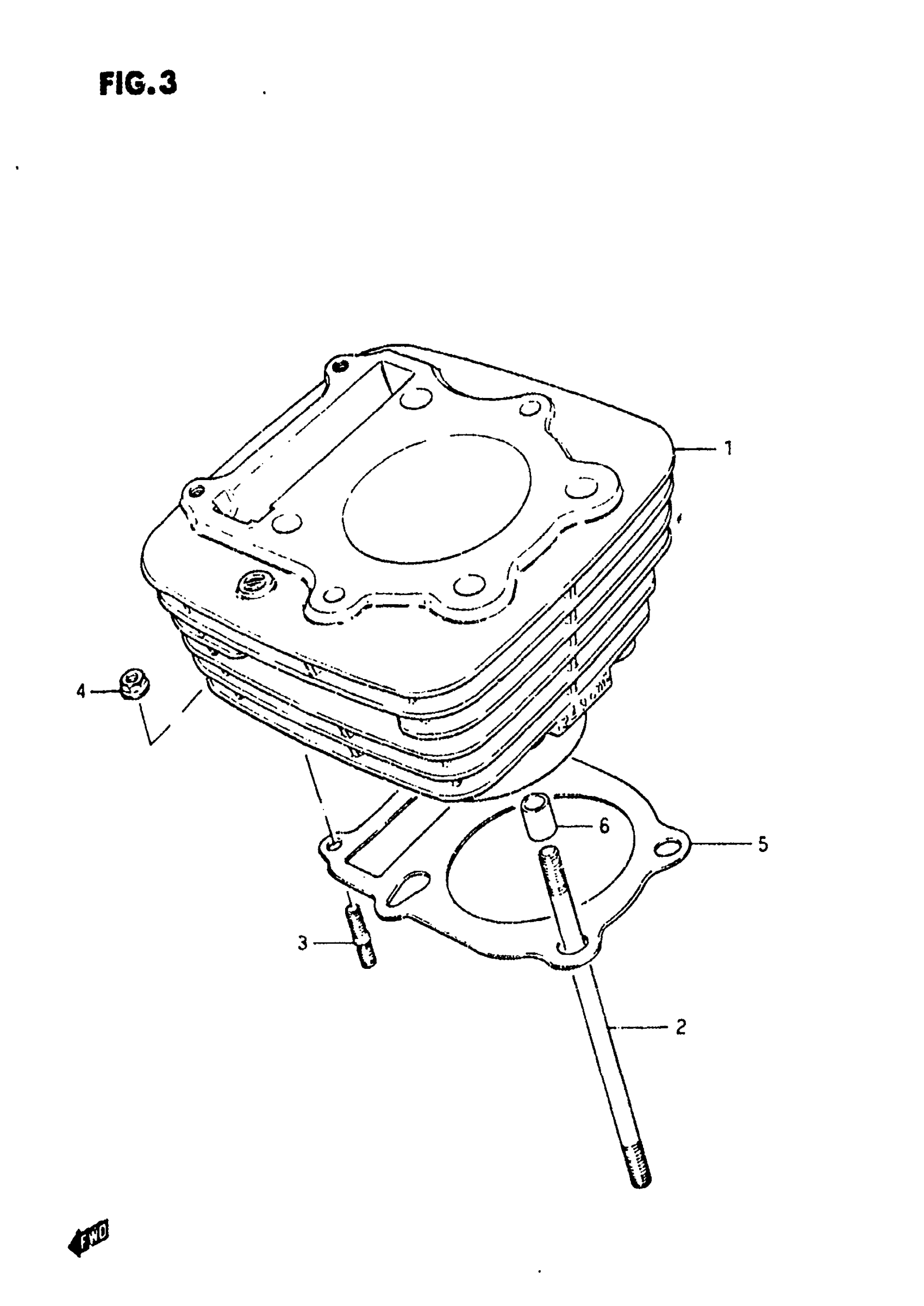

Suzuki SP250 (1983) CYLINDER Diagram

#

Description

Price

1

CYLINDER | MODEL Z This part replaces 11210-38200.

11210-38204-0F0

$1,332.40

1

CYLINDER | MODEL D This part replaces 11210-38210.

11210-38204-0F0

$1,332.40

2

STUD BOLT (L:141)

09108-10030

$9.08

3

STUD BOLT (L:25) | MODEL Z This part replaces 01421-06258.

01421-06257

$2.80

3

STUD BOLT | MODEL D This part replaces 01421-06255.

01421-0625A

$2.07

4

NUT | MODEL Z This part replaces 08316-16068.

08319-31067

$2.09

4

NUT | MODEL D This part replaces 08316-16065.

08316-1006B

$2.57

5

GASKET, CYLINDER | MODEL Z This part replaces 11241-38200.

11241-38301

$10.58

5

GASKET, CYLINDER | MODEL D This part replaces 11241-38201.

11241-38301

$10.58

6

PIN This part replaces 09206-13001.

04211-13189

$2.25
