1973 Yamaha SL433B Tail Lamp Diagram

← All diagrams

Find the part on the Tail Lamp diagram for your 1973 Yamaha SL433B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

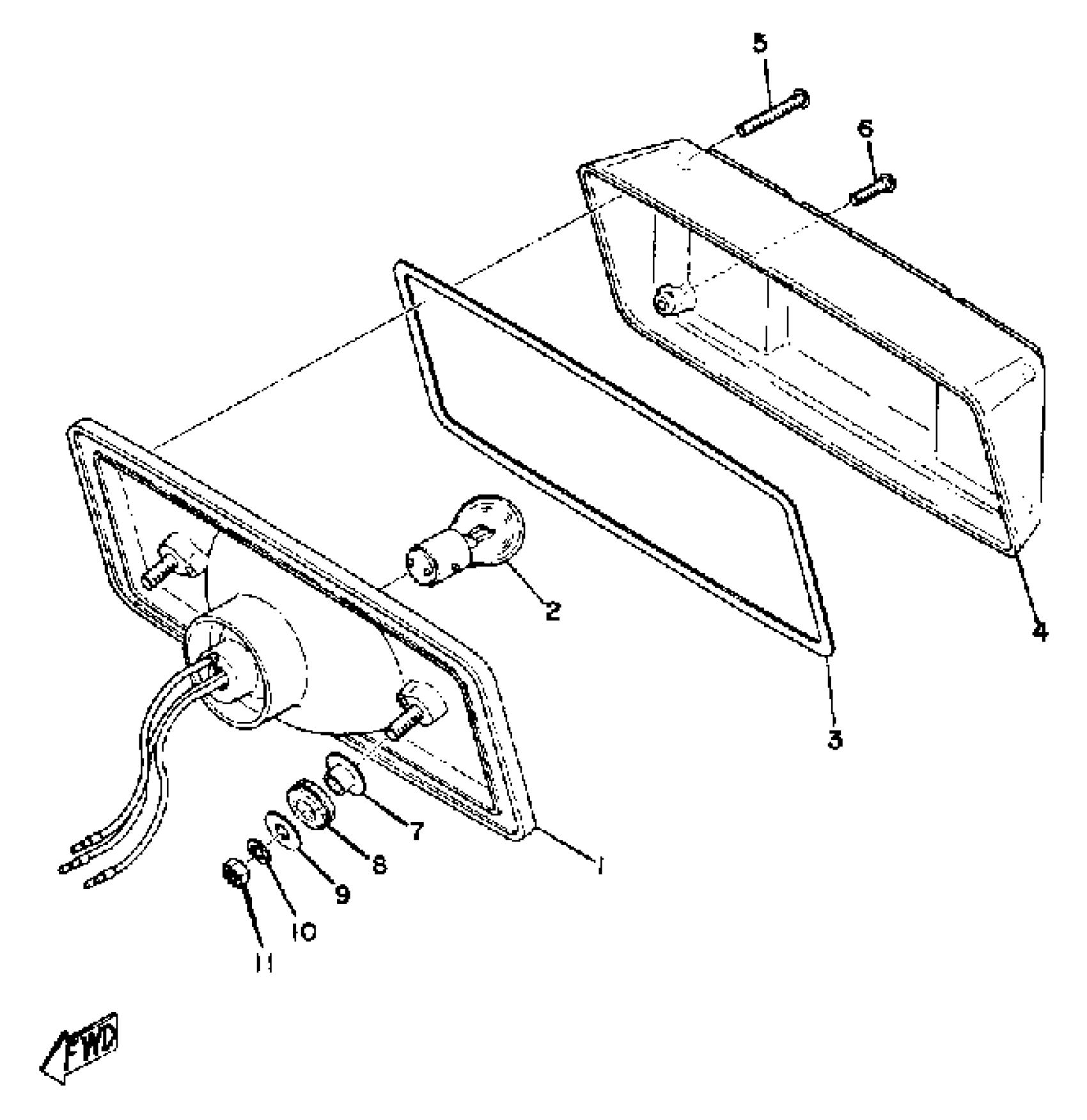

1973 Yamaha SL433B Tail Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAILLIGHT UNIT ASSEMBLY

853-84710-00-00

1
Out of stock

1

TAILLIGHT UNIT ASSEMBLY

853-84710-00-00

1
Out of stock

2

BULB(12V32/3CP)1157

137-84714-61-XX

1
Out of stock

3

SEAL

3TJ-14457-00-00

—
Out of stock

4

. LENS, TAILLIGHT

821-84721-00-00

1
Out of stock

5

SCREW, PAN

98507-04030-00

1

$1.51

In stock

6

SCREW, PAN HEAD(GA5)

98580-04014-00

1

$2.78

In stock

7

COLLAR (838-84757-00)

90387-06024-00

1
Out of stock

8

GROMMET

(90480-14075-00)

1
Out of stock

9

WASHER, PLATE 8221447500

90201-06057-00

1
Out of stock

10

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

11

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock
