1973 Yamaha SL433B Bumper Diagram

← All diagrams

Find the part on the Bumper diagram for your 1973 Yamaha SL433B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

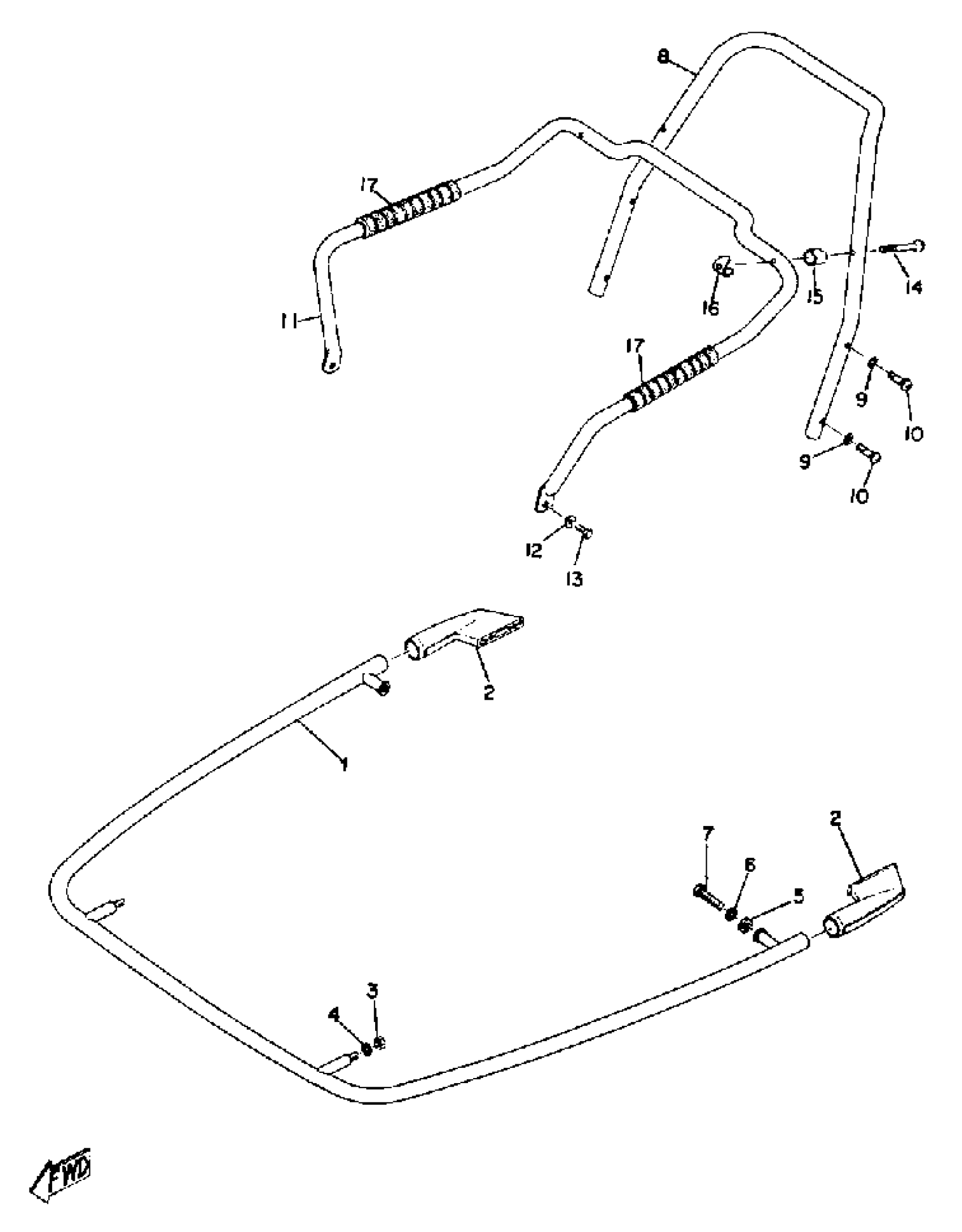

1973 Yamaha SL433B Bumper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT BUMPER

841-77510-00-00

1
Out of stock

2

END, BUMPER

838-77523-00-00

1
Out of stock

3

NUT(6L2)

95333-08600-00

1

$3.20

In stock

4

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

5

WASHER, PLATE

(90201-08456-00)

1
Out of stock

6

WASHER(JN5)

92907-08100-00

1

$5.98

In stock

7

BOLT (8K4)

90101-08499-00

—

$21.95

In stock

8

BUMPER, REAR 1

(841-77541-00-00)

1
Out of stock

9

WASHER

92990-06500-00

1
Out of stock

10

SCREW, COUNTERSUNK

90152-06003-00

1
Out of stock

11

GRIP, ASSIST 1

841-77571-00-00

1
Out of stock

12

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

13

BOLT (661)

97013-06012-00

1

$4.71

In stock

14

SCREW, SPEC''L SHAPE

90149-06054-00

1
Out of stock

14

SCREW

92601-06050-00

1
Out of stock

15

BUSH, RUBBER 1

(806-77515-00-00)

1
Out of stock

16

NUT, SPECIAL

806-77573-00-00

1
Out of stock

17

COVER, ASSIST GRIP

838-77575-00-00

1
Out of stock
