1972 Yamaha SL433 Tail Lamp Diagram

← All diagrams

Find the part on the Tail Lamp diagram for your 1972 Yamaha SL433, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

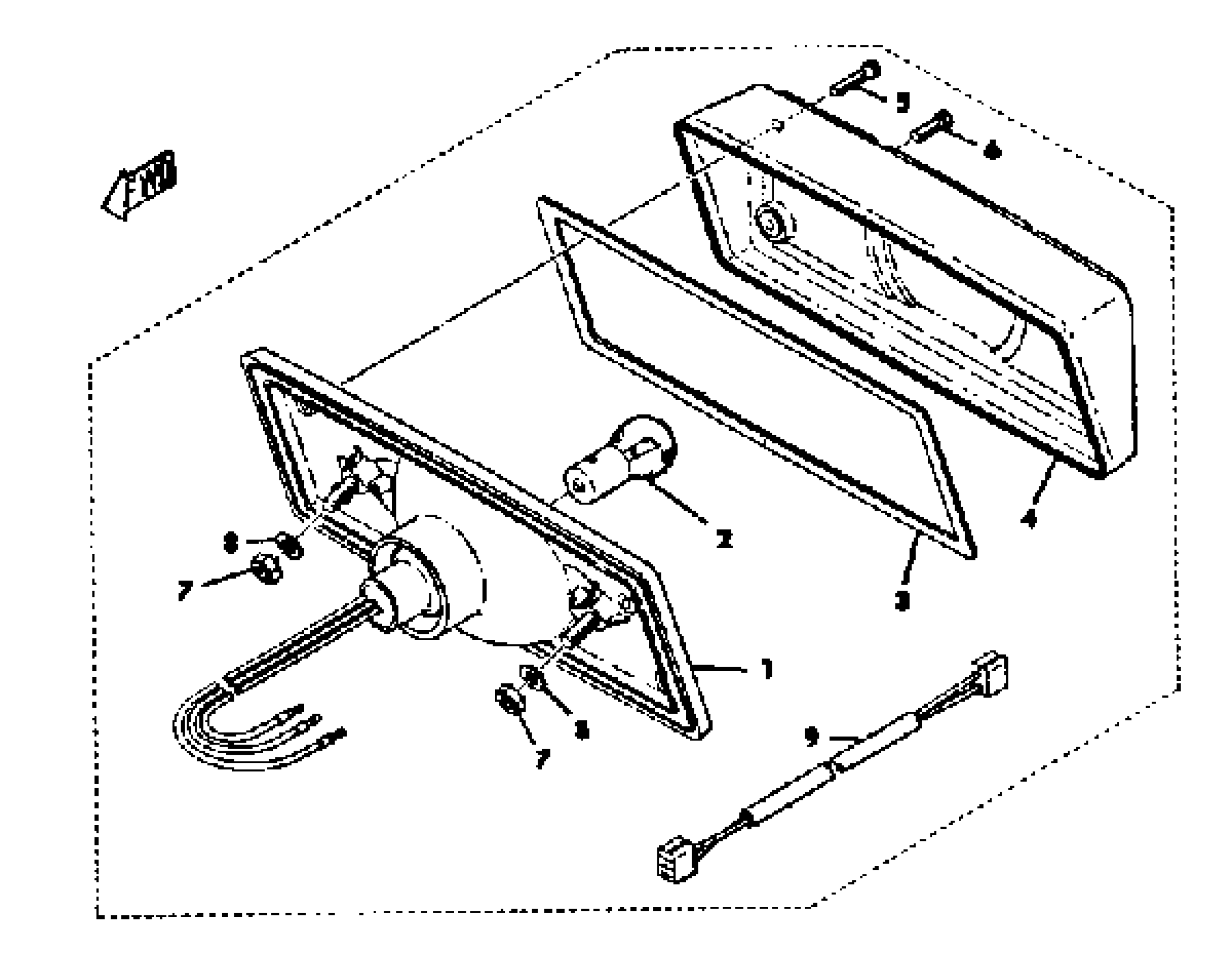

1972 Yamaha SL433 Tail Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAILLIGHT UNIT ASSEMBLY

821-84710-00-00

1
Out of stock

1

BASE, TAILLIGHT

(821-84711-01-00)

1
Out of stock

2

. BULB

35R-83311-00-00

1
Out of stock

3

SEAL

3TJ-14457-00-00

—
Out of stock

4

. LENS, TAILLIGHT

821-84721-00-00

1
Out of stock

5

SCREW, PAN

98507-04030-00

1

$1.51

In stock

6

SCREW, PAN HEAD(GA5)

98580-04014-00

1

$2.78

In stock

7

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

8

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

9

CORD, TAILLIGHT

822-84727-00-00

1
Out of stock
