1972 Yamaha SL433 Tachometer Diagram

← All diagrams

Find the part on the Tachometer diagram for your 1972 Yamaha SL433, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

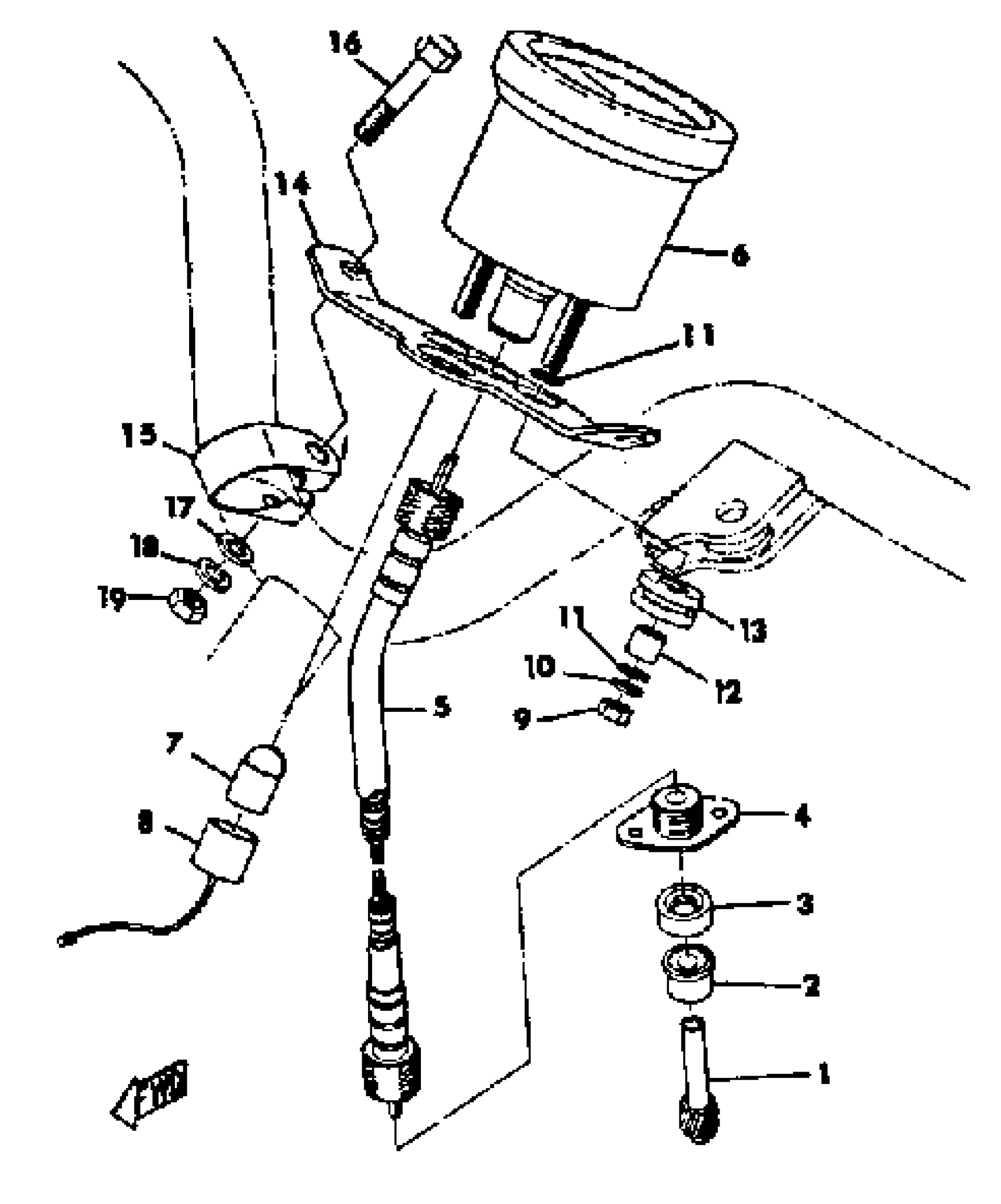

1972 Yamaha SL433 Tachometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, DRIVEN (10T)

813-17841-00-00

1
Out of stock

2

BUSH, DRIVEN GEAR OUTER

821-17843-00-00

1
Out of stock

3

OIL SEAL (6X12X4-821)

93104-06033-00

1

$6.49

In stock

4

CAP, HOUSING

821-17819-00-00

1
Out of stock

5

TACHOMETER CABLE

(813-83560-00-00)

1
Out of stock

6

TACHOMETER ASSEMBLY

(813-83540-00-00)

1
Out of stock

7

BULB

256-84347-00-00

1
Out of stock

8

SOCKET, METER

(813-83536-00-00)

1
Out of stock

9

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

10

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

11

WASHER PLATE 803835240000

90201-05032-00

—

$6.71

In stock

12

COLLAR (3L6)

90387-06761-00

1

$6.88

In stock

13

DAMPER

(803-83523-00-00)

1
Out of stock

14

BRACKET, TACHOMETER

(810-83545-00-00)

1
Out of stock

15

PLATE, FITTING

(810-83544-00-00)

1
Out of stock

16

BOLT (682)

97095-06040-00

—

$2.36

In stock

17

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

18

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

19

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock
