ELECTRIC STARTER

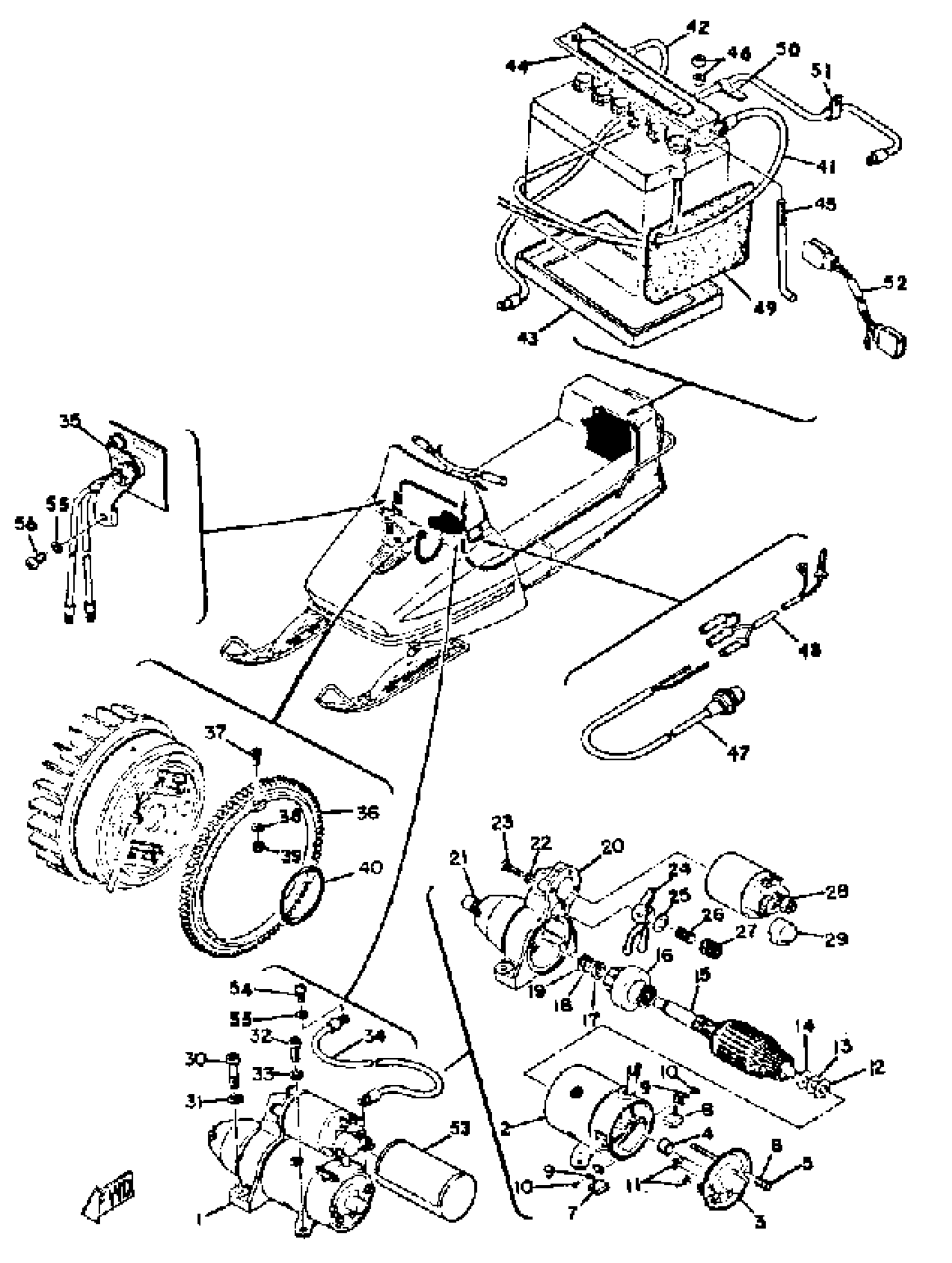

1972 Yamaha SL433 Electric Starter Diagram
Find the part on the Electric Starter diagram for your 1972 Yamaha SL433, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
ELECT.STARTER KIT (842-81800-20)
807-81000-00-00
2
STATOR ASSEMBLY
(807-81810-20-00)
3
REAR BRACKET ASSEMBLY
(807-81820-20-00)
4
COVER, SWITCH
(807-81821-20-00)
5
BOLT
(807-81826-20-00)
6
YBS67-5 WASHER, SPRING
92990-05100-00
7
BRUSH 1
(807-81811-20-00)
8
BRUSH 2
(807-81812-20-00)
11
SPRING, BRUSH
(807-81813-20-00)
12
WASHER, INSULATOR
(807-81825-20-00)
13
WASHER 2
(807-81824-20-00)
14
STAY, STARTING MTR
(807-81823-20-00)
15
ARMATURE ASSEMBLY
(807-81850-20-00)
16
CLUTCH, OVER RUN
(807-81832-20-00)
17
RING, STOP
(807-81833-20-00)
18
RING
(807-81834-20-00)
19
WASHER
(807-81835-20-00)
20
FRONT BRACKET ASSEMBLY
(807-81830-20-00)
21
METAL, FRONT
(807-81831-20-00)
23
SCREW
(807-81846-20-00)
24
LEVER ASSEMBLY
(807-81839-20-00)
25
HOLDER, SPRING
(807-81838-20-00)
26
SPRING, LEVER
(807-81836-20-00)
26
SPRING, LEVER
(807-81836-20-00)
27
SPRING, LEVER
(807-81837-20-00)
28
SWITCH ASSEMBLY
(807-81860-20-00)
29
CAP
(807-81862-20-00)
30
SCREW, SPEC''L SHAPE
90149-08056-00
31
WASHER, PLATE
(90201-09116-00)
34
WIRE, LEAD
(819-82117-00-00)
35
RECTIFIER ASSEMBLY
(812-81970-41-00)
36
GEAR, RING
(811-81891-00-00)
37
SCREW, SPEC''L SHAPE
(90149-06061-00)
38
WASHER, SPECIAL
(811-81894-00-00)
40
O-RING
(93210-61117-00)
41
WIRE, PLUS LEAD
824-82115-00-00
42
WIRE, MINUS LEAD
822-82116-00-00
43
SEAT, BATTERY
807-82122-00-00
44
PLATE, BATT FITTING
(822-82136-00-00)
45
SCREW, SPEC''L SHAPE
(90149-06024-00)
47
STARTER SWITCH ASSEMBLY
(811-83970-00-00)
48
WIRE, LEAD 2
(822-82127-00-00)
49
SEAL, BATTERY
822-82118-00-00
50
BAND
(822-82591-00-00)
51
CLAMP
90465-06013-00
52
WIRE, LEAD
(827-82531-00-00)
53
COVER, SWITCH
(819-81821-00-00)
