1968 Yamaha SL351 Head Lamp & Tail Lamp Diagram

← All diagrams

Find the part on the Head Lamp & Tail Lamp diagram for your 1968 Yamaha SL351, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

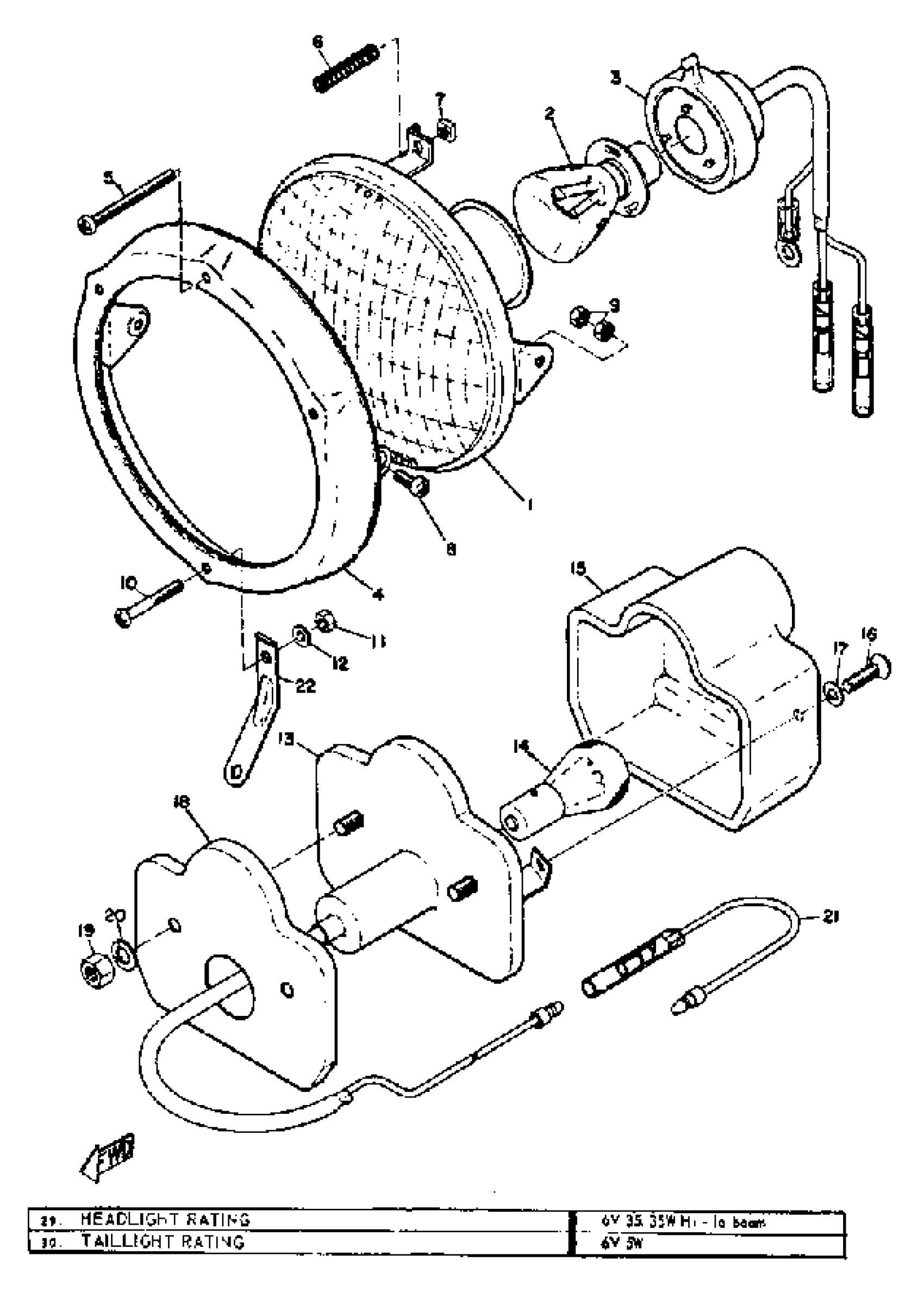

1968 Yamaha SL351 Head Lamp & Tail Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLIGHT UNIT ASSEMBLY

(802-84110-00-00)

1
Out of stock

1

LENS ASSEMBLY

(802-84120-00-00)

1
Out of stock

2

BULB,HEAD LAMP(6V35/35W)

214-84114-60-00

1

$19.58

In stock

2

TAILLIGHT UNIT ASSEMBLY

(802-84510-00-00)

1
Out of stock

3

SOCKET

(802-84112-00-00)

1
Out of stock

4

RIM, HEADLIGHT

(802-84115-00-00)

1
Out of stock

5

SCREW, ADJUSTING

5BF-8433E-00-00

1

$6.11

In stock

6

SPRING, SCREW

(207-84132-60-00)

1
Out of stock

7

. UNAVAILABLE IN PRICE BOOK

207-84131-61-00

1
Out of stock

8

SCREW, PAN HEAD (E56)

98580-04010-00

1

$6.17

In stock

9

NUT(6TA)

95307-04600-00

1

$6.69

In stock

10

SCREW, PAN

98507-04030-00

1

$1.51

In stock

11

NUT(6TA)

95307-04600-00

1

$6.69

In stock

12

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

13

TOOL

UNA-VAILA-BL-EI

1
Out of stock

14

BULB,TAIL LAMP(6V17/5.3W)

122-84514-30-00

1
Out of stock

15

LENS, TAILLIGHT

(124-84521-60-00)

1
Out of stock

16

SCREW, LENS FITTING

(197-84724-60-00)

1
Out of stock

17

WASHER

(124-84522-60-00)

1
Out of stock

18

COVER, TAILLIGHT

(124-84516-60-00)

1
Out of stock

19

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

20

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

21

TOOL

UNA-VAILA-BL-EI

1
Out of stock

22

HOLDER, ROD 1

(802-77139-00-00)

1
Out of stock
