1968 Yamaha SL351 Electrical Diagram

← All diagrams

Find the part on the Electrical diagram for your 1968 Yamaha SL351, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

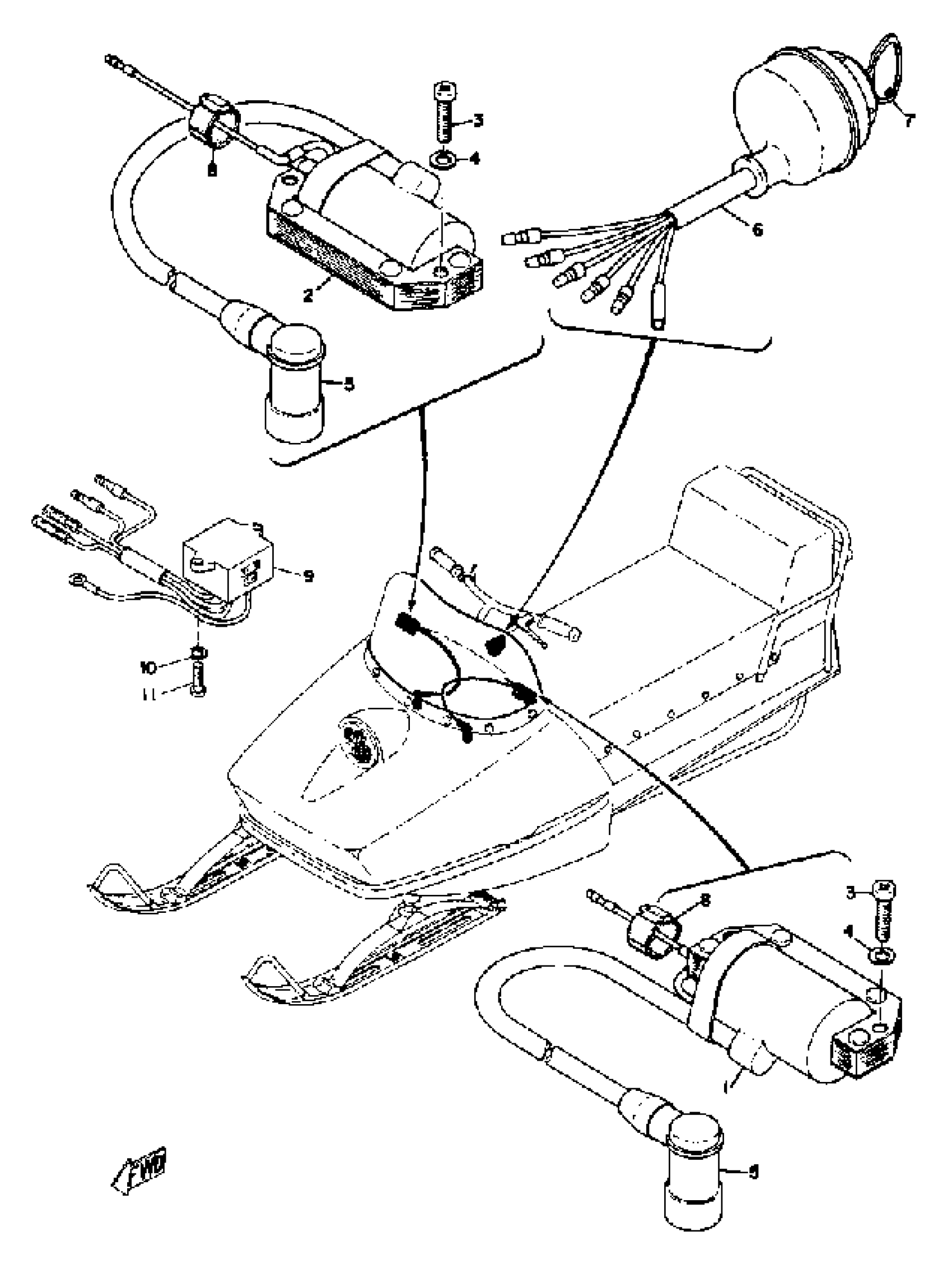

1968 Yamaha SL351 Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

IGNITION COIL ASSEMBLY

206-82310-41-00

1
Out of stock

1

COLLAR, MAIN SWITCH

806-82516-00-00

1
Out of stock

2

IGNITION COIL ASSEMBLY

(802-82320-49-00)

1
Out of stock

3

SCREW, PAN HEAD

98580-05020-00

1

$1.39

In stock

4

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

5

PLUG CAP ASSY

56J-82370-00-00

1

$56.63

In stock

6

MAIN SWITCH ASSEMBLY

(802-82510-21-00)

1
Out of stock

7

TOOL

UNA-VAILA-BL-EI

1
Out of stock

8

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock

9

SILICOM STACK ASSEMBLY

806-82390-20-00

1
Out of stock

10

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

11

SCREW, PAN HEAD(GA5)

98580-04014-00

1

$2.78

In stock
