1968 Yamaha SL351 Flywheel Magneto Diagram

← All diagrams

Find the part on the Flywheel Magneto diagram for your 1968 Yamaha SL351, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

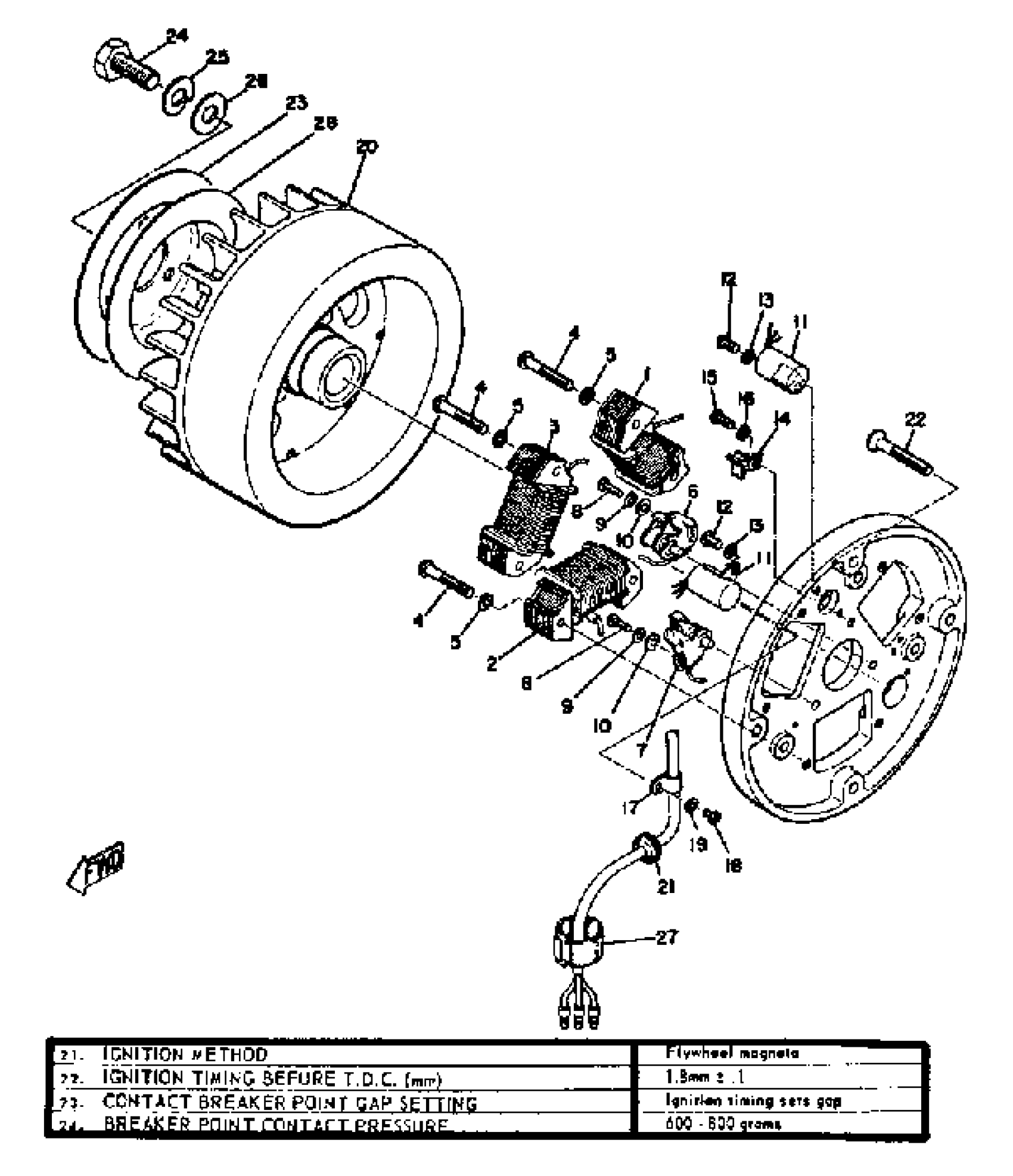

1968 Yamaha SL351 Flywheel Magneto Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COIL, SOURCE

(802-81312-20-00)

1
Out of stock

1

UNAVAILABLE IN PRICE BOOK

FLY-WHEEL-MA-GN

1
Out of stock

2

. COIL, CHARGE 2

802-81342-20-00

1
Out of stock

3

COIL, LIGHTING 1

(802-81313-20-00)

1
Out of stock

4

SCREW, PANHEAD (A93)

98580-05525-00

1

$1.54

In stock

5

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

6

. CONTACT BRKR ASSEMBLY

806-81321-20-00

1

$27.71

In stock

7

CONTACT BREAKER ASSY

1M1-81321-20-00

1

$104.71

In stock

8

SCREW, PAN HEAD

98511-04012-00

1
Out of stock

9

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

10

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

11

. CONDENSER 1

802-81325-90-00

1
Out of stock

11

. CONDENSER 2

802-81326-20-00

1
Out of stock

12

SCREW, PAN HEAD (E56)

98580-04010-00

1

$6.17

In stock

13

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

14

. LUBRICATOR

116-81331-20-00

1
Out of stock

15

SCREW, PAN HEAD (E56)

98580-04010-00

1

$6.17

In stock

16

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

17

CLAMP, LEAD

104-81328-20-00

—

$6.31

In stock

18

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

19

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

20

ROTOR ASSEMBLY

(802-81350-20-00)

1
Out of stock

21

GROMMET

(104-81329-00-00)

1
Out of stock

22

SCREW, FLAT

98707-06035-00

—
Out of stock

23

COVER, HOLE

(802-81362-00-00)

1
Out of stock

24

BOLT(6TD)

97017-10025-00

—

$6.82

In stock

25

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

26

TOOL

UNA-VAILA-BL-EI

1
Out of stock

27

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

28

TOOL

UNA-VAILA-BL-EI

1
Out of stock
