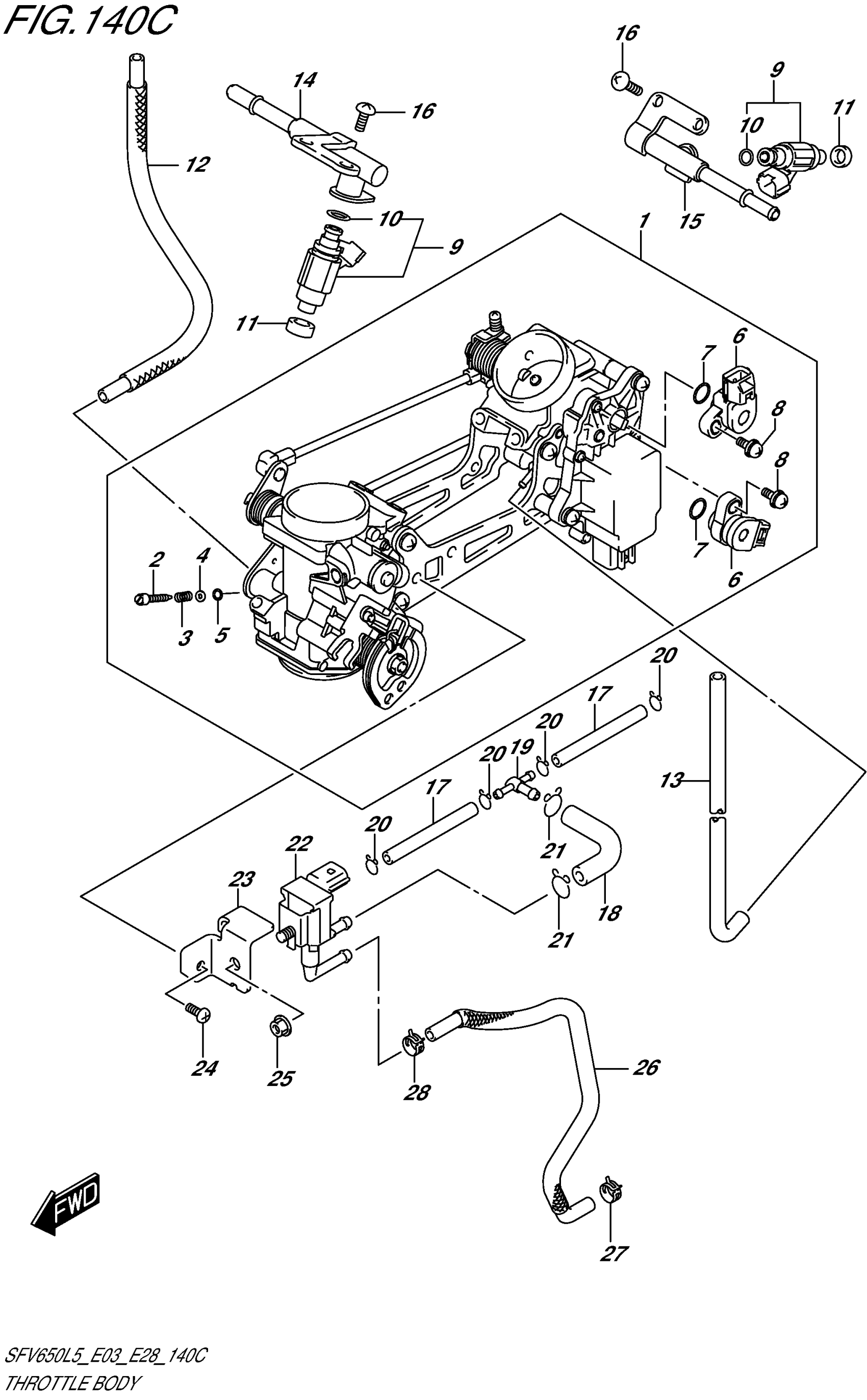

Suzuki SFV650AL5 (2015) THROTTLE BODY (SFV650L5 E33) Diagram

#

Description
Price

1

THROTTLE BODY

13405-44H10

Unavailable

2

SCREW

13269-33E00

$10.45

3

SPRING,THROTTLE SCREW

13268-48700

$3.97

4

WASHER

13606-47A00

$3.70

5

O-RING This part replaces 13295-29900.

13295-29901

$3.97

6

SENSOR ASSY

13580-27G21

$163.47

7

.O-RING This part replaces 13575-29G00.

13575-29G01

$2.97

8

SCREW

13605-02F00

$3.50

9

INJECTOR ASSY

15710-44H00

$363.92

10

.O-RING

15717-58B00

$9.11

11

SEAL

15722-29G00

$10.01

12

HOSE

13683-44H00

Unavailable

13

HOSE This part replaces 13683-44H10.

13683-44H11

$20.55

14

DELIVERY PIPE

15720-44H00

Unavailable

15

DELIVERY PIPE

15730-44H00

Unavailable

16

SCREW

13602-06128

$2.80

17

HOSE

13681-06G40

Unavailable

18

HOSE

13683-44H30

Unavailable

19

NIPPLE

13685-04F10

$12.50

20

CLIP

09401-06101

$2.06

21

CLIP This part replaces 09401-10410.

09401-10401

$1.45

22

VALVE,CANISTER PURGE

18117-52G10

$168.22

23

BRACKET

18119-44H00

Unavailable

24

SCREW

13602-06128

$2.80

25

NUT

08316-1006A

$2.19

26

HOSE, PURGE VALVE

13680-44H00

Unavailable

27

CLIP

09401-11413

$2.24

28

CLIP (ID:9.4,H:8)

09401-09403

$2.01
