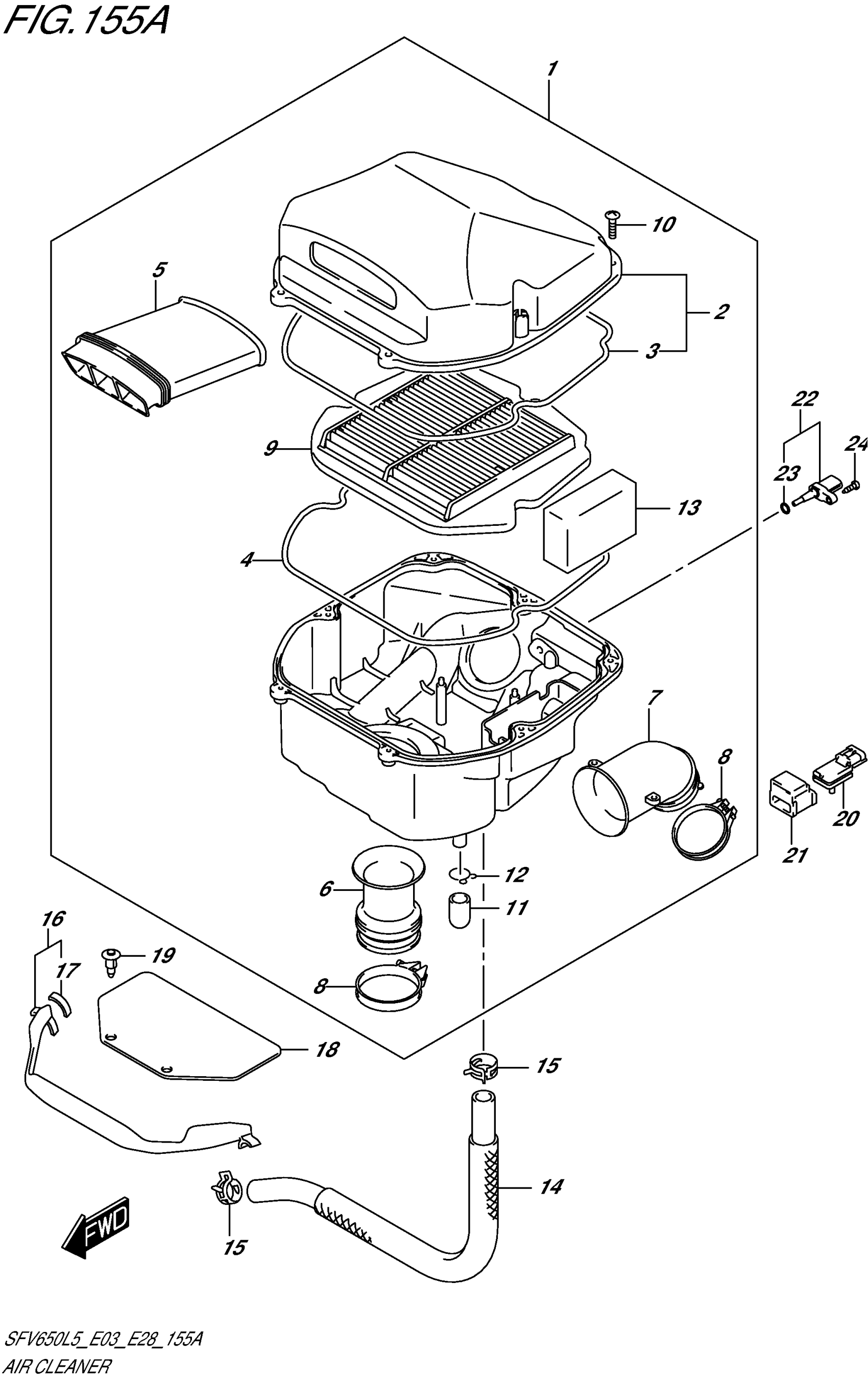

Suzuki SFV650AL5 (2015) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR

13700-44H01

Unavailable

2

CAP, AIR CLEANER

13740-44H00

$66.18

3

GASKET

13746-44H00

$9.17

4

GASKET

13746-44H00

$9.17

5

TUBE, INLET

13891-44H00

Unavailable

6

TUBE, OUTLET

13881-44H00

Unavailable

7

TUBE, OUTLET

13882-44H00

$30.76

8

.CLAMP,OUTLET TUBE

13826-44H01

Unavailable

9

FILTER, AIR CLEANER

13780-44H00

$35.71

10

SCREW

03541-0520A

$1.81

11

.PLUG

13859-41B10

$6.94

12

CLIP

09401-14301

$2.17

13

FILTER, BREATHER

13788-44H00

$13.82

14

TUBE, BREATHER

13850-44H00

Unavailable

15

CLIP

09401-20405

$4.43

16

COVER,CLEANER INLET

13840-44H00

Unavailable

17

CUSHION (10X30X2)

44894-24A00

$1.78

18

SHEET

13841-44H00

Unavailable

19

CLIP (BLACK)

09409-08308-5ES

$1.97

20

SENSOR, BOOST

18591-41F00

Unavailable

21

HOLDER

18595-41F00

Unavailable

22

SENSOR AIR TEMP

13650-41F10

$71.40

23

O-RING

13655-41F10

Unavailable

24

SCREW

03511-0516A

$1.88
