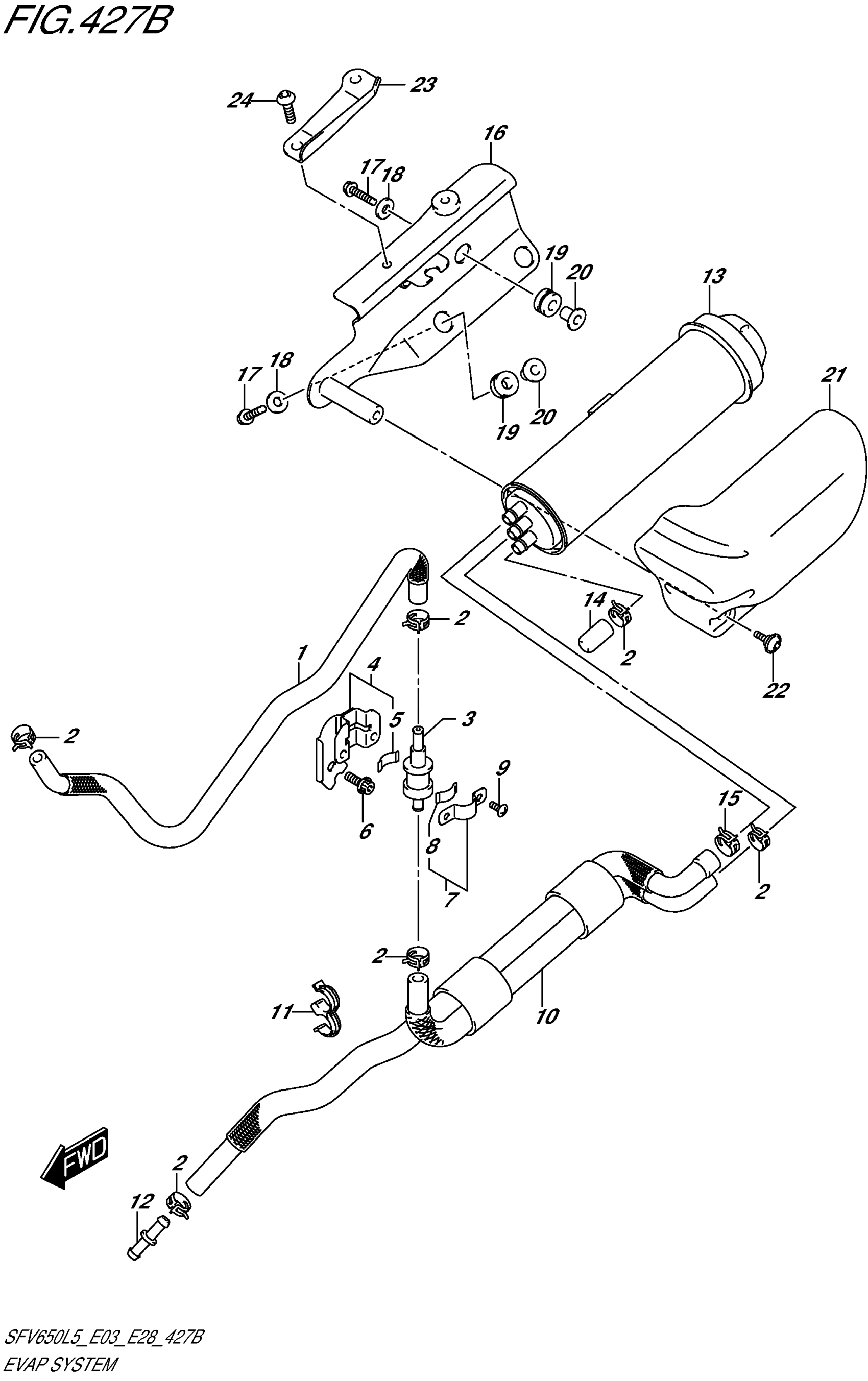

Suzuki SFV650AL5 (2015) EVAP SYSTEM (SFV650AL5 E33) Diagram

#

Description
Price

1

HOSE, TANK & BREATHER VALVE

44434-44H00

Unavailable

2

CLIP

09401-11413

$2.24

3

VALVE, BREATHER

44240-38A00

$69.02

4

BRACKET, VALVE

44890-44H00

Unavailable

5

CUSHION (10X30X2)

44894-24A00

$1.78

6

BOLT

07120-0616A

$2.55

7

PLATE,FUEL TANK BREATHER NO.2

44892-24A00

$5.10

8

CUSHION (10X30X2)

44894-24A00

$1.78

9

SCREW

02142-0408A

$1.68

10

HOSE, CANISTER

44430-44H00

Unavailable

11

CLAMP

09408-00155

Unavailable

12

JOINT

09367-06009

Unavailable

13

CANISTER

17200-38A10

Unavailable

14

CAP (OD:11.5)

09251-07003

$2.77

15

CLIP

09401-12404

$2.37

16

BRACKET, CANISTER

44880-44H00

Unavailable

17

BOLT

01547-0620A

$2.01

18

WASHER (6.5X16X3.2)

09160-06037

$2.58

19

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.07

20

WASHER

09169-06070

$5.17

21

COVER, CANISTER

44991-44H00

Unavailable

22

SCREW (5X13)

09139-05064

$2.56

23

BRACKET, CANISTER UPPER

44870-44H00

Unavailable

24

SCREW (6X25)

09139-06029

$4.84
