2015 Suzuki SFV650AL5 Evap System Diagram

← All diagrams

Find the part on the Evap System diagram for your 2015 Suzuki SFV650AL5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

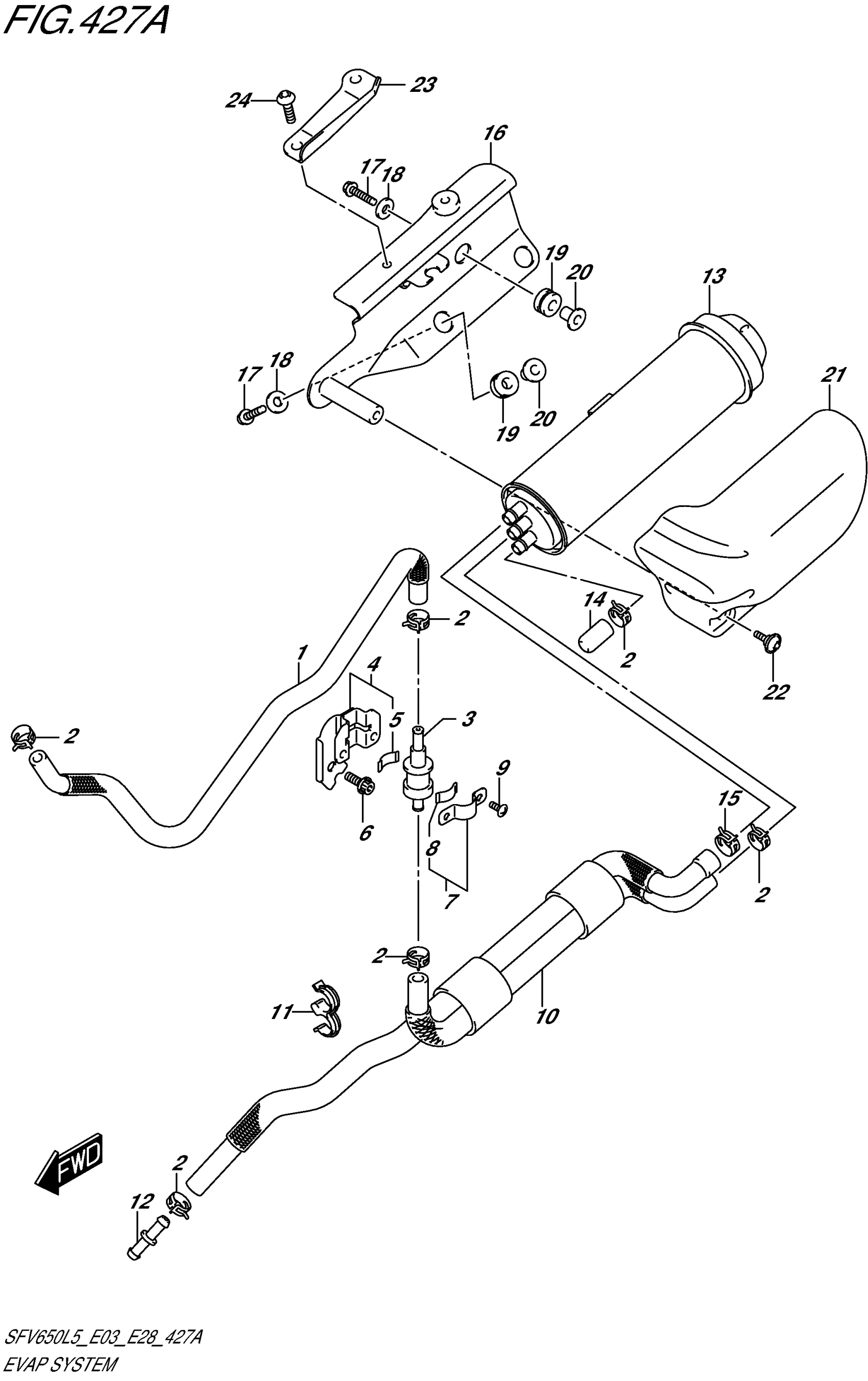

2015 Suzuki SFV650AL5 Evap System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOSE, TANK & BREATHER VALVE

44434-44H00

1
Out of stock

2

CLIP

09401-11413

6
Out of stock

3

VALVE, BREATHER

44240-38A00

1
Out of stock

4

BRACKET, VALVE

44890-44H00

1
Out of stock

5

CUSHION (10X30X2)

44894-24A00

1
Out of stock

6

BOLT

07120-0616A

1
Out of stock

7

PLATE,FUEL TANK BREATHER NO.2

44892-24A00

1
Out of stock

8

CUSHION (10X30X2)

44894-24A00

1
Out of stock

9

SCREW

02142-0408A

2
Out of stock

10

HOSE, CANISTER

44430-44H00

—
Out of stock

11

CLAMP

09408-00155

1
Out of stock

12

JOINT

09367-06009

1
Out of stock

13

CANISTER

17200-38A10

1
Out of stock

14

CAP (OD:11.5)

09251-07003

1
Out of stock

15

CLIP

09401-12404

1
Out of stock

16

BRACKET, CANISTER

44880-44H00

1
Out of stock

17

BOLT

01547-0620A

3
Out of stock

18

WASHER (6.5X16X3.2)

09160-06037

3
Out of stock

19

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

3
Out of stock

20

WASHER

09169-06070

3
Out of stock

21

COVER, CANISTER

44991-44H00

1
Out of stock

22

SCREW (5X13)

09139-05064

1
Out of stock

23

BRACKET, CANISTER UPPER

44870-44H00

1
Out of stock

24

SCREW (6X25)

09139-06029

2
Out of stock
