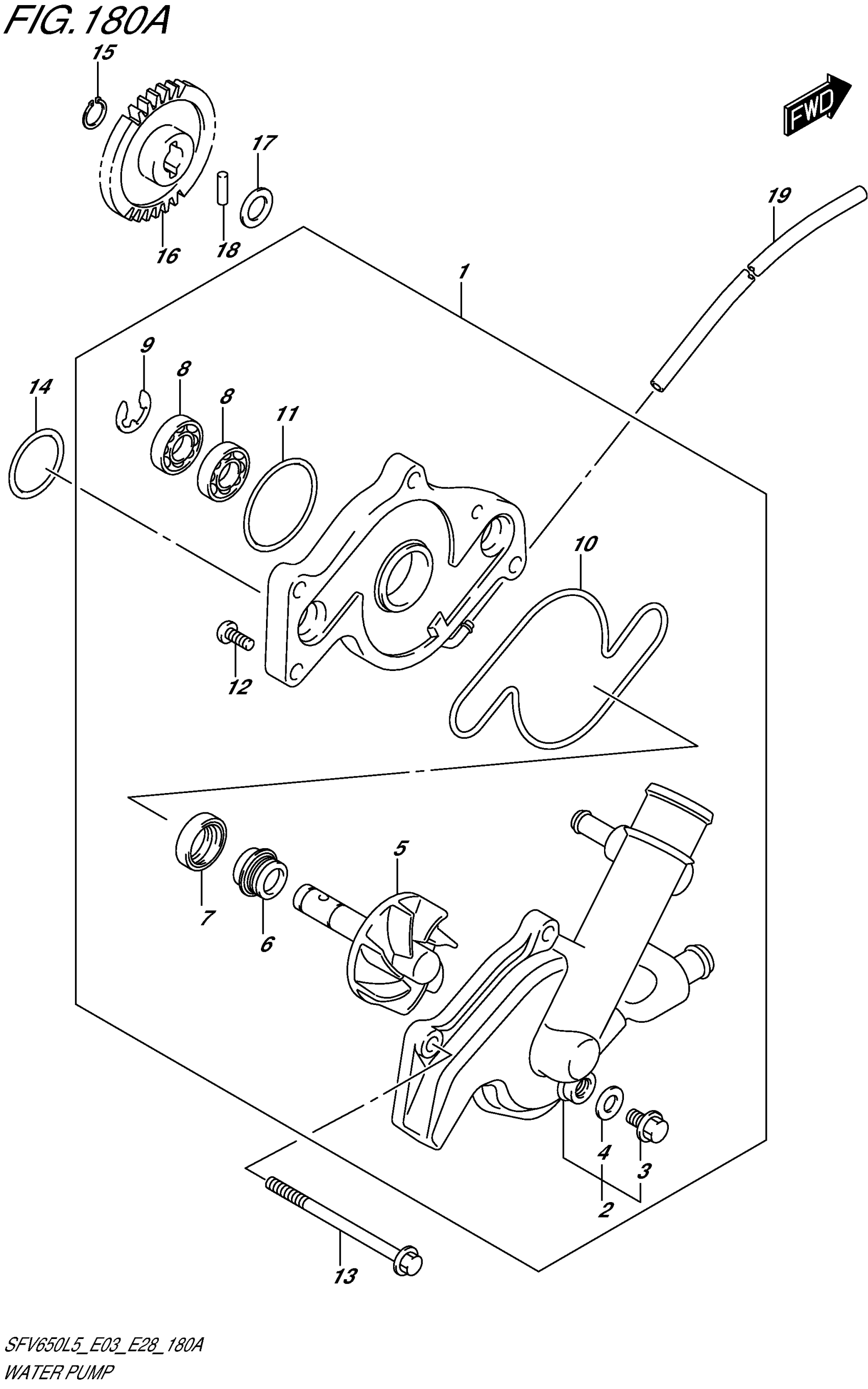

Suzuki SFV650AL5 (2015) WATER PUMP Diagram

#

Description
Price

1

PUMP ASSY, WATER This part replaces 17400-44H00.

17400-44H01

$338.18

2

.CASE, WATER PUMP

17411-44H00

$161.65

3

.BOLT,DRAIN

17415-20920

$6.75

4

GASKET (8.2X14X1)

09168-08016

$1.64

5

IMPELLER/SHAFT

17491-19F40

$76.85

6

.SEAL,MECHANICAL This part replaces 17470-02F10.

17470-02F11

$26.75

7

.SEAL,OIL (10X21X5)

17461-48G00

$12.45

8

BEARING (10X26X8)

09262-10014

$14.44

9

.E-RING

08332-1108A

$1.77

10

.O-RING

17418-19F00

$5.30

11

.O-RING

17435-33400

$13.99

12

SCREW

02112-0510A

$1.43

13

BOLT (6X70)

09103-06225

$2.90

14

.O-RING (D:2.4,ID:21.8)

09280-22001

$1.48

15

CIRCLIP

08331-31109

$1.77

16

GEAR,WATER PUMP DRIVEN (NT:34

17461-44H00

$51.22

17

SHIM (10X18X0.5)

09181-10158

$1.97

18

ROLLER (4X13.8)

09261-04002

$1.87

19

HOSE(3.5X6.5X60 | L:600->320 This part replaces 09352-35653-600.

09352-35654-600

$11.65
