2005 Yamaha RX-1 (RX10K) Steering Gate Diagram

← All diagrams

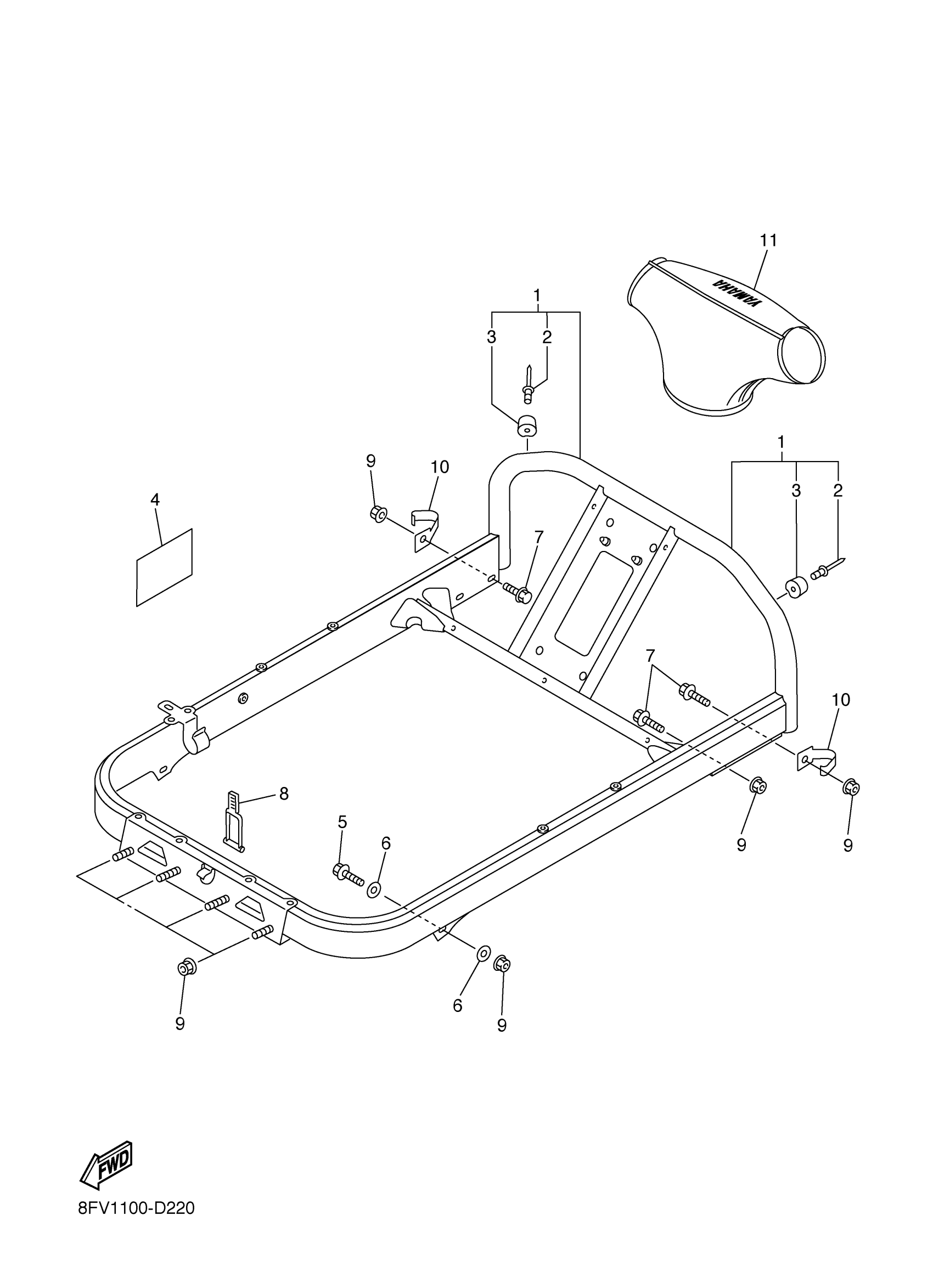

Find the part on the Steering Gate diagram for your 2005 Yamaha RX-1 (RX10K), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Yamaha RX-1 (RX10K) Steering Gate Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEERING GATE COMP.

8FA-23870-02-00

1
Out of stock

2

RIVET, BLIND

90267-47195-00

1
Out of stock

3

DAMPAR

8FA-23858-00-00

1
Out of stock

4

LABEL, CAUTION

8FA-2389C-E0-00

—
Out of stock

5

BOLT, WASHER BASED(JN9)

90105-081A7-00

1
Out of stock

6

WASHER (853)

90201-08326-00

1
Out of stock

7

BOLT, FLANGE(6TA)

95817-08030-00

1
Out of stock

8

LATCH

8FA-2389E-00-00

1
Out of stock

9

NUT, SELF-LOCKING

90185-08169-00

1
Out of stock

10

CLAMP

90462-10022-00

—
Out of stock

11

PAD, STEERING

8ES-23815-00-00

1
Out of stock
