2005 Yamaha RX-1 (RX10K) Control Cable Diagram

← All diagrams

Find the part on the Control Cable diagram for your 2005 Yamaha RX-1 (RX10K), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

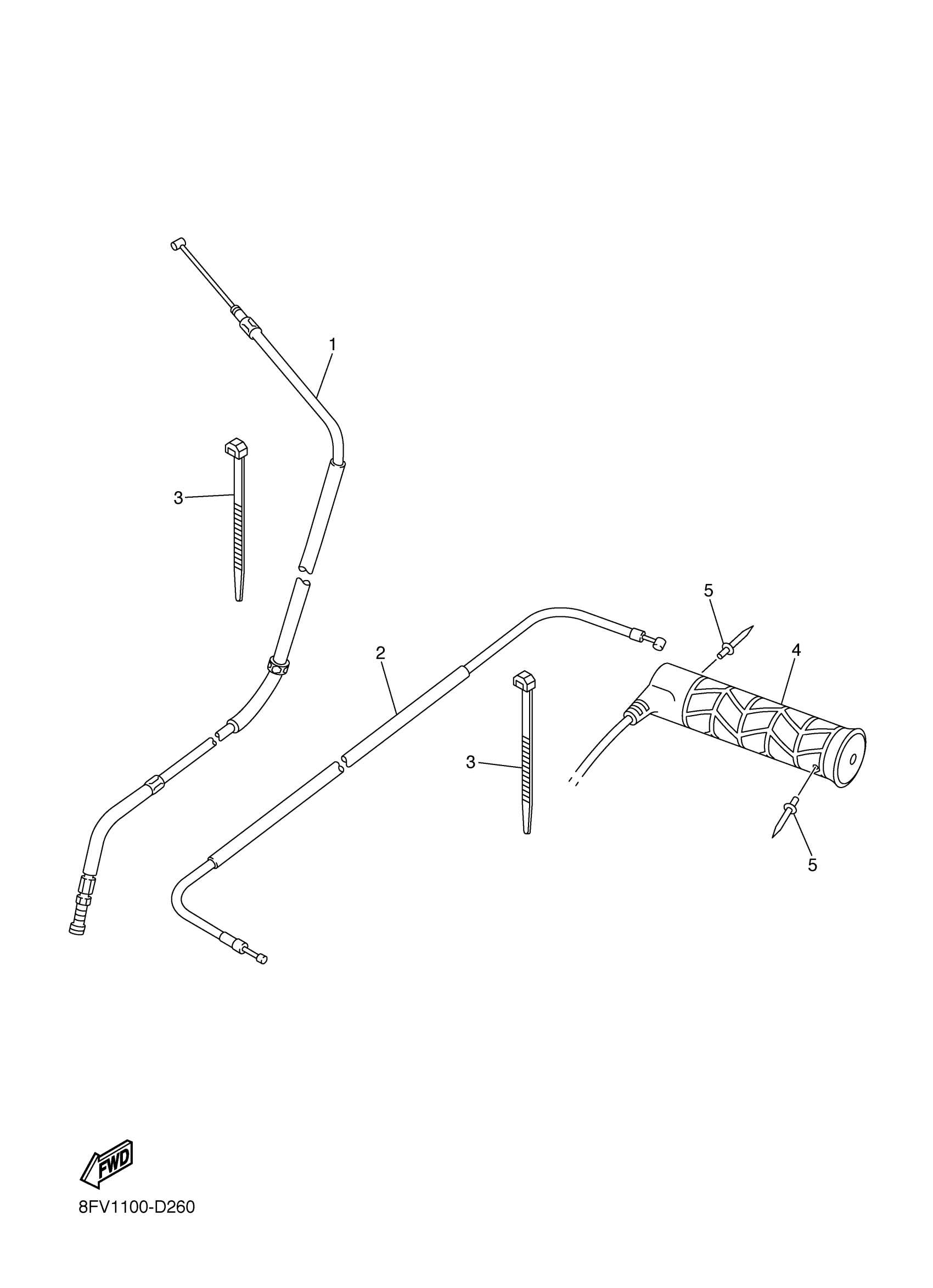

2005 Yamaha RX-1 (RX10K) Control Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CABLE, THROTTLE 1

8FU-26311-00-00

1
Out of stock

2

STARTER CABLE ASSY

8FU-26330-00-00

—

$23.43

In stock

3

CLAMP(4FM)

90464-15195-00

1

$2.77

In stock

4

GRIP ASSY

8DM-26240-02-00

1

$88.96

In stock

5

RIVET (856)

90267-48014-00

1
Out of stock
