2019 Suzuki RV200L9 Speedometer Diagram

← All diagrams

Find the part on the Speedometer diagram for your 2019 Suzuki RV200L9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

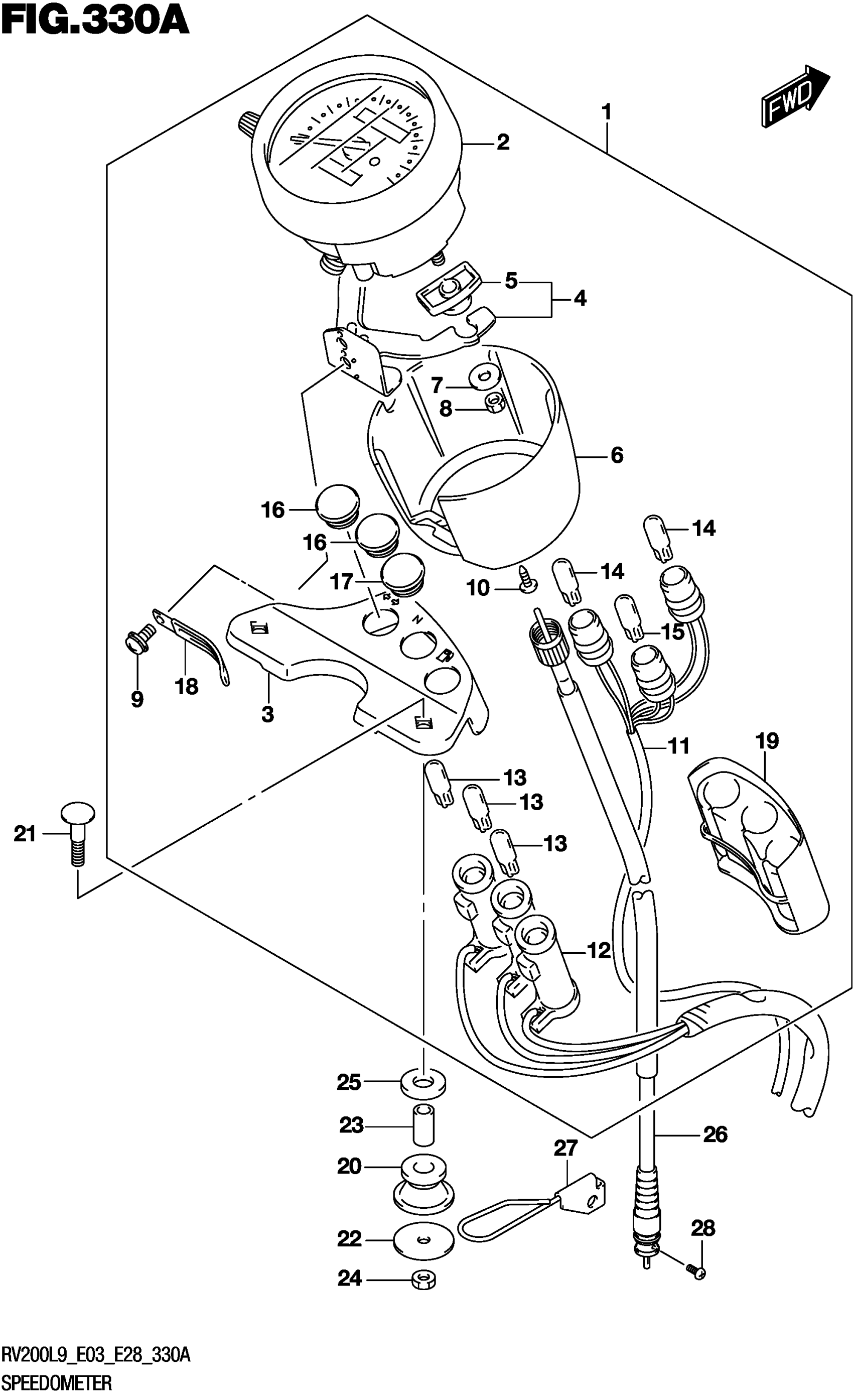

2019 Suzuki RV200L9 Speedometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSY

34100-13GL0

—
Out of stock

2

.SPEEDOMETER (MILE)

34110-13GE0

1

$319.27

In stock

3

.BRACKET ASSY

34950-13GK0

1

$109.35

In stock

4

BRACKET, SPEEDOMETER

34952-13G10

1

$28.01

In stock

5

.DAMPER

34191-13G10

2
Out of stock

6

COVER

34111-13G10

1

$50.83

In stock

7

WASHER (5.2X16X1.0)

09160-05013

2
Out of stock

8

2

$1.97

In stock

9

SCREW

02112-1612B

2
Out of stock

10

SCREW

03541-1412A

1

$2.32

In stock

11

CORD ASSY

34173-13GA0

1
Out of stock

12

CORD ASSY

34170-13GA0

1
Out of stock

13

3

$2.13

In stock

13

1

$2.13

In stock

14

2

$3.32

In stock

14

1

$3.32

In stock

15

1

$3.71

In stock

16

2

$6.52

In stock

17

LENS (ORANGE) | FOR HIGH BEAM

36331-13GA0

1
Out of stock

18

1

$1.86

In stock

19

COVER

36383-13G00

1
Out of stock

20

CUSHION

34956-31001

2

$4.47

In stock

21

BOLT (6X30)

09107-06003

2

$2.92

In stock

22

WASHER (6.5X28X1.6)

09160-06136

2
Out of stock

23

SPACER (6.5X10X15.7)

09180-06294

2

$4.28

In stock

24

NUT

08310-0006B

2
Out of stock

25

WASHER (6.5X20X3.2)

09160-06133

2
Out of stock

26

1

$45.32

In stock

27

GUIDE, SPEEDOMETER CABLE

34939-13G00

1
Out of stock

28

.SCREW

02112-0516B

1
Out of stock
