2019 Suzuki RV200L9 Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2019 Suzuki RV200L9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

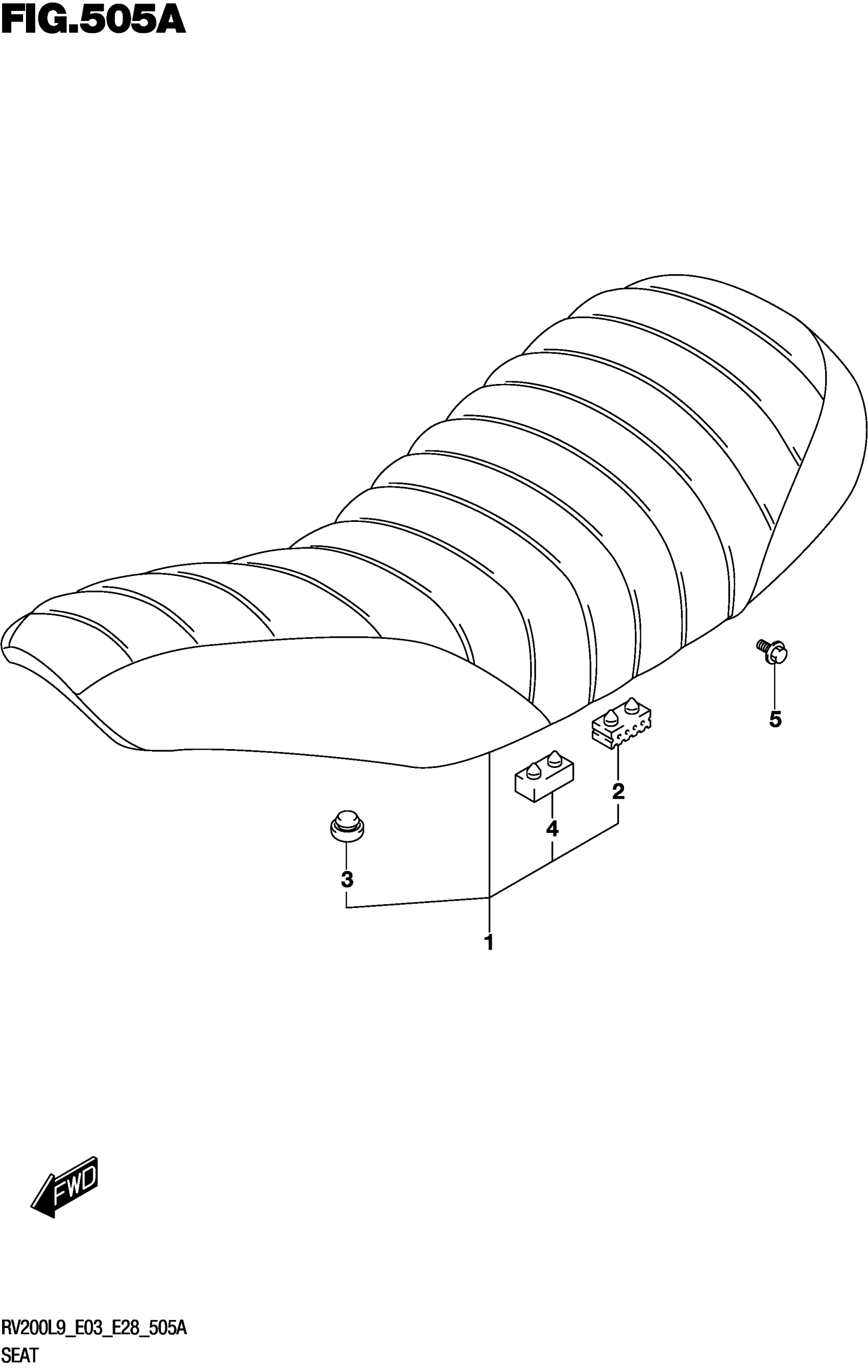

2019 Suzuki RV200L9 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1-1

SEAT ASSY | FOR YSF,YUK This part replaces 45100-13G61-ECT.

45100-13G62-ECT

1
Out of stock

1-2

SEAT ASSY | FOR YUD This part replaces 45100-13G61-GDP.

45100-13G62-GDP

1
Out of stock

2

.CUSHION,SEAT (40X20X15)

45149-31300

4
Out of stock

3

CUSHION

09329-10001

2

$2.56

In stock

4

.CUSHION

09321-08006

2
Out of stock

5

BOLT, PLATE

09118-06110

2

$4.53

In stock
