2019 Suzuki RV200L9 Frame Cover Diagram

← All diagrams

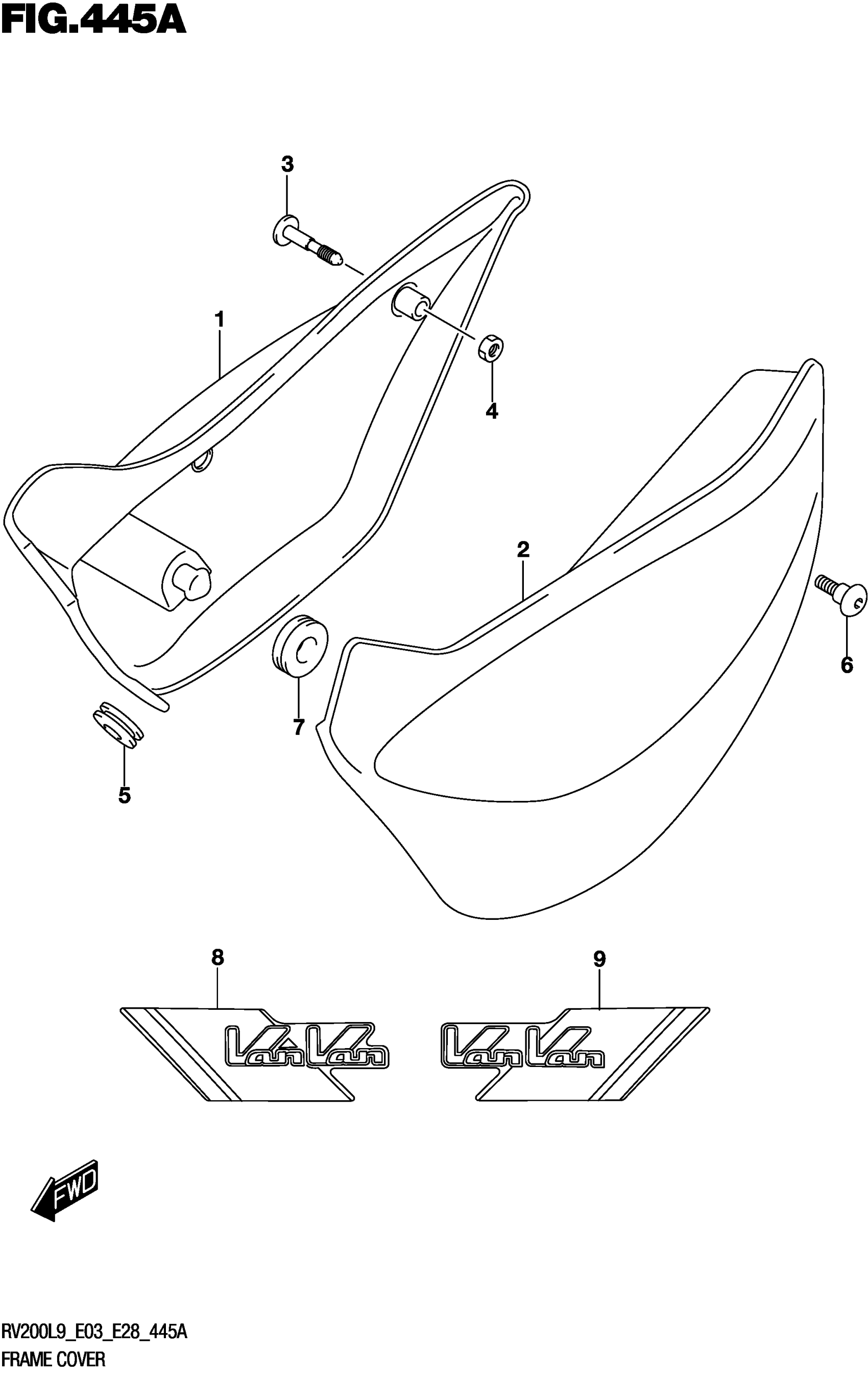

Find the part on the Frame Cover diagram for your 2019 Suzuki RV200L9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Suzuki RV200L9 Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1-1

COVER, FRAME RH (BLUE)

47111-13G02-YSF

—
Out of stock

1-2

COVER, FRAME RH (GRAY)

47111-13G02-YUD

1
Out of stock

1-3

COVER, FRAME RH (ORANGE)

47111-13G02-YUK

1
Out of stock

2-1

COVER, FRAME LH (BLUE)

47211-13G02-YSF

—
Out of stock

2-2

COVER, FRAME LH (GRAY)

47211-13G02-YUD

1
Out of stock

2-3

COVER, FRAME LH (ORANGE)

47211-13G02-YUK

1
Out of stock

3

SCREW (6X33)

09139-06123

1
Out of stock

4

NUT

08310-0006B

1
Out of stock

5

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

1
Out of stock

6

SCREW, FRONT

09139-06107

1
Out of stock

7

CUSHION (8X26X7)

09320-08028

3
Out of stock

8-1

EMBLEM, FRAME COVER, RH | FOR YSF

68131-13G50-BTF

—
Out of stock

8-2

EMBLEM, FRAME COVER, RH | FOR YUK

68131-13G50-BTJ

2
Out of stock

8-3

EMBLEM, FRAME COVER, RH | FOR YUD

68131-13G50-BTK

2
Out of stock

9-1

EMBLEM, FRAME COVER, LH | FOR YSF

68141-13G50-BTF

—
Out of stock

9-2

EMBLEM, FRAME COVER, LH | FOR YUK

68141-13G50-BTJ

2
Out of stock

9-3

EMBLEM, FRAME COVER, LH | FOR YUD

68141-13G50-BTK

2
Out of stock
