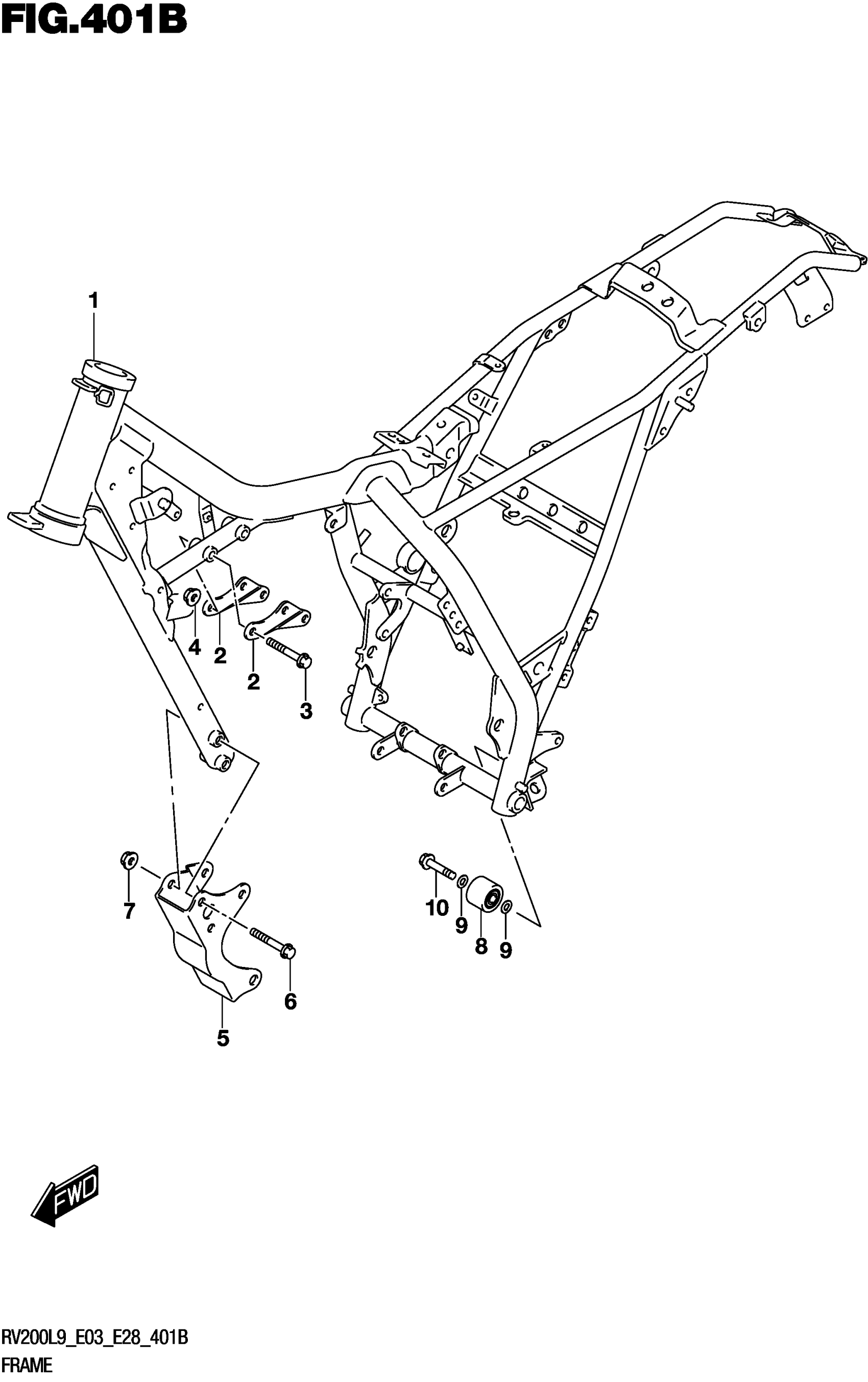

Suzuki RV200L9 (2019) FRAME (RV200L9 E28) Diagram

#

Description
Price

1

FRAME (BLACK)

41100-13G60-019

Unavailable

2

PLATE, ENG MTG UPR

41991-13G00

Unavailable

3

BOLT (8X53)

09103-08332

$5.00

4

NUT

08319-3108A

$2.38

5

PLATE, ENGINE MOUNT FR (BLACK

41992-13G00-019

Unavailable

6

BOLT (8X70) This part replaces 09103-08293.

09103-08569

$5.32

7

NUT

08319-3108A

$2.38

8

ROLLER,CHAIN

43910-37F00

$77.40

9

SHIM (8X12X1)

09181-08111

$2.01

10

BOLT (8X41)

09103-08083

$3.50
