2019 Suzuki RV200L9 Footrest Diagram

← All diagrams

Find the part on the Footrest diagram for your 2019 Suzuki RV200L9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

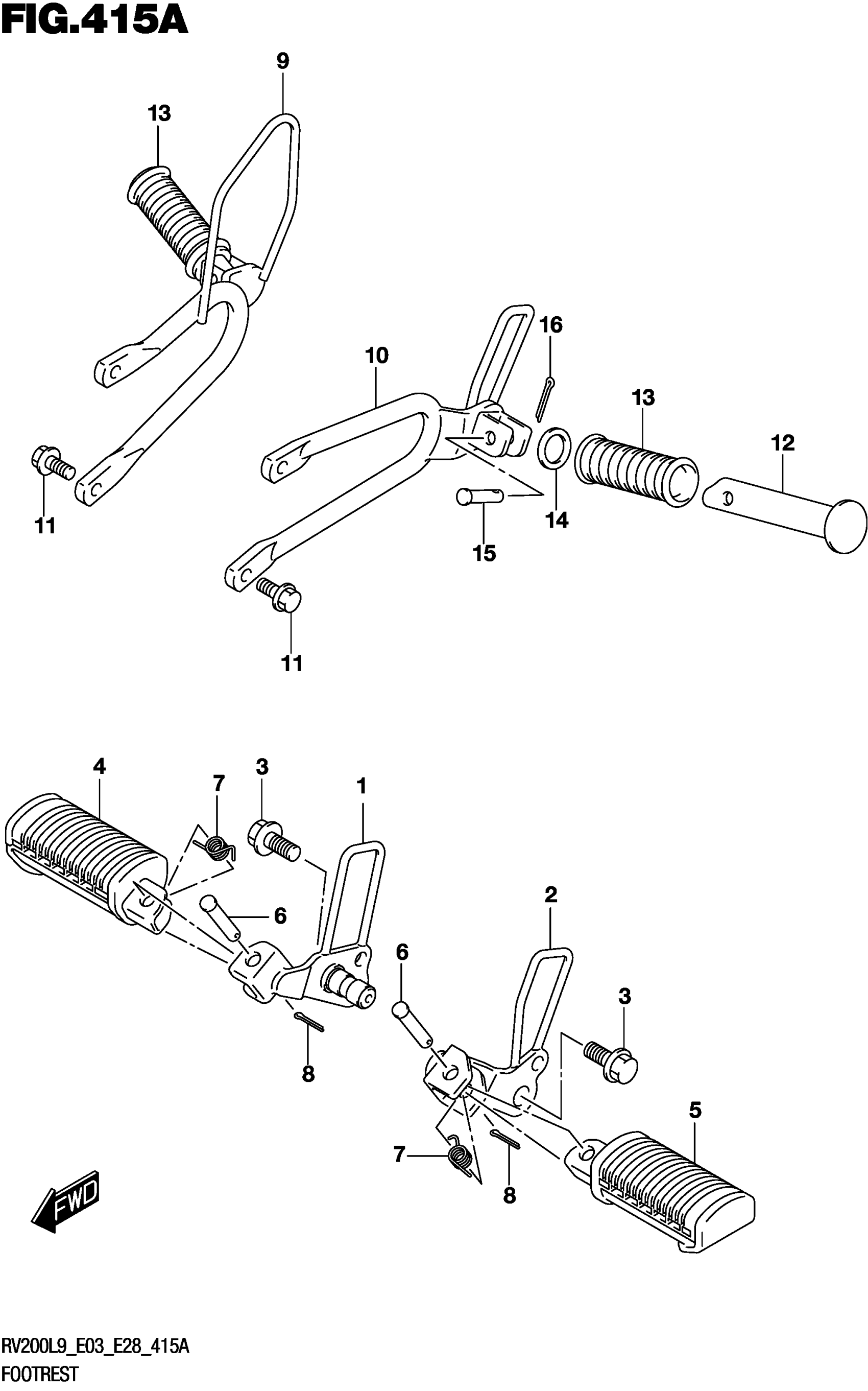

2019 Suzuki RV200L9 Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BAR, FR FOOTREST RH

43510-13G10

1
Out of stock

2

BAR, FR FOOTREST LH

43520-13G10

1
Out of stock

3

BOLT (12X25)

09103-12047

2
Out of stock

4

RUBBER,PILLION This part replaces 43550-37301.

43550-37310

1
Out of stock

5

1

$32.87

In stock

6

PIN

09200-08002

2
Out of stock

7

SPRING

09448-14012

2
Out of stock

8

PIN

04111-2015A

2
Out of stock

9

BRACKET, PILLION RH

43650-13G00

1

$76.82

In stock

10

BRACKET, PILLION LH

43750-13G00

1

$75.02

In stock

11

BOLT

01550-0820B

4
Out of stock

12

BAR

43610-03001

2
Out of stock

13

RUBBER, PILLION FOOTREST

43612-03001

2
Out of stock

14

.WASHER (19.5X32X2)

09160-19024

2
Out of stock

15

PIN

09200-06033

2
Out of stock

16

CLIP

09385-06012

2
Out of stock
