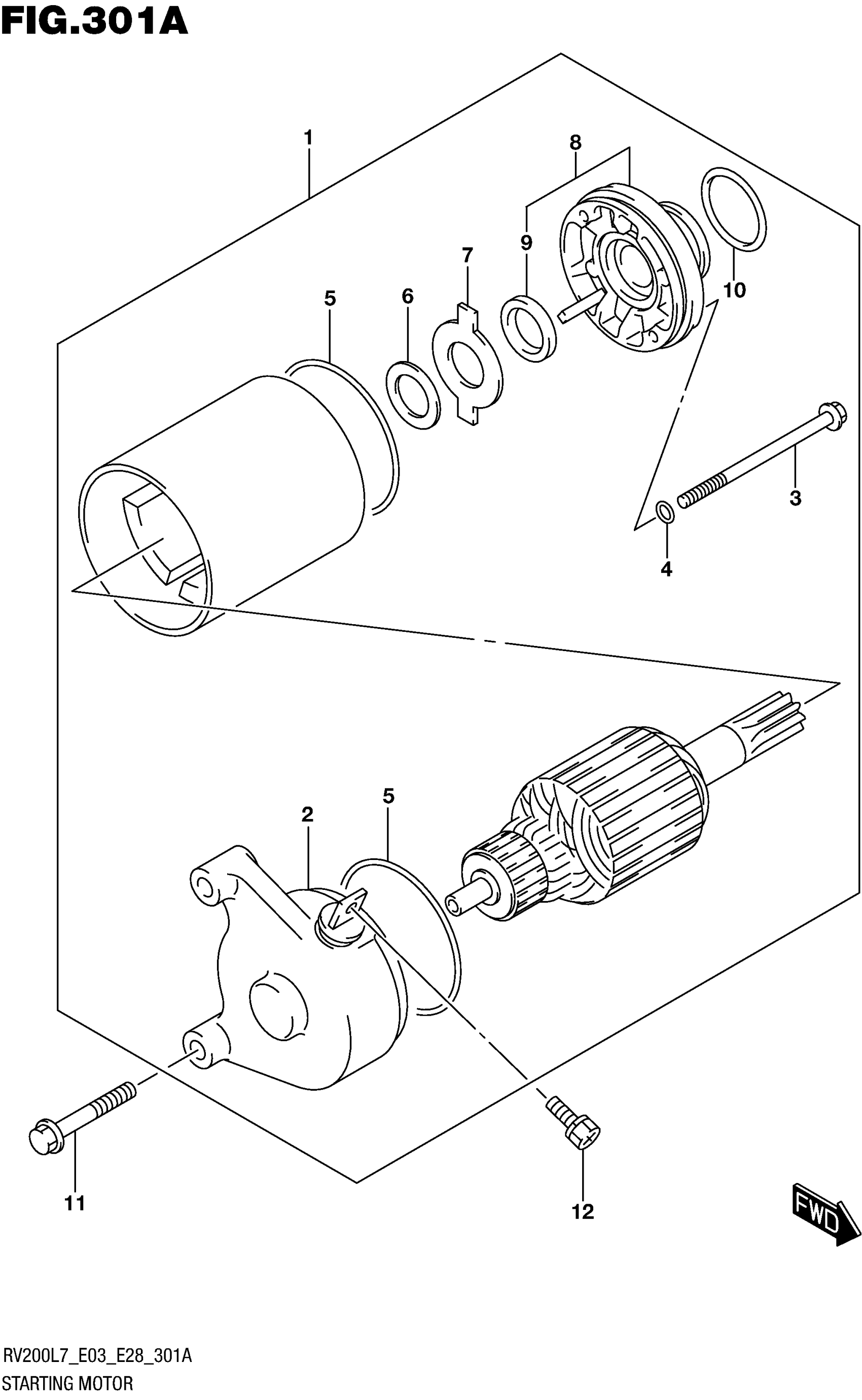

Suzuki RV200L7 (2017) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY, STARTING

31100-42A20

$742.08

2

.FRAME ASSY, COMMUTATOR END

31175-42A20

Unavailable

3

.BOLT

31281-08F00

Unavailable

4

.O RING

31156-08F00

$5.10

5

.O RING

31264-32C10

$16.03

6

.SHIM

31361-38300

Unavailable

7

.PLATE, LOCK

31361-32C10

Unavailable

8

.BRACKET

31150-08F00

Unavailable

9

..SEAL, OIL

31153-49210

$27.32

10

.O-RING (D:3,ID:24.5)

09280-24003

$1.55

11

BOLT

01547-0630A

$2.31

12

SCREW (5X8)

09137-05004

$2.50
