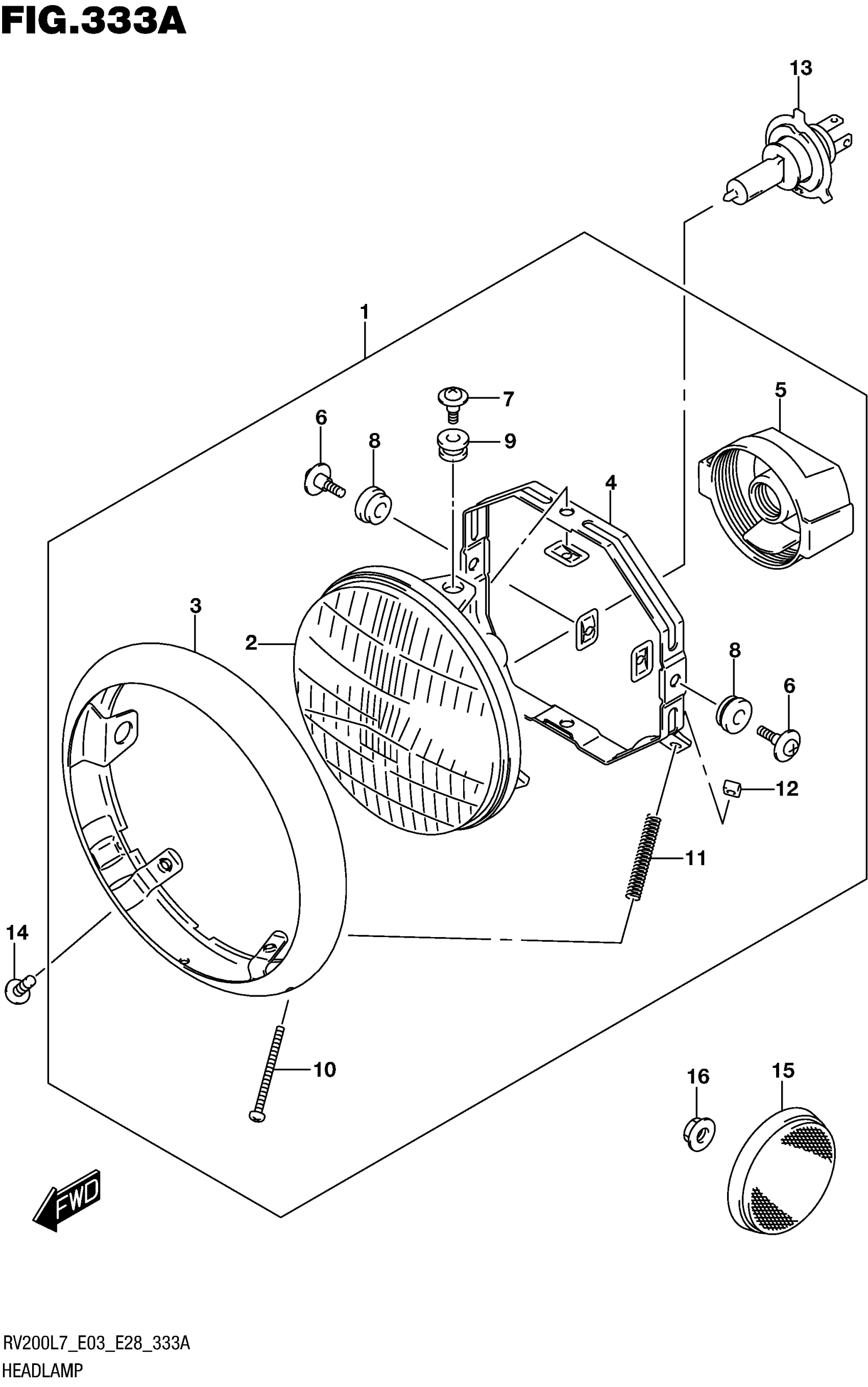

Suzuki RV200L7 (2017) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY This part replaces 35100-38AH0-999.

35100-38A62-999

$308.58

2

.UNIT, HEADLAMP

35121-38A60

$171.60

3

.RIM

35111-38A60

$54.45

4

.RING, MOUNTING

35130-38A00

$19.68

5

.COVER, SOCKET

35173-13E10

$27.95

6

.SCREW MOUNTING

35136-38A00

$4.53

7

.SCREW, MOUNTING

35136-38A60

Unavailable

8

.CUSHION

35139-45230

$2.25

9

.CUSHION

35139-38A60

$4.62

10

.SCREW, ADJUSTER (4X50)

35151-38A00

$4.10

11

.SPRING

35154-31300

$3.49

12

.NUT

35152-45600

$3.92

13

BULB (12V,60/55W)

09471-12060

$22.69

14

SCREW (5X12)

09139-05021

$1.49

15

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

$13.94

16

NUT

08316-1005B

$2.50
